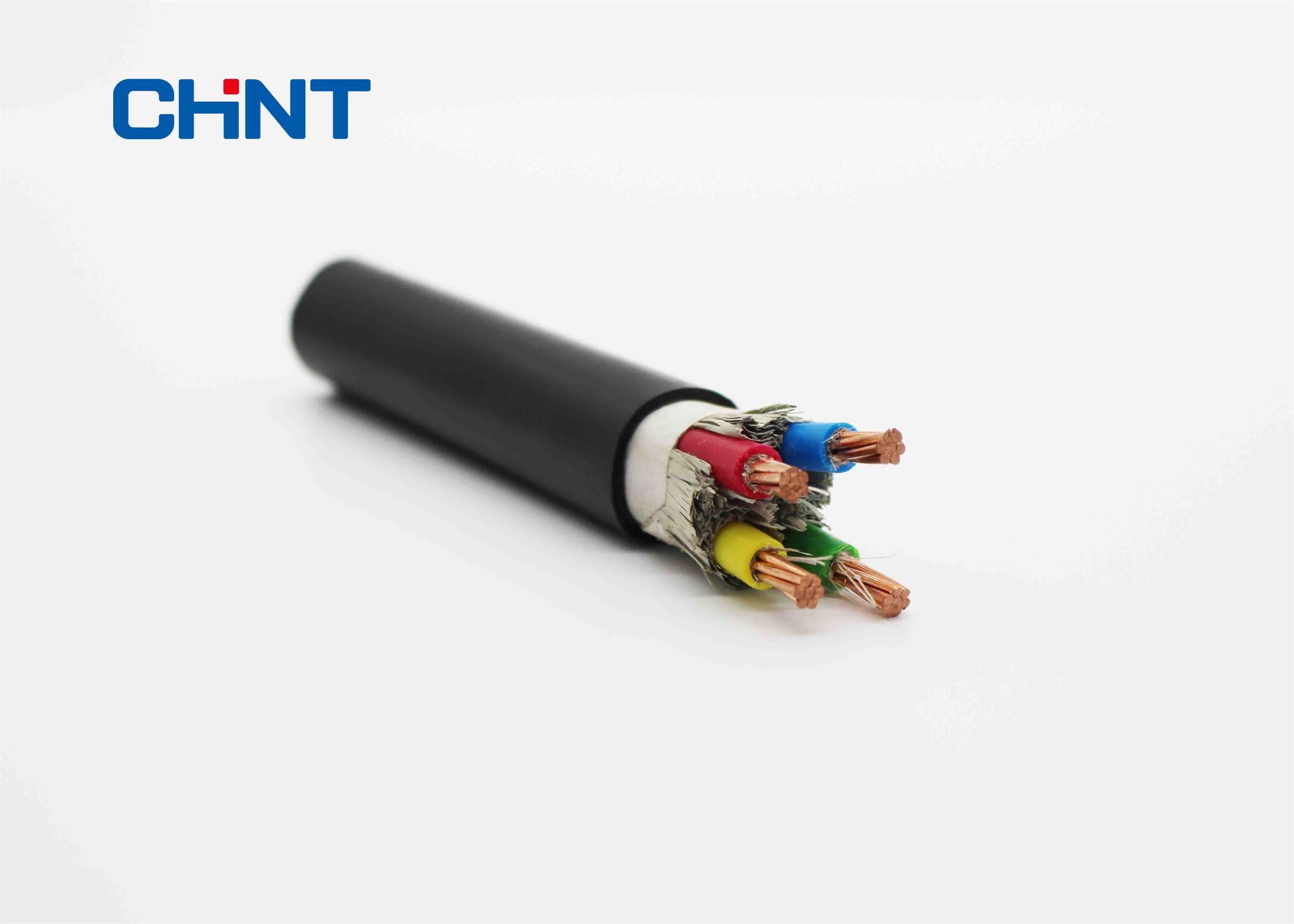

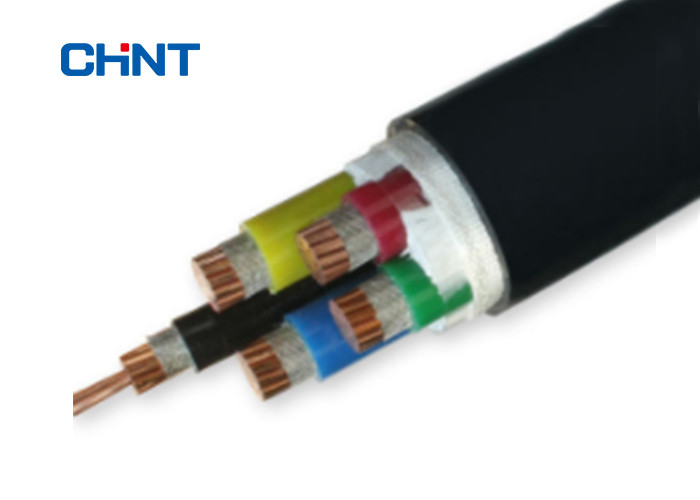

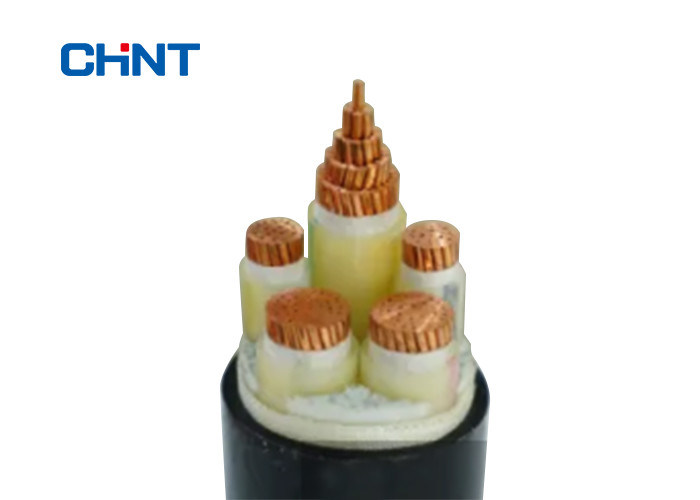

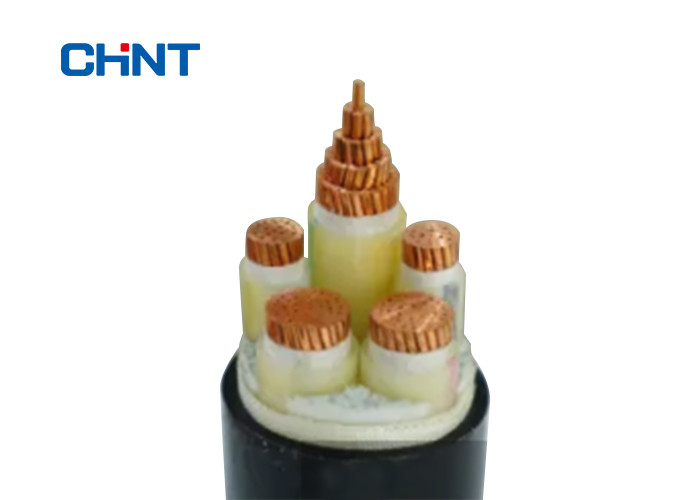

Low Voltage IEC 60331 Fire Resistant Cable 1- 5 Cores Excellent Electrical Properties

Basic Information
Place of Origin: CHINA
Brand Name: CHINT
Certification: CCC/SGS
Model Number: N-YJV
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 100M/Roll Wooden drum/iorn drum
Supply Ability: 500KM/Month
Core: 1/2/3/4/5/2+1/3+1/4+4/3+2 Color: Red Yellow Green Blue Black Or G/Y
Sheath: PVC Or LSOH Standard: IEC 60331
Marking: Embossing Or Printing Insulation: XLPE
High Light:

fire resistant cable

,

flame resistant cable

1 Core - 5 Cores Copper Fire Resistant Cable IEC Standard LV FRC cable



Product Description

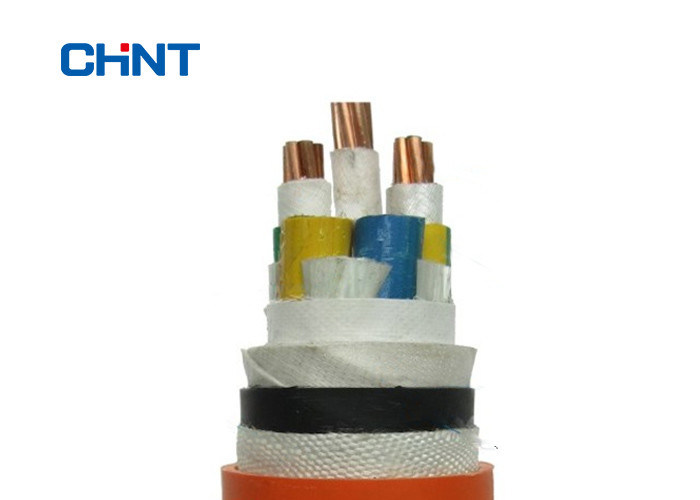

Construction



Application:

Crosslinked polyethylene insulated power cables have excellent thermal-mechanical properties, excellent electrical properties and chemical corrosion resistance. They also have the advantages of simple structure, light weight and no drop restriction. They are widely used in urban power grids, mines and factories.
The insulation-crosslinked polyethylene of cable is a kind of crosslinked polyethylene with linear molecular structure transformed into three-dimensional network structure by chemical and physical methods, which greatly improves the thermomechanical properties of polyethylene and consequently maintains excellent electrical properties.



Standards:

International: IEC 60502, IEC 60228, IEC 60332, IEC 60754

China: GB∕T 12706.1-2008, GB∕T 19666-2005

Other standards such as BS,VDE and ICEA upon request



Conductor

Plain annealed copper solid or stranded (class 1 or 2) conductor complying with BS EN 60228



Refractory layer

Double-layer phlogopite belt



Insulation

90°C cross linked XLPE insulation complying with BS7655 Type GP8



Sheath

PVC. Colour – Black. Other colours are available to special order



Technical data

Rated voltage: 0.6-KV

Max. Conductor Temp.: normal (90°C), short circuit no more than 5 s (the highest temperature of conductor shall no more than 250°C )

Min. Ambient Temp.:The cable shall be pre heated if the ambient temperature is below 0°C

Min. Bending Radius: single core cable 20(d+D)±5%

Multi-core cable 15(d+D)±5%



Technical Specifications



Nom. Cross-section of conductor Strands No./Dia. Of Conductor

Refractory

layer

Thickness

Insulation

Thickness

Sheath Thickness

Approx.

O.D.

Approx. Max. D.C Resistance of Conductor (20 ℃) Testing Voltage A.C Current Rating
Weight In air (A) In soil(A)
1×1.5 1/1.38 0.28 0.7 1.4 5.8 47 12.1 3.5 26 33
1×2.5 1/1.76 0.28 0.7 1.4 6.2 59 7.56 3.5 34 43
1×4 1/2.23 0.28 0.7 1.4 6.6 76 4.61 3.5 44 56
1×6 1/2.74 0.28 0.7 1.4 7.2 99 3.08 3.5 56 70
1×10 7/1.38 0.28 0.7 1.4 8.4 143 1.83 3.5 77 94
1×16 7/1.71 0.28 0.7 1.4 9.4 202 1.15 3.5 100 120
1×25 7/2.12 0.28 0.9 1.4 11.1 301 0.727 3.5 130 155
1×35 7/2.48 0.28 0.9 1.4 11.9 395 0.524 3.5 160 185
1×50 10/2.56 0.28 1.0 1.4 13.5 527 0.387 3.5 195 220
1×70 14/2.56 0.28 1.1 1.4 15.4 731 0.268 3.5 245 270
1×95 19/2.56 0.28 1.1 1.5 17.2 987 0.193 3.5 300 320
1×120 24/2.56 0.28 1.2 1.5 18.9 1,223 0.153 3.5 349 365
1×150 30/2.56 0.28 1.4 1.6 20.9 1,502 0.124 3.5 400 410
1×185 37/2.56 0.28 1.6 1.6 23.1 1,879 0.0991 3.5 465 465
1×240 48/2.58 0.28 1.7 1.7 25.7 2,439 0.0754 3.5 550 540
1×300 60/2.58 0.28 1.8 1.8 28.2 3,023 0.0601 3.5 635 610
1×400 60/2.93 0.28 2.0 1.9 31.8 3,901 0.047 3.5 745 695
1×500 60/3.33 0.28 2.2 2 35.9 4,893 0.0366 3.5 860 780
1×630 60/3.76 0.28 2.4 2.2 40.1 6,246 0.0283 3.5 990 880
2×1.5 1/1.38 0.28 0.7 1.8 9.6 119 12.1 3.5 20 31
2×2.5 1/1.76 0.28 0.7 1.8 10.4 148 7.56 3.5 27 41
2×4 1/2.23 0.28 0.7 1.8 11.3 189 4.61 3.5 35 53
2×6 1/2.74 0.28 0.7 1.8 12.4 245 3.08 3.5 45 66
2×10 7/1.38 0.28 0.7 1.8 14.8 355 1.83 3.5 63 90
2×16 7/1.71 0.28 0.7 1.8 16.8 496 1.15 3.5 84 117
2×25 7/2.12 0.28 0.9 1.8 20.2 736 0.727 3.5 113 151
2×35 7/2.48 0.28 0.9 1.8 21.7 947 0.524 3.5 139 181
2×50 10/2.56 0.28 1 1.8 25.0 1,263 0.387 3.5 161 210
2×70 14/2.56 0.28 1.1 1.8 28.8 1,741 0.268 3.5 204 257
2×95 19/2.56 0.28 1.1 2 32.4 2,334 0.193 3.5 252 310
2×120 24/2.56 0.28 1.2 2.1 36.0 2,901 0.153 3.5 291 351
2×150 30/2.56 0.28 1.4 2.2 39.8 3,554 0.124 3.5 333 393
2×185 37/2.56 0.28 1.6 2.3 44.4 4,456 0.0991 3.5 385 445
2×240 48/2.58 0.28 1.7 2.5 49.6 5,794 0.0754 3.5 457 516
2×300 60/2.58 0.28 1.8 2.7 54.6 7,156 0.0601 3.5 527 583
3×1.5 1/1.38 0.28 0.7 1.8 10.0 140 12.1 3.5 20 31
3×2.5 1/1.76 0.28 0.7 1.8 10.9 178 7.56 3.5 27 41
3×4 1/2.23 0.28 0.7 1.8 11.9 233 4.61 3.5 35 53
3×6 1/2.74 0.28 0.7 1.8 13.1 308 3.08 3.5 45 66
3×10 7/1.38 0.28 0.7 1.8 15.7 454 1.83 3.5 63 90
3×16 7/1.71 0.28 0.7 1.8 17.9 647 1.15 3.5 84 117
3×25 7/2.12 0.28 0.9 1.8 21.5 971 0.727 3.5 113 151
3×35 7/2.48 0.28 0.9 1.8 23.1 1,270 0.524 3.5 139 181
3×50 10/2.56 0.28 1 1.8 26.7 1,702 0.387 3.5 161 210
3×70 14/2.56 0.28 1.1 1.9 31.0 2,379 0.268 3.5 204 257
3×95 19/2.56 0.28 1.1 2 34.7 3,191 0.193 3.5 252 310
3×120 24/2.56 0.28 1.2 2.1 38.5 3,975 0.153 3.5 291 351
3×150 30/2.56 0.28 1.4 2.3 42.8 4,896 0.124 3.5 333 393
3×185 37/2.56 0.28 1.6 2.4 47.8 6,187 0.0991 3.5 385 445
3×240 48/2.58 0.28 1.7 2.6 53.4 8,007 0.0754 3.5 457 516
3×300 60/2.58 0.28 1.8 2.8 58.7 9,911 0.0601 3.5 527 583
4×1.5 1/1.38 0.28 0.7 1.8 10.8 166 12.1 3.5 20 31
4×2.5 1/1.76 0.28 0.7 1.8 11.8 216 7.56 3.5 27 41
4×4 1/2.23 0.28 0.7 1.8 12.9 286 4.61 3.5 35 53
4×6 1/2.74 0.28 0.7 1.8 14.3 382 3.08 3.5 45 66
4×10 7/1.38 0.28 0.7 1.8 17.1 570 1.83 3.5 63 90
4×16 7/1.71 0.28 0.7 1.8 19.6 819 1.15 3.5 84 117
4×25 7/2.12 0.28 0.9 1.8 23.7 1,238 0.727 3.5 113 151
4×35 7/2.48 0.28 0.9 1.8 25.5 1,631 0.524 3.5 139 181
4×50 10/2.56 0.28 1.0 1.9 29.7 2,205 0.387 3.5 161 210
4×70 14/2.56 0.28 1.1 2 34.5 3,088 0.268 3.5 204 257
4×95 19/2.56 0.28 1.1 2.1 38.6 4,151 0.193 3.5 252 310
4×120 24/2.56 0.28 1.2 2.3 43.1 5,195 0.153 3.5 291 351
4×150 30/2.56 0.28 1.4 2.4 47.6 6,411 0.124 3.5 333 393
4×185 37/2.56 0.28 1.6 2.6 53.4 8,077 0.0991 3.5 385 445
4×240 48/2.58 0.28 1.7 2.8 59.6 10,460 0.0754 3.5 457 516
4×300 60/2.58 0.28 1.8 3 65.5 12,950 0.0601 3.5 527 583
5×1.5 1/1.38 0.28 0.7 1.8 11.6 195 12.1 3.5 20 31
5×2.5 1/1.76 0.28 0.7 1.8 12.7 256 7.56 3.5 27 41
5×4 1/2.23 0.28 0.7 1.8 13.9 343 4.61 3.5 35 53
5×6 1/2.74 0.28 0.7 1.8 15.5 460 3.08 3.5 45 66
5×10 7/1.38 0.28 0.7 1.8 18.7 691 1.83 3.5 63 90
5×16 7/1.71 0.28 0.7 1.8 21.4 1,000 1.15 3.5 84 117
5×25 7/2.12 0.28 0.9 1.8 26.0 1,518 0.727 3.5 113 151
5×35 7/2.48 0.28 0.9 1.8 28.0 2,006 0.524 3.5 139 181
5×50 10/2.56 0.28 1.0 2 32.9 2,731 0.387 3.5 161 210
5×70 14/2.56 0.28 1.1 2.1 38.2 3,828 0.268 3.5 204 257
5×95 19/2.56 0.28 1.1 2.3 42.9 5,171 0.193 3.5 252 310
5×120 24/2.56 0.28 1.2 2.4 47.7 6,484 0.153 3.5 291 351
5×150 30/2.56 0.28 1.4 2.6 53.0 7,976 0.124 3.5 333 393
5×185 37/2.56 0.28 1.6 2.8 59.3 10,047 0.0991 3.5 385 445
5×240 48/2.58 0.28 1.7 3 66.2 13,011 0.0754 3.5 457 516
5×300 60/2.58 0.28 1.8 3.2 72.8 16,109 0.0601 3.5 527 583
3×2.5+1×1.5 1/1.76 0.28 0.7 1.8 11.5 203 7.56 3.5 27 41
3×4+1×2.5 1/2.23 0.28 0.7 1.8 12.6 269 4.61 3.5 35 53
3×6+1×4 1/2.74 0.28 0.7 1.8 13.9 358 3.08 3.5 45 66
3×10+1×6 7/1.38 0.28 0.7 1.8 16.4 522 1.83 3.5 63 90
3×16+1×10 7/1.71 0.28 0.7 1.8 19.0 756 1.15 3.5 84 117
3×25+1×16 7/2.12 0.28 0.9 1.8 22.7 1,131 0.727 3.5 113 151
3×35+1×16 7/2.48 0.28 0.9 1.8 24.0 1,423 0.524 3.5 139 181
3×50+1×25 10/2.56 0.28 1.0 1.8 28.0 1,948 0.387 3.5 161 210
3×70+1×35 14/2.56 0.28 1.1 1.9 32.1 2,705 0.268 3.5 204 257
3×95+1×50 19/2.56 0.28 1.1 2.1 36.4 3,662 0.193 3.5 252 310
3×120+1×70 24/2.56 0.28 1.2 2.2 40.9 4,653 0.153 3.5 291 351
3×150+1×70 30/2.56 0.28 1.4 2.3 44.3 5,527 0.124 3.5 333 393
3×185+1×95 37/2.56 0.28 1.6 2.5 49.7 7,078 0.0991 3.5 385 445
3×240+1×120 48/2.58 0.28 1.7 2.7 55.5 9,121 0.0754 3.5 457 516
3×300+1×150 60/2.58 0.28 1.8 2.9 61.2 11,284 0.0601 3.5 527 583
3×2.5+2×1.5 1/1.76 0.28 0.7 1.8 12.3 231 7.56 3.5 27 41
3×4+2×2.5 1/2.23 0.28 0.7 1.8 13.5 308 4.61 3.5 35 53
3×6+2×4 1/2.74 0.28 0.7 1.8 14.9 413 3.08 3.5 45 66
3×10+2×6 7/1.38 0.28 0.7 1.8 17.4 597 1.83 3.5 63 90
3×16+2×10 7/1.71 0.28 0.7 1.8 20.3 875 1.15 3.5 84 117
3×25+2×16 7/2.12 0.28 0.9 1.8 24.2 1,307 0.727 3.5 113 151
3×35+2×16 7/2.48 0.28 0.9 1.8 25.4 1,596 0.524 3.5 139 181
3×50+2×25 10/2.56 0.28 1.0 1.9 30.1 2,235 0.387 3.5 161 210
3×70+2×35 14/2.56 0.28 1.1 2 34.2 3,084 0.268 3.5 204 257
3×95+2×50 19/2.56 0.28 1.1 2.2 39.0 4,180 0.193 3.5 252 310
3×120+2×70 24/2.56 0.28 1.2 2.3 44.0 5,386 0.153 3.5 291 351
3×150+2×70 30/2.56 0.28 1.4 2.4 47.1 6,290 0.124 3.5 333 393
3×185+2×95 37/2.56 0.28 1.6 2.6 52.8 8,062 0.0991 3.5 385 445
3×240+2×120 48/2.58 0.28 1.7 2.8 58.9 10,350 0.0754 3.5 457 516
3×300+2×150 60/2.58 0.28 1.8 3 65.0 12,798 0.0601 3.5 527 583
4×2.5+1×1.5 1/1.76 0.28 0.7 1.8 12.5 243 7.56 3.5 27 41
4×4+1×2.5 1/2.23 0.28 0.7 1.8 13.7 325 4.61 3.5 35 53
4×6+1×4 1/2.74 0.28 0.7 1.8 15.2 437 3.08 3.5 45 66
4×10+1×6 7/1.38 0.28 0.7 1.8 18.1 644 1.83 3.5 63 90
4×16+1×10 7/1.71 0.28 0.7 1.8 20.9 937 1.15 3.5 84 117
4×25+1×16 7/2.12 0.28 0.9 1.8 25.1 1,412 0.727 3.5 113 151
4×35+1×16 7/2.48 0.28 0.9 1.8 26.7 1,800 0.524 3.5 139 181
4×50+1×25 10/2.56 0.28 1.0 1.9 31.4 2,474 0.387 3.5 161 210
4×70+1×35 14/2.56 0.28 1.1 2.1 36.3 3,462 0.268 3.5 204 257
4×95+1×50 19/2.56 0.28 1.1 2.2 40.9 4,663 0.193 3.5 252 310
4×120+1×70 24/2.56 0.28 1.2 2.4 45.9 5,961 0.153 3.5 291 351
4×150+1×70 30/2.56 0.28 1.4 2.5 50.0 7,127 0.124 3.5 333 393
4×185+1×95 37/2.56 0.28 1.6 2.7 56.1 9,047 0.0991 3.5 385 445
4×240+1×120 48/2.58 0.28 1.7 2.9 62.6 11,671 0.0754 3.5 457 516
4×300+1×150 60/2.58 0.28 1.8 3.1 68.9 14,442 0.0601 3.5 527

583



PACKING AND SHIPPING

We are capable of meeting the strictest delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.

Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self-adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.
