Medium Voltage Armoured Power Cable 15KV 3x95 SQMM Stranded Bare Copper

Basic Information
Place of Origin: CHINA
Brand Name: CHINT
Certification: CCC/KEMA/SGS
Model Number: YJV22
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: wooden/iorn drum
Supply Ability: 500KM/Month
Conductor: Bare Copper Standard: IEC60502.2
Type: Medium Voltage Color: Red Yellow Green
Inner Sheath: PVC Material Port: Shanghai
High Light:

armoured electrical cable

,

electrical power cable

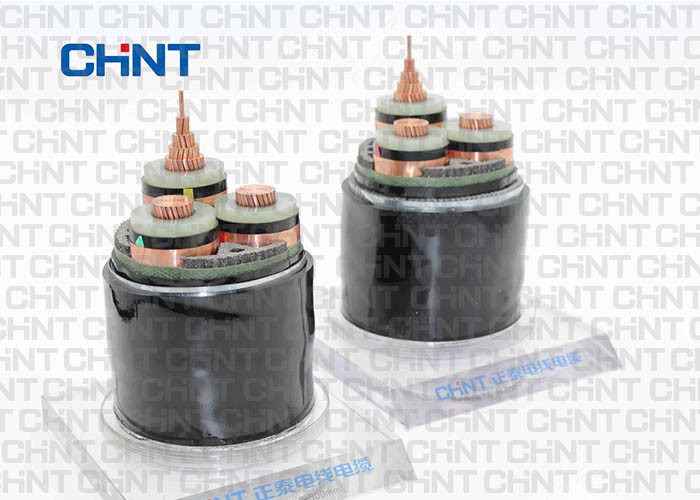

Medium Voltage Steel tape Armoured Cable 15KV 3x95 SQMM Stranded Bare Copper



Detailed Product Description



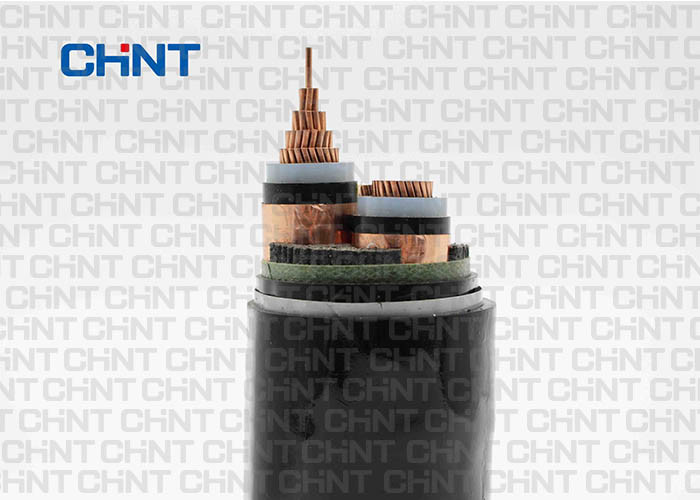

Construction

Conductor : Compact stranded copper conductor, Cl.2 as per IEC 60228

Conductor Screen: Semi-conductor

Insulation : XLPE(cross-linked polyethylene) rated at 90 ℃

Insulation Screen: Semi-conductor

Screen : Copper tape

Interlining: PVC type ST2 to IEC 60502, black

Armouring: STA(Steel-Tape Armouring)

Sheath : PVC type ST2 to IEC 60502, black



Standards:

International: IEC 60502, IEC 60228,

China: GB∕T 12706.2-2008,

Other standards such as BS,VDE and ICEA upon request



Applications

Used for power transmission and distribution line with voltage rated at 35kV and below.

Compared with PVC Insulated Power Cable, xlpe power cable boasts not only characteristics of excellent electricity, mechanism, heat and aging-resistant, environment stress-resistant and chemical corrosion-resistant, but also simple structure, light weight, no restriction by laying drop, and high temperature allowance for long-term working.



Technical data

Rated voltage: 8.7/10 kV 8.7/15kV

Maximum Conductor Temperature: under normal (90 ℃), emergency (130℃) or short circuit no more than 5 s (250℃) conditions.

Min. Ambient Temp.: The cable shall be pre heated if the ambient temperature is below 0℃

Min. Bending Radius: single core cable 20(d+D)±5%

Multi-core cable 15(d+D)±5%



Certificates

CE, SGS, KEMA and more others at request



Technical Specifications



Nom. Cross-section of conductor Strands No./Dia. Of Conductor Insulation Thickness of Copper Strip Thickness of steel tape Sheath Thickness Approx. O.D. Approx. Max. D.C Resistance of Conductor (20 ℃) Testing Voltage A.C Current Rating
Weight In air (A) In soil(A)
1×25 7/2.17+0.01 4.5 0.12 0.2 1.8 26.1 964 0.727 35 165 160
1×35 7/2.56+0.01 4.5 0.12 0.2 1.8 27.1 1093 0.524 35 205 190
1×50 19/1.86+0.01 4.5 0.12 0.2 1.8 28.4 1259 0.387 35 245 225
1×70 14/2.56+0.01 4.5 0.12 0.2 1.9 30.3 1527 0.268 35 305 275
1×95 19/2.56+0.02 4.5 0.12 0.2 1.9 31.9 1829 0.193 35 370 330
1×120 24/2.56+0.02 4.5 0.12 0.2 2.0 33.6 2122 0.153 35 430 375
1×150 30/2.56+0.01 4.5 0.12 0.2 2.0 35.0 2425 0.124 35 490 425
1×185 37/2.56+0.02 4.5 0.12 0.5 2.1 38.8 3228 0.0991 35 560 480
1×240 48/2.58+0.02 4.5 0.12 0.5 2.2 41.2 3878 0.0754 35 665 555
1×300 60/2.58+0.02 4.5 0.12 0.5 2.3 43.6 4552 0.0601 35 765 630
1×400 60/2.93+0.02 4.5 0.12 0.5 2.4 46.9 5557 0.047 35 890 725
1×500 60/3.33+0.02 4.5 0.12 0.5 2.5 50.5 6683 0.0366 35 1030 825
1×630 60/3.76+0.02 4.5 0.12 0.5 2.6 54.1 8138 0.0283 35 1200 950
3×25 7/2.17+0.01 4.5 0.10 0.5 2.5 51.4 3386 0.727 35 120 125
3×35 7/2.56+0.01 4.5 0.10 0.5 2.6 53.8 3839 0.524 35 140 155
3×50 19/1.86+0.01 4.5 0.10 0.5 2.7 57.4 4465 0.387 35 165 180
3×70 14/2.56+0.01 4.5 0.10 0.5 2.8 61.3 5340 0.268 35 210 220
3×95 19/2.56+0.02 4.5 0.10 0.5 3.0 65.3 6409 0.193 35 255 265
3×120 24/2.56+0.02 4.5 0.10 0.5 3.1 69.0 7389 0.153 35 290 300
3×150 30/2.56+0.01 4.5 0.10 0.5 3.2 72.2 8408 0.124 35 330 340
3×185 37/2.56+0.02 4.5 0.10 0.5 3.3 76.5 9845 0.0991 35 375 380
3×240 48/2.58+0.02 4.5 0.10 0.5 3.5 81.8 11920 0.0754 35 435 435
3×300 60/2.58+0.02 4.5 0.10 0.8 3.7 88.3 14906 0.0601 35 493 485
3×400 60/2.93+0.02 4.5 0.10 0.8 3.9 95.2 18102 0.047 35 565 520


Ordering Advice

Rated Voltage

Application Standard: IEC/BS/UL/GB

Number of Cores

Conductor Size & Construction

Type of Insulation

Armored or unarmored. If armor, the armor type & material

The Requirement of Sheath

Length of Cable & Packing Requirement

Other Requirement



PACKING AND SHIPPING

All cable for exporting are well packed and protected by wooden drum or Wood and Steel Drum.

The packing material is depended on the weight and size of cable.

The good information, manufacture information, and the client's information is firmly printed on each size of drum.



After the well packed cable drums sent to Sea Port, they are loaded into 20 FT container or 40 FT container. All cable drum are firmly fixed by safety belt to make sure, no movement during the sea freight.

The size of the container is chosen according to weight of total loaded goods or as per the client's requirement.
