Class 1 / 2 Copper Conductor Four Core XLPE Insulated Power Cable

Basic Information
Place of Origin: CHINA
Brand Name: CHINT
Certification: KEMA/CE/SGS
Model Number: CU/XLPE/PVC POWER CABLE
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: iron with wooden or wood or iron
Supply Ability: 1000KM/Month
Name: XLPE Insulated Power Cable Core: Four Core
Standard: GB/T12706.1 Or IEC60502.1 Conductor Shape: Compacted Round Or Sector
Filler: PP Material Conductor: Class 1or 2
High Light:

Class 1 electrical power cable

,

Four Core xlpe dsta pvc cable

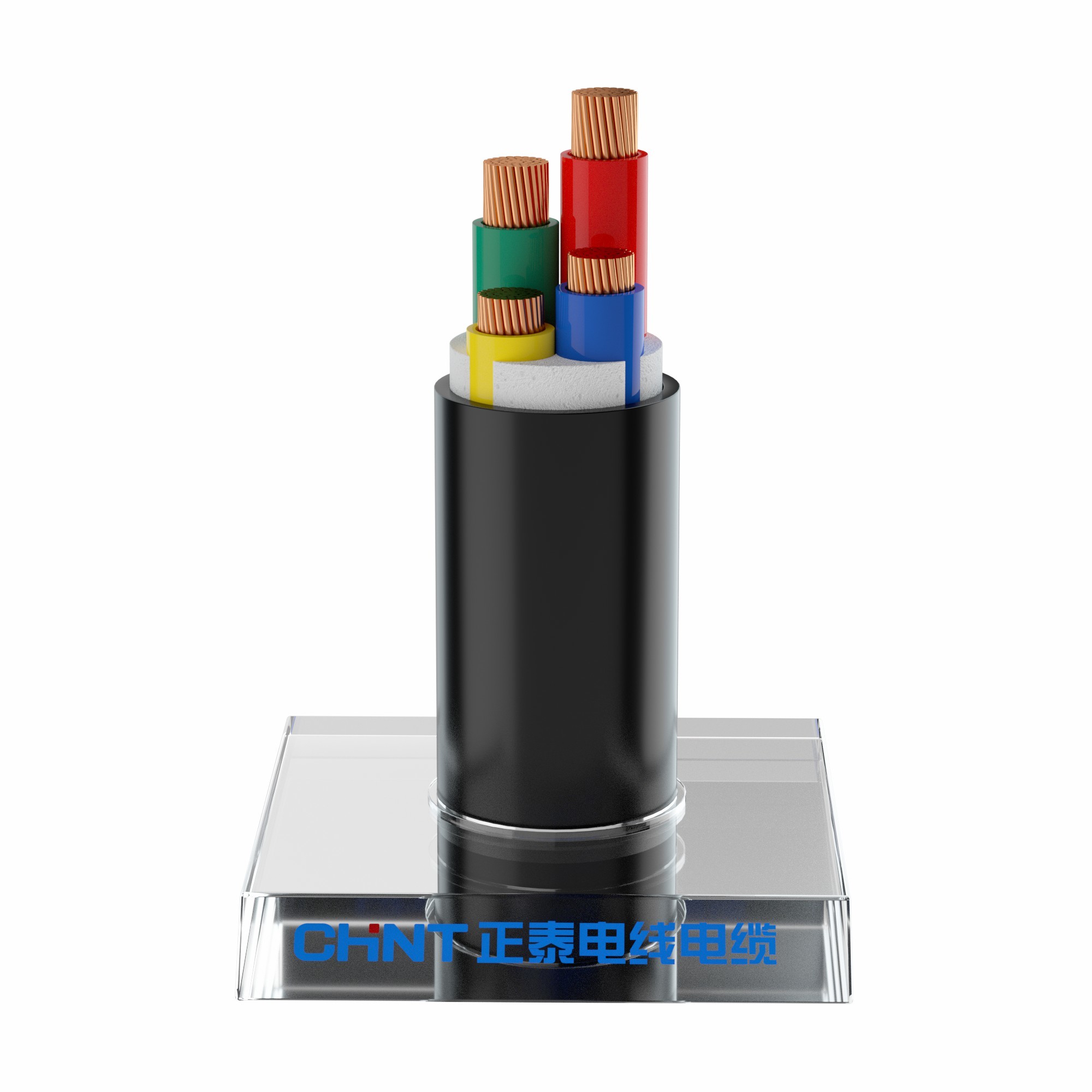

Class 1 / 2 Copper Conductor Four Core XLPE Insulated Power Cable



XLPE Insulated Power Cable Technical data



Rated voltage: 0.6/1kV

Maximum Conductor Temperature: under normal (90 ℃), emergency (130℃) or short circuit no more than 5 s (250℃) conditions.

Min. Ambient Temp.: The cable shall be pre heated if the ambient temperature is below 0℃

Min. Bending Radius: single core cable 20(d+D)±5%



Ordering Advice

Rated Voltage

Application Standard: IEC/BS/UL/GB

Number of Cores

Conductor Size & Construction

Type of Insulation

Armored or unarmored. If armor, the armor type & material

The Requirement of Sheath

Length of Cable & Packing Requirement

Other Requirement



Standards

International: IEC 60502.1, IEC 60228

China: GB/T 12706.1-2008

Other standards such as BS,VDE and ICEA upon request



Detailed Product Description

Conductor : Plain annealed copper solid or stranded (class 1 or 2) conductor complying with IEC 60228

Insulation : XLPE(cross-linked polyethylene) rated at 90 ℃

Sheath : PVC type ST2 , according to IEC 60502, black



Technical Specifications



Nom. Cross-section of conductor Strands No./Dia. Of Conductor Insulation Thickness Sheath Thickness Approx. O.D. Approx. Max. D.C Resistance of Conductor (20 ℃) Testing Voltage A.C Current Rating
Weight In air (A) In soil(A)
1×2.5 1/1.76 0.7 1.4 6.0 54 7.56 3.5 34 43
1×4 1/2.23 0.7 1.4 6.4 71 4.61 3.5 44 56
1×6 1/2.74 0.7 1.4 7.0 93 3.08 3.5 56 70
1×10 7/1.33 0.7 1.4 8.2 137 1.83 3.5 77 94
1×16 7/1.67 0.7 1.4 9.2 195 1.15 3.5 100 120
1×25 7/2.10 0.9 1.4 10.9 292 0.727 3.5 130 155
1×35 7/2.48 0.9 1.4 12.0 389 0.524 3.5 160 185
1×50 10/2.56 1.0 1.4 13.2 514 0.387 3.5 195 220
1×70 14/2.56 1.1 1.4 15.1 716 0.268 3.5 245 270
1×95 19/2.56 1.1 1.5 16.9 969 0.193 3.5 300 320
1×120 24/2.56 1.2 1.5 18.6 1,203 0.153 3.5 349 365
1×150 30/2.56 1.4 1.6 20.6 1,479 0.124 3.5 400 410
1×185 37/2.56 1.6 1.6 22.7 1,853 0.0991 3.5 465 465
1×240 48/2.58 1.7 1.7 25.3 2,408 0.0754 3.5 550 540
1×300 60/2.58 1.8 1.8 27.9 2,988 0.0601 3.5 635 610
1×400 60/2.93 2.0 1.9 31.5 3,860 0.047 3.5 745 695
1×500 60/3.33 2.2 2 35.2 4,840 0.0366 3.5 860 780
1×630 60/3.76 2.4 2.2 39.4 6,182 0.0283 3.5 990 880
2×1.5 1/1.38 0.7 1.8 9.5 106 12.1 3.5 20 31
2×2.5 1/1.76 0.7 1.8 10.3 133 7.56 3.5 27 41
2×4 1/2.23 0.7 1.8 11.2 172 4.61 3.5 35 53
2×6 1/2.74 0.7 1.8 12.2 221 3.08 3.5 45 66
2×10 7/1.33 0.7 1.8 14.7 328 1.83 3.5 63 90
2×16 7/1.67 0.7 1.8 16.7 460 1.15 3.5 84 117
2×25 7/2.10 0.9 1.8 20.1 683 0.727 3.5 113 151
2×35 7/2.48 0.9 1.8 22.4 900 0.524 3.5 139 181
2×50 10/2.56 1.0 1.8 19.0 1,037 0.387 3.5 161 210
2×70 14/2.56 1.1 1.8 21.8 1,446 0.268 3.5 204 257
2×95 19/2.56 1.1 2 24.7 1,967 0.193 3.5 252 310
2×120 24/2.56 1.2 2.1 27.1 2,444 0.153 3.5 291 351
2×150 30/2.56 1.4 2.2 30.3 3,008 0.124 3.5 333 393
2×185 37/2.56 1.6 2.3 33.5 3,772 0.0991 3.5 385 445
2×240 48/2.56 1.7 2.5 37.7 4,909 0.0754 3.5 457 516
2×300 60/2.56 1.8 2.7 41.4 6,090 0.0601 3.5 527 583
3×1.5 1/1.38 0.7 1.8 9.9 127 12.1 3.5 20 31
3×2.5 1/1.76 0.7 1.8 10.7 163 7.56 3.5 27 41
3×4 1/2.23 0.7 1.8 11.8 216 4.61 3.5 35 53
3×6 1/2.74 0.7 1.8 12.9 285 3.08 3.5 45 66
3×10 7/1.33 0.7 1.8 15.6 429 1.83 3.5 63 90
3×16 7/1.67 0.7 1.8 17.7 613 1.15 3.5 84 117
3×25 7/2.10 0.9 1.8 21.4 923 0.727 3.5 113 151
3×35 7/2.48 0.9 1.8 23.8 1,229 0.524 3.5 139 181
3×50 10/2.56 1.0 1.8 22.5 1,517 0.387 3.5 161 210
3×70 14/2.56 1.1 1.9 26.1 2,133 0.268 3.5 204 257
3×95 19/2.56 1.1 2 29.3 2,891 0.193 3.5 252 310
3×120 24/2.56 1.2 2.1 32.3 3,600 0.153 3.5 291 351
3×150 30/2.56 1.4 2.3 36.1 4,440 0.124 3.5 333 393
3×185 37/2.56 1.6 2.4 40.1 5,579 0.0991 3.5 385 445
3×240 48/2.56 1.7 2.6 45.5 7,288 0.0754 3.5 457 516
3×300 60/2.56 1.8 2.8 50.0 9,045 0.0601 3.5 527 583
4×1.5 1/1.38 0.7 1.8 10.7 152 12.1 3.5 20 31
4×2.5 1/1.76 0.7 1.8 11.6 199 7.56 3.5 27 41
4×4 1/2.23 0.7 1.8 12.7 267 4.61 3.5 35 53
4×6 1/2.74 0.7 1.8 13.9 356 3.08 3.5 45 66
4×10 7/1.33 0.7 1.8 17.0 542 1.83 3.5 63 90
4×16 7/1.67 0.7 1.8 19.4 782 1.15 3.5 84 117
4×25 7/2.10 0.9 1.8 23.5 1,185 0.727 3.5 113 151
4×35 7/2.48 0.9 1.8 26.3 1,586 0.524 3.5 139 181
4×50 10/2.56 1.0 1.9 25.5 1,999 0.387 3.5 161 210
4×70 14/2.56 1.1 2 29.4 2,810 0.268 3.5 204 257
4×95 19/2.56 1.1 2.1 33.5 3,823 0.193 3.5 252 310
4×120 24/2.56 1.2 2.3 37.2 4,783 0.153 3.5 291 351
4×150 30/2.56 1.4 2.4 41.3 5,879 0.124 3.5 333 393
4×185 37/2.56 1.6 2.6 46.5 7,434 0.0991 3.5 385 445
4×240 48/2.56 1.7 2.8 52.7 9,701 0.0754 3.5 457 516
4×300 60/2.56 1.8 3 57.9 12,030 0.0601 3.5 527 583
5×1.5 1/1.38 0.7 1.8 11.5 179 12.1 3.5 20 31
5×2.5 1/1.76 0.7 1.8 12.5 236 7.56 3.5 27 41
5×4 1/2.23 0.7 1.8 13.8 321 4.61 3.5 35 53
5×6 1/2.74 0.7 1.8 15.2 430 3.08 3.5 45 66
5×10 7/1.33 0.7 1.8 18.6 659 1.83 3.5 63 90
5×16 7/1.67 0.7 1.8 21.3 957 1.15 3.5 84 117
5×25 7/2.10 0.9 1.8 25.9 1,456 0.727 3.5 113 151
5×35 7/2.48 0.9 1.8 28.9 1,955 0.524 3.5 139 181
5×50 19/1.86 1.0 2 28.9 2,502 0.387 3.5 161 210
5×70 14/2.56 1.1 2.1 33.6 3,525 0.268 3.5 204 257
5×95 19/2.56 1.1 2.3 38.2 4,798 0.193 3.5 252 310
5×120 24/2.56 1.2 2.4 42.3 5,990 0.153 3.5 291 351
5×150 30/2.56 1.4 2.6 47.3 7,393 0.124 3.5 333 393
5×185 37/2.56 1.6 2.8 52.6 9,312 0.0991 3.5 385 445
5×240 48/2.56 1.7 3 59.5 12,137 0.0754 3.5 457 516
5×300 60/2.56 1.8 3.2 65.6 15,064 0.0601 3.5 527 583
3×2.5+1×1.5 1/1.76 0.7 1.8 11.3 187 7.56 3.5 27 41
3×4+1×2.5 1/2.23 0.7 1.8 12.4 250 4.61 3.5 35 53
3×6+1×4 1/2.74 0.7 1.8 13.6 334 3.08 3.5 45 66
3×10+1×6 7/1.33 0.7 1.8 16.2 494 1.83 3.5 63 90
3×16+1×10 7/1.67 0.7 1.8 18.8 721 1.15 3.5 84 117
3×25+1×16 7/2.10 0.9 1.8 22.5 1,083 0.727 3.5 113 151
3×35+1×16 7/2.48 0.9 1.8 24.6 1,382 0.524 3.5 139 181
3×50+1×25 10/2.56 1.0 1.8 24.9 1,787 0.387 3.5 161 210
3×70+1×35 14/2.56 1.1 1.9 29.2 2,515 0.268 3.5 204 257
3×95+1×50 19/2.56 1.1 2.1 33.2 3,421 0.193 3.5 252 310
3×120+1×70 24/2.56 1.2 2.2 36.8 4,339 0.153 3.5 291 351
3×150+1×70 30/2.56 1.4 2.3 40.4 5,180 0.124 3.5 333 393
3×185+1×95 37/2.56 1.6 2.5 45.5 6,621 0.0991 3.5 385 445
3×240+1×120 48/2.56 1.7 2.7 51.1 8,567 0.0754 3.5 457 516
3×300+1×150 60/2.56 1.8 2.9 56.5 10,624 0.0601 3.5 527 583
3×2.5+2×1.5 1/1.76 0.7 1.8 12.1 213 7.56 3.5 27 41
3×4+2×2.5 1/2.23 0.7 1.8 13.3 287 4.61 3.5 35 53
3×6+2×4 1/2.74 0.7 1.8 14.6 386 3.08 3.5 45 66
3×10+2×6 7/1.33 0.7 1.8 17.2 566 1.83 3.5 63 90
3×16+2×10 7/1.67 0.7 1.8 20.2 837 1.15 3.5 84 117
3×25+2×16 7/2.10 0.9 1.8 24.0 1,254 0.727 3.5 113 151
3×35+2×16 7/2.48 0.9 1.8 25.9 1,550 0.524 3.5 139 181
3×50+2×25 10/2.56 1.0 1.9 26.2 2,040 0.387 3.5 161 210
3×70+2×35 14/2.56 1.1 2 30.2 2,852 0.268 3.5 204 257
3×95+2×50 19/2.56 1.1 2.2 34.3 3,874 0.193 3.5 252 310
3×120+2×70 24/2.56 1.2 2.3 37.9 4,970 0.153 3.5 291 351
3×150+2×70 30/2.56 1.4 2.4 42.3 5,849 0.124 3.5 333 393
3×185+2×95 37/2.56 1.6 2.6 47.7 7,533 0.0991 3.5 385 445
3×240+2×120 48/2.56 1.7 2.8 53.6 9,715 0.0754 3.5 457 516
3×300+2×150 60/2.56 1.8 3 59.7 12,057 0.0601 3.5 527 583
4×2.5+1×1.5 1/1.76 0.7 1.8 12.3 225 7.56 3.5 27 41
4×4+1×2.5 1/2.23 0.7 1.8 13.6 304 4.61 3.5 35 53
4×6+1×4 1/2.74 0.7 1.8 14.9 408 3.08 3.5 45 66
4×10+1×6 7/1.33 0.7 1.8 17.9 612 1.83 3.5 63 90
4×16+1×10 7/1.67 0.7 1.8 20.7 897 1.15 3.5 84 117
4×25+1×16 7/2.10 0.9 1.8 24.9 1,355 0.727 3.5 113 151
4×35+1×16 7/2.48 0.9 1.8 27.4 1,752 0.524 3.5 139 181
4×50+1×25 10/2.56 1.0 1.9 26.6 2,241 0.387 3.5 161 210
4×70+1×35 14/2.56 1.1 2.1 30.8 3,159 0.268 3.5 204 257
4×95+1×50 19/2.56 1.1 2.2 34.7 4,278 0.193 3.5 252 310
4×120+1×70 24/2.56 1.2 2.4 38.7 5,431 0.153 3.5 291 351
4×150+1×70 30/2.56 1.4 2.5 43.5 6,571 0.124 3.5 333 393
4×185+1×95 37/2.56 1.6 2.7 48.3 8,340 0.0991 3.5 385 445
4×240+1×120 48/2.56 1.7 2.9 54.9 10,838 0.0754 3.5 457 516
4×300+1×150 60/2.56 1.8 3.1 60.6 13,443 0.0601 3.5 527 583


PACKING AND SHIPPING

We are capable of meeting the strictest delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self-adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.
