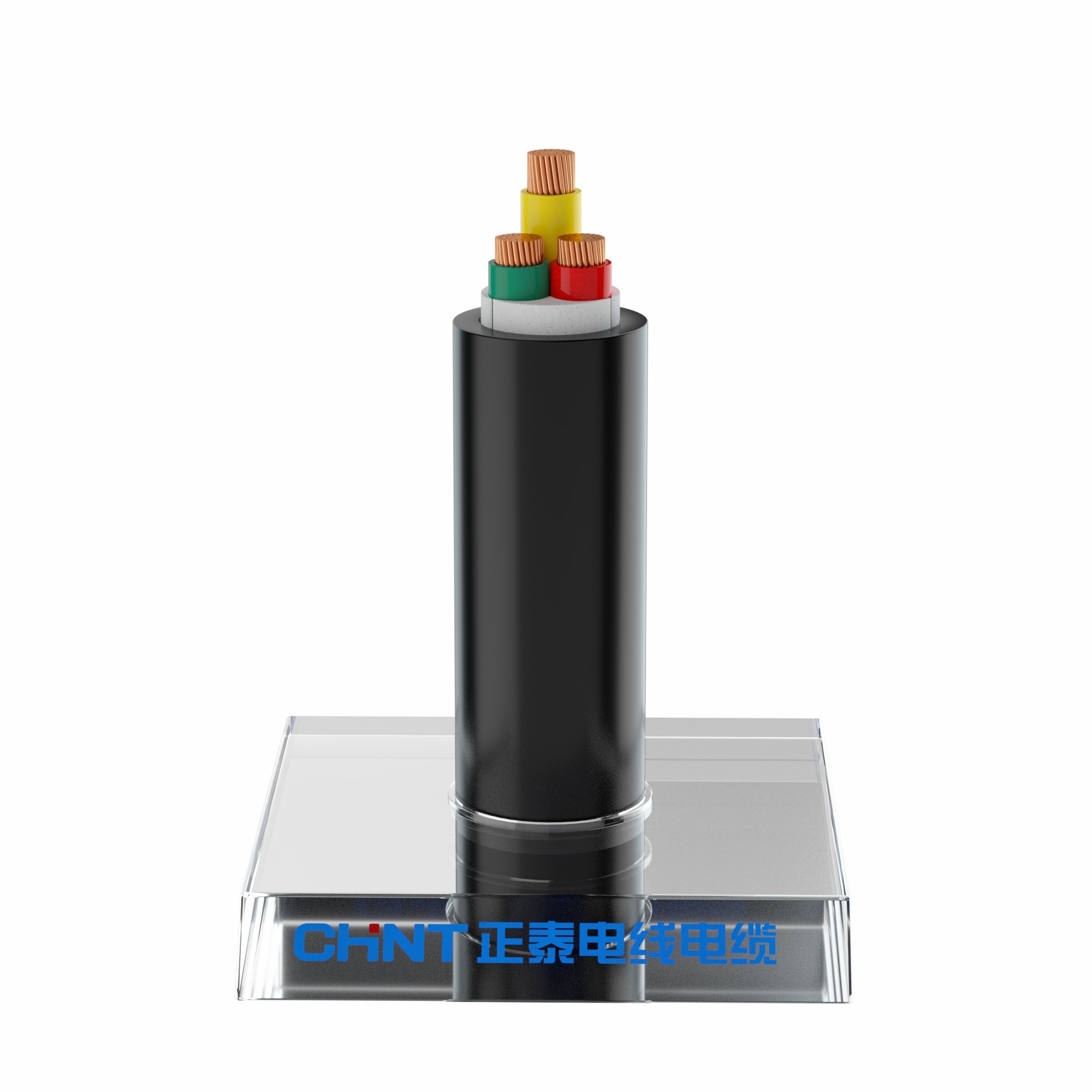

IEC 60502.1 copper 1KV XLPE Insulated PVC Sheathed Cable

Basic Information
Place of Origin: CHINA
Brand Name: CHINT
Certification: KEMA/CE/SGS
Model Number: CU/XLPE/PVC POWER CABLE
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: iron with wooden or wood or iron
Supply Ability: 1000KM/Month
Name: XLPE Insulated PVC Sheathed Cable Package: Iron With Wooden Or Wood Or Iron
Standard: IEC 60502.1 Conductor Shape: Compacted Round Or Sector
Filler: PP Material Conductor: Copper
High Light:

xlpe insulated power cable

,

cross linked polyethylene insulated cable

IEC 60502.1 Copper 1KV XLPE Insulated PVC Sheathed Cable



XLPE Insulated PVC Sheathed Cable Application



IEC 60502-1 XLPE Insulated copper cable are used for electricity supply in low voltage installation system, IEC 60502-1 XLPE Insulated copper cable are suitable for installation in indoors and outdoors, in cable ducts, under ground, in power and switching stations, local energy distributions, industrial plants, where there is no risk of mechanical damage.



Ordering Advice



Number of Cores

Conductor Size & Construction

Type of Insulation

Armored or unarmored. If armor, the armor type & material

The Requirement of Sheath

Length of Cable & Packing Requirement

Other Requirement



XLPE Insulated PVC Sheathed Cable Standards



International: IEC 60502.1, IEC 60228

China: GB/T 12706.1-2008

Other standards such as BS,VDE and ICEA upon request



Detailed Product Description

Conductor : Plain annealed copper solid or stranded (class 1 or 2) conductor complying with IEC 60228

Insulation : XLPE(cross-linked polyethylene) rated at 90 ℃

Sheath : PVC type ST2 , according to IEC 60502, black



Note:

Insulation identification as per standards or customer requirement



Technical Specifications



Nom. Cross-section of conductor Strands No./Dia. Of Conductor Insulation Thickness Sheath Thickness Approx. O.D. Approx. Max. D.C Resistance of Conductor (20 ℃) Testing Voltage A.C Current Rating
Weight In air (A) In soil(A)
1×1.5 1/1.38 0.7 1.4 5.6 43 12.1 3.5 26 33
1×2.5 1/1.76 0.7 1.4 6.0 54 7.56 3.5 34 43
1×4 1/2.23 0.7 1.4 6.4 71 4.61 3.5 44 56
1×6 1/2.74 0.7 1.4 7.0 93 3.08 3.5 56 70
1×10 7/1.33 0.7 1.4 8.2 137 1.83 3.5 77 94
1×16 7/1.67 0.7 1.4 9.2 195 1.15 3.5 100 120
1×25 7/2.10 0.9 1.4 10.9 292 0.727 3.5 130 155
1×35 7/2.48 0.9 1.4 12.0 389 0.524 3.5 160 185
1×50 10/2.56 1.0 1.4 13.2 514 0.387 3.5 195 220
1×70 14/2.56 1.1 1.4 15.1 716 0.268 3.5 245 270
1×95 19/2.56 1.1 1.5 16.9 969 0.193 3.5 300 320
1×120 24/2.56 1.2 1.5 18.6 1,203 0.153 3.5 349 365
1×150 30/2.56 1.4 1.6 20.6 1,479 0.124 3.5 400 410
1×185 37/2.56 1.6 1.6 22.7 1,853 0.0991 3.5 465 465
1×240 48/2.58 1.7 1.7 25.3 2,408 0.0754 3.5 550 540
1×300 60/2.58 1.8 1.8 27.9 2,988 0.0601 3.5 635 610
1×400 60/2.93 2.0 1.9 31.5 3,860 0.047 3.5 745 695
1×500 60/3.33 2.2 2 35.2 4,840 0.0366 3.5 860 780
1×630 60/3.76 2.4 2.2 39.4 6,182 0.0283 3.5 990 880
2×1.5 1/1.38 0.7 1.8 9.5 106 12.1 3.5 20 31
2×2.5 1/1.76 0.7 1.8 10.3 133 7.56 3.5 27 41
2×4 1/2.23 0.7 1.8 11.2 172 4.61 3.5 35 53
2×6 1/2.74 0.7 1.8 12.2 221 3.08 3.5 45 66
2×10 7/1.33 0.7 1.8 14.7 328 1.83 3.5 63 90
2×16 7/1.67 0.7 1.8 16.7 460 1.15 3.5 84 117
2×25 7/2.10 0.9 1.8 20.1 683 0.727 3.5 113 151
2×35 7/2.48 0.9 1.8 22.4 900 0.524 3.5 139 181
2×50 10/2.56 1.0 1.8 19.0 1,037 0.387 3.5 161 210
2×70 14/2.56 1.1 1.8 21.8 1,446 0.268 3.5 204 257
2×95 19/2.56 1.1 2 24.7 1,967 0.193 3.5 252 310
2×120 24/2.56 1.2 2.1 27.1 2,444 0.153 3.5 291 351
2×150 30/2.56 1.4 2.2 30.3 3,008 0.124 3.5 333 393
2×185 37/2.56 1.6 2.3 33.5 3,772 0.0991 3.5 385 445
2×240 48/2.56 1.7 2.5 37.7 4,909 0.0754 3.5 457 516
2×300 60/2.56 1.8 2.7 41.4 6,090 0.0601 3.5 527 583
3×1.5 1/1.38 0.7 1.8 9.9 127 12.1 3.5 20 31
3×2.5 1/1.76 0.7 1.8 10.7 163 7.56 3.5 27 41
3×4 1/2.23 0.7 1.8 11.8 216 4.61 3.5 35 53
3×6 1/2.74 0.7 1.8 12.9 285 3.08 3.5 45 66
3×10 7/1.33 0.7 1.8 15.6 429 1.83 3.5 63 90
3×16 7/1.67 0.7 1.8 17.7 613 1.15 3.5 84 117
3×25 7/2.10 0.9 1.8 21.4 923 0.727 3.5 113 151
3×35 7/2.48 0.9 1.8 23.8 1,229 0.524 3.5 139 181
3×50 10/2.56 1.0 1.8 22.5 1,517 0.387 3.5 161 210
3×70 14/2.56 1.1 1.9 26.1 2,133 0.268 3.5 204 257
3×95 19/2.56 1.1 2 29.3 2,891 0.193 3.5 252 310
3×120 24/2.56 1.2 2.1 32.3 3,600 0.153 3.5 291 351
3×150 30/2.56 1.4 2.3 36.1 4,440 0.124 3.5 333 393
3×185 37/2.56 1.6 2.4 40.1 5,579 0.0991 3.5 385 445
3×240 48/2.56 1.7 2.6 45.5 7,288 0.0754 3.5 457 516
3×300 60/2.56 1.8 2.8 50.0 9,045 0.0601 3.5 527 583
4×1.5 1/1.38 0.7 1.8 10.7 152 12.1 3.5 20 31
4×2.5 1/1.76 0.7 1.8 11.6 199 7.56 3.5 27 41
4×4 1/2.23 0.7 1.8 12.7 267 4.61 3.5 35 53
4×6 1/2.74 0.7 1.8 13.9 356 3.08 3.5 45 66
4×10 7/1.33 0.7 1.8 17.0 542 1.83 3.5 63 90
4×16 7/1.67 0.7 1.8 19.4 782 1.15 3.5 84 117
4×25 7/2.10 0.9 1.8 23.5 1,185 0.727 3.5 113 151
4×35 7/2.48 0.9 1.8 26.3 1,586 0.524 3.5 139 181
4×50 10/2.56 1.0 1.9 25.5 1,999 0.387 3.5 161 210
4×70 14/2.56 1.1 2 29.4 2,810 0.268 3.5 204 257
4×95 19/2.56 1.1 2.1 33.5 3,823 0.193 3.5 252 310
4×120 24/2.56 1.2 2.3 37.2 4,783 0.153 3.5 291 351
4×150 30/2.56 1.4 2.4 41.3 5,879 0.124 3.5 333 393
4×185 37/2.56 1.6 2.6 46.5 7,434 0.0991 3.5 385 445
4×240 48/2.56 1.7 2.8 52.7 9,701 0.0754 3.5 457 516
4×300 60/2.56 1.8 3 57.9 12,030 0.0601 3.5 527 583
5×1.5 1/1.38 0.7 1.8 11.5 179 12.1 3.5 20 31
5×2.5 1/1.76 0.7 1.8 12.5 236 7.56 3.5 27 41
5×4 1/2.23 0.7 1.8 13.8 321 4.61 3.5 35 53
5×6 1/2.74 0.7 1.8 15.2 430 3.08 3.5 45 66
5×10 7/1.33 0.7 1.8 18.6 659 1.83 3.5 63 90
5×16 7/1.67 0.7 1.8 21.3 957 1.15 3.5 84 117
5×25 7/2.10 0.9 1.8 25.9 1,456 0.727 3.5 113 151
5×35 7/2.48 0.9 1.8 28.9 1,955 0.524 3.5 139 181
5×50 19/1.86 1.0 2 28.9 2,502 0.387 3.5 161 210
5×70 14/2.56 1.1 2.1 33.6 3,525 0.268 3.5 204 257
5×95 19/2.56 1.1 2.3 38.2 4,798 0.193 3.5 252 310
5×120 24/2.56 1.2 2.4 42.3 5,990 0.153 3.5 291 351
5×150 30/2.56 1.4 2.6 47.3 7,393 0.124 3.5 333 393
5×185 37/2.56 1.6 2.8 52.6 9,312 0.0991 3.5 385 445
5×240 48/2.56 1.7 3 59.5 12,137 0.0754 3.5 457 516
5×300 60/2.56 1.8 3.2 65.6 15,064 0.0601 3.5 527 583
3×2.5+1×1.5 1/1.76 0.7 1.8 11.3 187 7.56 3.5 27 41
3×4+1×2.5 1/2.23 0.7 1.8 12.4 250 4.61 3.5 35 53
3×6+1×4 1/2.74 0.7 1.8 13.6 334 3.08 3.5 45 66
3×10+1×6 7/1.33 0.7 1.8 16.2 494 1.83 3.5 63 90
3×16+1×10 7/1.67 0.7 1.8 18.8 721 1.15 3.5 84 117
3×25+1×16 7/2.10 0.9 1.8 22.5 1,083 0.727 3.5 113 151
3×35+1×16 7/2.48 0.9 1.8 24.6 1,382 0.524 3.5 139 181
3×50+1×25 10/2.56 1.0 1.8 24.9 1,787 0.387 3.5 161 210
3×70+1×35 14/2.56 1.1 1.9 29.2 2,515 0.268 3.5 204 257
3×95+1×50 19/2.56 1.1 2.1 33.2 3,421 0.193 3.5 252 310
3×120+1×70 24/2.56 1.2 2.2 36.8 4,339 0.153 3.5 291 351
3×150+1×70 30/2.56 1.4 2.3 40.4 5,180 0.124 3.5 333 393
3×185+1×95 37/2.56 1.6 2.5 45.5 6,621 0.0991 3.5 385 445
3×240+1×120 48/2.56 1.7 2.7 51.1 8,567 0.0754 3.5 457 516
3×300+1×150 60/2.56 1.8 2.9 56.5 10,624 0.0601 3.5 527 583
3×2.5+2×1.5 1/1.76 0.7 1.8 12.1 213 7.56 3.5 27 41
3×4+2×2.5 1/2.23 0.7 1.8 13.3 287 4.61 3.5 35 53
3×6+2×4 1/2.74 0.7 1.8 14.6 386 3.08 3.5 45 66
3×10+2×6 7/1.33 0.7 1.8 17.2 566 1.83 3.5 63 90
3×16+2×10 7/1.67 0.7 1.8 20.2 837 1.15 3.5 84 117
3×25+2×16 7/2.10 0.9 1.8 24.0 1,254 0.727 3.5 113 151
3×35+2×16 7/2.48 0.9 1.8 25.9 1,550 0.524 3.5 139 181
3×50+2×25 10/2.56 1.0 1.9 26.2 2,040 0.387 3.5 161 210
3×70+2×35 14/2.56 1.1 2 30.2 2,852 0.268 3.5 204 257
3×95+2×50 19/2.56 1.1 2.2 34.3 3,874 0.193 3.5 252 310
3×120+2×70 24/2.56 1.2 2.3 37.9 4,970 0.153 3.5 291 351
3×150+2×70 30/2.56 1.4 2.4 42.3 5,849 0.124 3.5 333 393
3×185+2×95 37/2.56 1.6 2.6 47.7 7,533 0.0991 3.5 385 445
3×240+2×120 48/2.56 1.7 2.8 53.6 9,715 0.0754 3.5 457 516
3×300+2×150 60/2.56 1.8 3 59.7 12,057 0.0601 3.5 527 583
4×2.5+1×1.5 1/1.76 0.7 1.8 12.3 225 7.56 3.5 27 41
4×4+1×2.5 1/2.23 0.7 1.8 13.6 304 4.61 3.5 35 53
4×6+1×4 1/2.74 0.7 1.8 14.9 408 3.08 3.5 45 66
4×10+1×6 7/1.33 0.7 1.8 17.9 612 1.83 3.5 63 90
4×16+1×10 7/1.67 0.7 1.8 20.7 897 1.15 3.5 84 117
4×25+1×16 7/2.10 0.9 1.8 24.9 1,355 0.727 3.5 113 151
4×35+1×16 7/2.48 0.9 1.8 27.4 1,752 0.524 3.5 139 181
4×50+1×25 10/2.56 1.0 1.9 26.6 2,241 0.387 3.5 161 210
4×70+1×35 14/2.56 1.1 2.1 30.8 3,159 0.268 3.5 204 257
4×95+1×50 19/2.56 1.1 2.2 34.7 4,278 0.193 3.5 252 310
4×120+1×70 24/2.56 1.2 2.4 38.7 5,431 0.153 3.5 291 351
4×150+1×70 30/2.56 1.4 2.5 43.5 6,571 0.124 3.5 333 393
4×185+1×95 37/2.56 1.6 2.7 48.3 8,340 0.0991 3.5 385 445
4×240+1×120 48/2.56 1.7 2.9 54.9 10,838 0.0754 3.5 457 516
4×300+1×150 60/2.56 1.8 3.1 60.6 13,443 0.0601 3.5 527 583
