XLPE Insulation Solar PV Cable

Basic Information
Place of Origin: China
Brand Name: CHINT
Certification: TUV
Model Number: H1Z2Z2-K
Minimum Order Quantity: 2000m
Price: 0.3~0.7USD/m
Packaging Details: wooden or polywooden drum or rolls
Supply Ability: 60000km per month
Condutor: Tinned Anneal Copper Insulation: XLPE/XLPO
Material Color: Black Or Red Rated Voltage: 1500 VDC
Application: Solar Power System
High Light:

1500VDC Solar PV Cable

,

Tinned Solar PV Cable

,

XLPE Insulation Solar PV Cable

Tinned Flexible Conductor XLPE/XLPO Cable With TUV Certiifcate

Producton discription

Chint cable has gotten TUV certificate with solar cable which designed by EN50618 standard. this kind of cable with

25 years old and UV resistant.we have exported this kind cable to many countries ,eg. Australia   Brazil

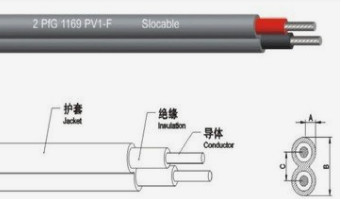

XLPE Insulation Solar PV Cable 0

Product Specification:

Product name:solar cable

Conductor Material:copper

Rated voltage:1500 VDC

Core:Single Core,Double Core,or Multi Core

Color:Red,Black

Jacket Material:XLPE

Temperature range:-40℃~90℃

Data sheet

Cross Section

(mm²)

Conductor Construction

(n/mm)

Conductor

OD(mm)

Cable

OD(mm)



Insulation

Min.Wall

Thickness(mm)

Sheath

Min.Wall

Thickness(mm)

Current Araaing

Capacity AT

60°C(A)

1.5 TXR30/0.25 1.58 4.90 0.67 0.73 30
2.5 TXR50/0.25 2.02 5.45 0.67 0.73 41
4 TXR56/0.30 2.60 6.10 0.67 0.73 55
6 TXR84/0.30 3.42 7.20 0.8 0.80 70



Application:

Specifically designed for connecting photovoltaic system components inside and
outside of building and equipment with high mechanical requirements and extreme weather
conditions.
Solar power system, PV,solar eara.



Advantage:

·Dual wall insulation.Electron beam cross-linked

·Excellent resistance to U.V,oil,greases,oxygen and ozone

·Excellent resistance to abrasion

·Halogen free, flame retardant,low toxicity

·Excellent flexibility and stripping performance

·High Voltage and Current carring capacity

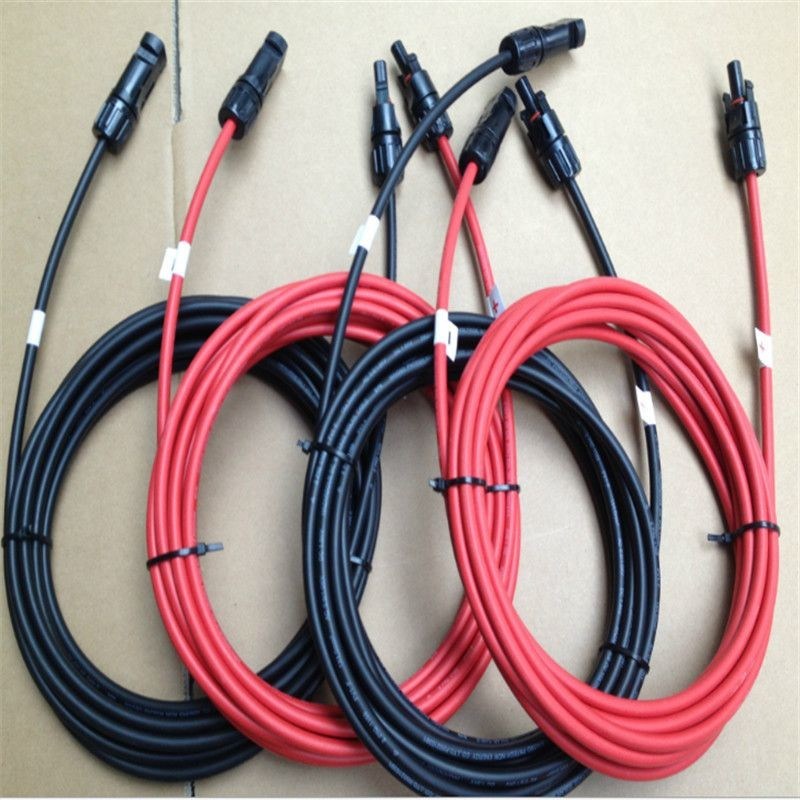

XLPE Insulation Solar PV Cable 1

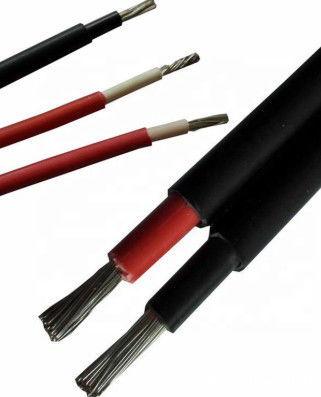

XLPE Insulation Solar PV Cable 2
