Cable decription

1.1What is FR Cable

The typical structure of refractory cable is the cable with an additional refractory layer between conductor and insulation. This structure enables the cable to withstand 750 C, 90 minutes of fire resistance test.

1.2 Benefits of FR Cable

In fire accidents, fire-resistant cables can operate normally in a certain period of time.

While maintaining the integrity of power lines and the normal operation of safety equipment, fire-proof cables have won valuable time for personnel evacuation.

Construction

Conductor : Plain annealed copper solid or stranded (class 1 or 2) conductor complying with BS EN 60228

Refractory layer:Double-layer phlogopite belt

Insulation : 90°C cross linked XLPE insulation complying with BS7655 Type GP8

Sheath : PVC. Colour – Black. Other colours are available to special order

Standards:

International: IEC 60502, IEC 60228, IEC 60332, IEC 60754

China: GB∕T 12706.1-2008, GB∕T 19666-2005

Other standards such as BS,VDE and ICEA upon request

Applications

Laying in room ,tunnel ,cable trench ,and pipes.

Technical Specifications

Rated voltage: 0.6/1kv

Maximum Conductor Temperature: under normal (90 ℃), emergency (130℃) or short circuit no more than 5 s (250℃) conditions.

Min. Ambient Temp.: The cable shall be pre heated if the ambient temperature is below 0℃

Min. Bending Radius: single core cable 20(d+D)±5%

Multi-core cable 15(d+D)±5%

Technical data sheet

Nom. Cross-section of conductor	Strands No./Dia. Of Conductor	Refractory layer Thickness	Insulation Thickness	Sheath Thickness	Approx. O.D.	Approx.	Max. D.C Resistance of Conductor (20 ℃)	Testing Voltage A.C	Current Rating
Nom. Cross-section of conductor	Strands No./Dia. Of Conductor	Refractory layer Thickness	Insulation Thickness	Sheath Thickness	Approx. O.D.	Weight	Max. D.C Resistance of Conductor (20 ℃)	Testing Voltage A.C	In air (A)	In soil(A)
1×1.5	1/1.38	0.28	0.7	1.4	5.8	47	12.1	3.5	26	33
1×2.5	1/1.76	0.28	0.7	1.4	6.2	59	7.56	3.5	34	43
1×4	1/2.23	0.28	0.7	1.4	6.6	76	4.61	3.5	44	56
1×6	1/2.74	0.28	0.7	1.4	7.2	99	3.08	3.5	56	70
1×10	7/1.38	0.28	0.7	1.4	8.4	143	1.83	3.5	77	94
1×16	7/1.71	0.28	0.7	1.4	9.4	202	1.15	3.5	100	120
1×25	7/2.12	0.28	0.9	1.4	11.1	301	0.727	3.5	130	155
1×35	7/2.48	0.28	0.9	1.4	11.9	395	0.524	3.5	160	185
1×50	10/2.56	0.28	1	1.4	13.5	527	0.387	3.5	195	220
1×70	14/2.56	0.28	1.1	1.4	15.4	731	0.268	3.5	245	270
1×95	19/2.56	0.28	1.1	1.5	17.2	987	0.193	3.5	300	320
1×120	24/2.56	0.28	1.2	1.5	18.9	1,223	0.153	3.5	349	365
1×150	30/2.56	0.28	1.4	1.6	20.9	1,502	0.124	3.5	400	410
1×185	37/2.56	0.28	1.6	1.6	23.1	1,879	0.0991	3.5	465	465
1×240	48/2.58	0.28	1.7	1.7	25.7	2,439	0.0754	3.5	550	540
1×300	60/2.58	0.28	1.8	1.8	28.2	3,023	0.0601	3.5	635	610
1×400	60/2.93	0.28	2	1.9	31.8	3,901	0.047	3.5	745	695
1×500	60/3.33	0.28	2.2	2	35.9	4,893	0.0366	3.5	860	780
1×630	60/3.76	0.28	2.4	2.2	40.1	6,246	0.0283	3.5	990	880
2×1.5	1/1.38	0.28	0.7	1.8	9.6	119	12.1	3.5	20	31
2×2.5	1/1.76	0.28	0.7	1.8	10.4	148	7.56	3.5	27	41
2×4	1/2.23	0.28	0.7	1.8	11.3	189	4.61	3.5	35	53
2×6	1/2.74	0.28	0.7	1.8	12.4	245	3.08	3.5	45	66
2×10	7/1.38	0.28	0.7	1.8	14.8	355	1.83	3.5	63	90
2×16	7/1.71	0.28	0.7	1.8	16.8	496	1.15	3.5	84	117
2×25	7/2.12	0.28	0.9	1.8	20.2	736	0.727	3.5	113	151
2×35	7/2.48	0.28	0.9	1.8	21.7	947	0.524	3.5	139	181
2×50	10/2.56	0.28	1	1.8	25.0	1,263	0.387	3.5	161	210
2×70	14/2.56	0.28	1.1	1.8	28.8	1,741	0.268	3.5	204	257
2×95	19/2.56	0.28	1.1	2	32.4	2,334	0.193	3.5	252	310
2×120	24/2.56	0.28	1.2	2.1	36.0	2,901	0.153	3.5	291	351
2×150	30/2.56	0.28	1.4	2.2	39.8	3,554	0.124	3.5	333	393
2×185	37/2.56	0.28	1.6	2.3	44.4	4,456	0.0991	3.5	385	445
2×240	48/2.58	0.28	1.7	2.5	49.6	5,794	0.0754	3.5	457	516
2×300	60/2.58	0.28	1.8	2.7	54.6	7,156	0.0601	3.5	527	583
3×1.5	1/1.38	0.28	0.7	1.8	10.0	140	12.1	3.5	20	31
3×2.5	1/1.76	0.28	0.7	1.8	10.9	178	7.56	3.5	27	41
3×4	1/2.23	0.28	0.7	1.8	11.9	233	4.61	3.5	35	53
3×6	1/2.74	0.28	0.7	1.8	13.1	308	3.08	3.5	45	66
3×10	7/1.38	0.28	0.7	1.8	15.7	454	1.83	3.5	63	90
3×16	7/1.71	0.28	0.7	1.8	17.9	647	1.15	3.5	84	117
3×25	7/2.12	0.28	0.9	1.8	21.5	971	0.727	3.5	113	151
3×35	7/2.48	0.28	0.9	1.8	23.1	1,270	0.524	3.5	139	181
3×50	10/2.56	0.28	1	1.8	26.7	1,702	0.387	3.5	161	210
3×70	14/2.56	0.28	1.1	1.9	31.0	2,379	0.268	3.5	204	257
3×95	19/2.56	0.28	1.1	2	34.7	3,191	0.193	3.5	252	310
3×120	24/2.56	0.28	1.2	2.1	38.5	3,975	0.153	3.5	291	351
3×150	30/2.56	0.28	1.4	2.3	42.8	4,896	0.124	3.5	333	393
3×185	37/2.56	0.28	1.6	2.4	47.8	6,187	0.0991	3.5	385	445
3×240	48/2.58	0.28	1.7	2.6	53.4	8,007	0.0754	3.5	457	516
3×300	60/2.58	0.28	1.8	2.8	58.7	9,911	0.0601	3.5	527	583
4×1.5	1/1.38	0.28	0.7	1.8	10.8	166	12.1	3.5	20	31
4×2.5	1/1.76	0.28	0.7	1.8	11.8	216	7.56	3.5	27	41
4×4	1/2.23	0.28	0.7	1.8	12.9	286	4.61	3.5	35	53
4×6	1/2.74	0.28	0.7	1.8	14.3	382	3.08	3.5	45	66
4×10	7/1.38	0.28	0.7	1.8	17.1	570	1.83	3.5	63	90
4×16	7/1.71	0.28	0.7	1.8	19.6	819	1.15	3.5	84	117
4×25	7/2.12	0.28	0.9	1.8	23.7	1,238	0.727	3.5	113	151
4×35	7/2.48	0.28	0.9	1.8	25.5	1,631	0.524	3.5	139	181
4×50	10/2.56	0.28	1	1.9	29.7	2,205	0.387	3.5	161	210
4×70	14/2.56	0.28	1.1	2	34.5	3,088	0.268	3.5	204	257
4×95	19/2.56	0.28	1.1	2.1	38.6	4,151	0.193	3.5	252	310
4×120	24/2.56	0.28	1.2	2.3	43.1	5,195	0.153	3.5	291	351
4×150	30/2.56	0.28	1.4	2.4	47.6	6,411	0.124	3.5	333	393
4×185	37/2.56	0.28	1.6	2.6	53.4	8,077	0.0991	3.5	385	445
4×240	48/2.58	0.28	1.7	2.8	59.6	10,460	0.0754	3.5	457	516
4×300	60/2.58	0.28	1.8	3	65.5	12,950	0.0601	3.5	527	583
5×1.5	1/1.38	0.28	0.7	1.8	11.6	195	12.1	3.5	20	31
5×2.5	1/1.76	0.28	0.7	1.8	12.7	256	7.56	3.5	27	41
5×4	1/2.23	0.28	0.7	1.8	13.9	343	4.61	3.5	35	53
5×6	1/2.74	0.28	0.7	1.8	15.5	460	3.08	3.5	45	66
5×10	7/1.38	0.28	0.7	1.8	18.7	691	1.83	3.5	63	90
5×16	7/1.71	0.28	0.7	1.8	21.4	1,000	1.15	3.5	84	117
5×25	7/2.12	0.28	0.9	1.8	26.0	1,518	0.727	3.5	113	151
5×35	7/2.48	0.28	0.9	1.8	28.0	2,006	0.524	3.5	139	181
5×50	10/2.56	0.28	1	2	32.9	2,731	0.387	3.5	161	210
5×70	14/2.56	0.28	1.1	2.1	38.2	3,828	0.268	3.5	204	257
5×95	19/2.56	0.28	1.1	2.3	42.9	5,171	0.193	3.5	252	310
5×120	24/2.56	0.28	1.2	2.4	47.7	6,484	0.153	3.5	291	351
5×150	30/2.56	0.28	1.4	2.6	53.0	7,976	0.124	3.5	333	393
5×185	37/2.56	0.28	1.6	2.8	59.3	10,047	0.0991	3.5	385	445
5×240	48/2.58	0.28	1.7	3	66.2	13,011	0.0754	3.5	457	516
5×300	60/2.58	0.28	1.8	3.2	72.8	16,109	0.0601	3.5	527	583
3×2.5+1×1.5	1/1.76	0.28	0.7	1.8	11.5	203	7.56	3.5	27	41
3×4+1×2.5	1/2.23	0.28	0.7	1.8	12.6	269	4.61	3.5	35	53
3×6+1×4	1/2.74	0.28	0.7	1.8	13.9	358	3.08	3.5	45	66
3×10+1×6	7/1.38	0.28	0.7	1.8	16.4	522	1.83	3.5	63	90
3×16+1×10	7/1.71	0.28	0.7	1.8	19.0	756	1.15	3.5	84	117
3×25+1×16	7/2.12	0.28	0.9	1.8	22.7	1,131	0.727	3.5	113	151
3×35+1×16	7/2.48	0.28	0.9	1.8	24.0	1,423	0.524	3.5	139	181
3×50+1×25	10/2.56	0.28	1	1.8	28.0	1,948	0.387	3.5	161	210
3×70+1×35	14/2.56	0.28	1.1	1.9	32.1	2,705	0.268	3.5	204	257
3×95+1×50	19/2.56	0.28	1.1	2.1	36.4	3,662	0.193	3.5	252	310
3×120+1×70	24/2.56	0.28	1.2	2.2	40.9	4,653	0.153	3.5	291	351
3×150+1×70	30/2.56	0.28	1.4	2.3	44.3	5,527	0.124	3.5	333	393
3×185+1×95	37/2.56	0.28	1.6	2.5	49.7	7,078	0.0991	3.5	385	445
3×240+1×120	48/2.58	0.28	1.7	2.7	55.5	9,121	0.0754	3.5	457	516
3×300+1×150	60/2.58	0.28	1.8	2.9	61.2	11,284	0.0601	3.5	527	583
3×2.5+2×1.5	1/1.76	0.28	0.7	1.8	12.3	231	7.56	3.5	27	41
3×4+2×2.5	1/2.23	0.28	0.7	1.8	13.5	308	4.61	3.5	35	53
3×6+2×4	1/2.74	0.28	0.7	1.8	14.9	413	3.08	3.5	45	66
3×10+2×6	7/1.38	0.28	0.7	1.8	17.4	597	1.83	3.5	63	90
3×16+2×10	7/1.71	0.28	0.7	1.8	20.3	875	1.15	3.5	84	117
3×25+2×16	7/2.12	0.28	0.9	1.8	24.2	1,307	0.727	3.5	113	151
3×35+2×16	7/2.48	0.28	0.9	1.8	25.4	1,596	0.524	3.5	139	181
3×50+2×25	10/2.56	0.28	1	1.9	30.1	2,235	0.387	3.5	161	210
3×70+2×35	14/2.56	0.28	1.1	2	34.2	3,084	0.268	3.5	204	257
3×95+2×50	19/2.56	0.28	1.1	2.2	39.0	4,180	0.193	3.5	252	310
3×120+2×70	24/2.56	0.28	1.2	2.3	44.0	5,386	0.153	3.5	291	351
3×150+2×70	30/2.56	0.28	1.4	2.4	47.1	6,290	0.124	3.5	333	393
3×185+2×95	37/2.56	0.28	1.6	2.6	52.8	8,062	0.0991	3.5	385	445
3×240+2×120	48/2.58	0.28	1.7	2.8	58.9	10,350	0.0754	3.5	457	516
3×300+2×150	60/2.58	0.28	1.8	3	65.0	12,798	0.0601	3.5	527	583
4×2.5+1×1.5	1/1.76	0.28	0.7	1.8	12.5	243	7.56	3.5	27	41
4×4+1×2.5	1/2.23	0.28	0.7	1.8	13.7	325	4.61	3.5	35	53
4×6+1×4	1/2.74	0.28	0.7	1.8	15.2	437	3.08	3.5	45	66
4×10+1×6	7/1.38	0.28	0.7	1.8	18.1	644	1.83	3.5	63	90
4×16+1×10	7/1.71	0.28	0.7	1.8	20.9	937	1.15	3.5	84	117
4×25+1×16	7/2.12	0.28	0.9	1.8	25.1	1,412	0.727	3.5	113	151
4×35+1×16	7/2.48	0.28	0.9	1.8	26.7	1,800	0.524	3.5	139	181
4×50+1×25	10/2.56	0.28	1	1.9	31.4	2,474	0.387	3.5	161	210
4×70+1×35	14/2.56	0.28	1.1	2.1	36.3	3,462	0.268	3.5	204	257
4×95+1×50	19/2.56	0.28	1.1	2.2	40.9	4,663	0.193	3.5	252	310
4×120+1×70	24/2.56	0.28	1.2	2.4	45.9	5,961	0.153	3.5	291	351
4×150+1×70	30/2.56	0.28	1.4	2.5	50.0	7,127	0.124	3.5	333	393
4×185+1×95	37/2.56	0.28	1.6	2.7	56.1	9,047	0.0991	3.5	385	445
4×240+1×120	48/2.58	0.28	1.7	2.9	62.6	11,671	0.0754	3.5	457	516
4×300+1×150	60/2.58	0.28	1.8	3.1	68.9	14,442	0.0601	3.5	527	583

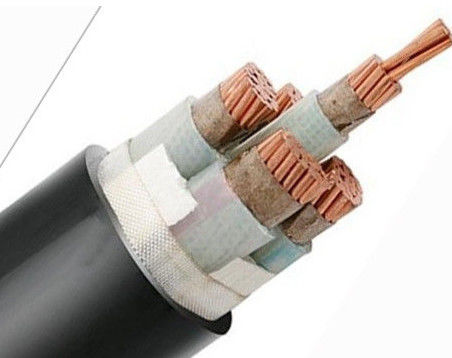

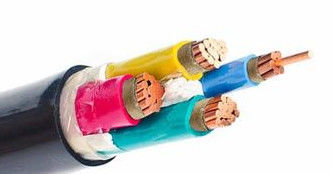

Black / Red Sheath Fire Retardant Cable , Fire Resistant Electrical Cable 0

Tag:

Place of Origin:	CHINA
Brand Name:	CHINT
Certification:	CE/SGS/ISO/KEMA
Model Number:	FR-CU/XLPE/PVC(LSOH)

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	wooden drum or iron *wooden drum
Supply Ability:	100km per month

Function:	Fire Resistant Or Fire Proof	Fire Resistant Layer:	Mica Tape Overlapped Wrapped On Conductor
Insulation:	XLPE	Sheath:	PVC Or LSOH
Marking:	Printing Or Embossing	Package:	Wooden Drum Or Iron-wooden Drum
Core Color:	Red Yellow Green Blue Or Black Or Yellow/green	Sheath Color:	Black Or Red
High Light:	fire resistant cable , fireproof electrical cable
