| Place of Origin: | CHINA |
|---|---|
| Brand Name: | CHINT |
| Certification: | CE/KEMA |
| Model Number: | CU/PVC/PVC |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | wooden drum or polywood drum |
| Supply Ability: | 1000km per month |
| Application: | Industrial Machine | Conductor: | Copper Class1 Or 2 Or 5 |
|---|---|---|---|
| Insulation: | PVC | Core Identification: | 5core And Below With Color ,and 6cores Or More With Number |
| Sheath: | PVC | Color: | Black Or Grey |
| Rated Voltage: | 450/750V | Standard: | IEC Or GB9330 |
| High Light: | armoured control cable,flexible control cable |
||

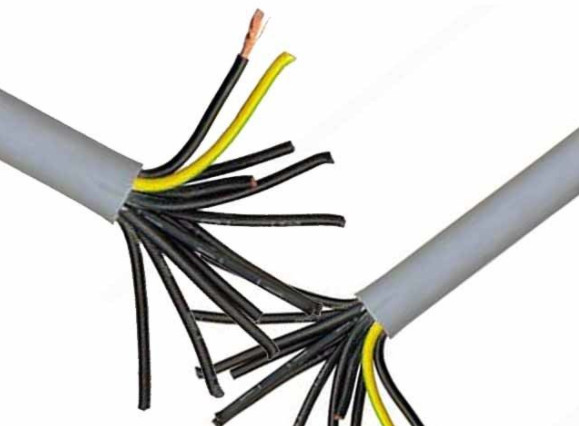

Flexible Control cable multi core signal cable 2.5mm with PVC insulated
Application: Flexible power, process control and instrumentation cable for industry and machinery environment with
Increased requirements to electromagnetic compatibility. The cable is resistant against most usual chemicals, oil and
Grease.

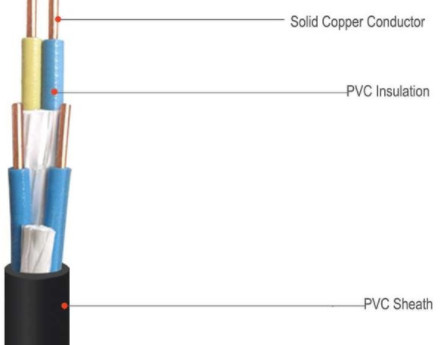

Specification
Conductor material: Bare copper
Conductor construction: Class 1 solid, Class 2 stranded, Class 5 Flexible
Insulation: PVC YI2
Inner sheath: PVC
Screen: Cu-braiding
Screen coverage: 70 %
Sheathing material: PVC TM2
Colour of outer sheath: Gray RAL 7001
Flame retardant: VDE 0482-332-1-2/IEC 60332-1
Maximum temperature at conductor: 70 ° C
Max. Operating temperature, fixed: -40 - +70 ° C
Temperature, moved/during installation: -5 - +70 ° C
Bending radius, fixed installation: 6 x DA
Bending radius, moved application: 20 x DA
Nominal voltage Uo: 300 V
Nominal voltage U: 500 V
Test voltage: 2 kV
Core identification: Gn-ye + numbers
Parameter Data
| Type | 0.6 / 1kv control cable Name | Section Area(mm2) | No. of Core | 0.6 / 1kv control cable Application Site |
| KVV | Copper Conductor,PVC Insulated and Sheathed Control Cable | 0.75 1.0 1.5 2.5 | 2-16 | Permanent installation indoors,in cable ditches or pipes |
| 4 6 | 2-14 | |||
| 10 | 2-10 | |||
| KVVP | Copper Conductor,PVC Insulated and Sheathed,Braiding Shielded Control Cable | 0.75 1.0 1.5 2.5 | 2-61 | Permanent installation indoors,in cable ditches or pipes where shielding is required |
| 4 6 | 2-14 | |||
| 10 | 2-10 | |||
| KVVP2 | Copper Conductor,PVC Insulated and Sheathed,Copper-tape Screened Control Cable | 0.75 1.0 1.5 2.5 | 4-10 | Permanent installation indoors,in cable ditches or pipes where shielding is required |
| 4 6 | 7-61 | |||
| 10 | 4-10 | |||
| KVV22 | Copper Conductor,PVC Insulated and Sheathed,Steel tape Armored Control Cable | 0.75 1.0 1.5 2.5 | 7-61 | Permanent installation indoors,in cable ditches,Be able to withstand stronger external mechanical force |
| 4 6 | 4-14 | |||
| 10 | 4-14 | |||
| KVVR | Copper Conductor,PVC Insulated and Sheathed,Flexible Control Cable | 0.5-2.5 | 4-61 | Installation indoors where flexibility and movability are required |
| KVVRP | Copper Conductor,PVC Insulated and Sheathed,Braiding shielded Flexible Control Cable | 0.5 0.75 1.0 | 4-61 | Installation indoors where flexibility shielding and movability are required |
| 1.5 2.5 | 4-48 | |||
| KYJV | Copper Conductor,XLPE Insulated and PVC Sheathed Control Cable | 0.75 1.0 1.5 2.5 | 2-16 | Permanent installation indoors,in cable ditches or pipes |
| 4 6 | 2-14 | |||
| 10 | 2-10 | |||
| KYJVP | Copper Conductor,XLPE Insulated,Braiding Shielded,PVC Sheathed Control Cable | 0.75 1.0 1.5 2.5 | 2-61 | Permanent installation indoors,in cable ditches or pipes where shielding is required |
| 4 6 | 2-14 | |||
| 10 | 2-10 | |||
| KYJV22 | Copper Conductor,XLPE Insulated,Steel-tape Armoured,PVC Sheathed Control Cable | 0.75 1.0 1.5 2.5 | 7-61 | Permanent installation indoors,in cable ditches,pipes or underground Be cable to with stand stronger external mechanical force |
| 4 6 | 4-14 | |||
| 10 | 4-10 | |||
| KYJVP2 | Copper Conductor,XLPE Insulated,Copper tape Screened,PVC Sheathed Control Cable | 0.75 1.0 1.5 2.5 | 7-61 | Permanent installation indoors,in cable ditches or pipes where shielding is required |
| 4 6 | 4-14 | |||
| 10 | 4-10 | |||
| KYJVR | Copper Conductor,XLPE Insulated,PVC Sheathed Flexible Control Cable | 0.5-2.5 | 4-61 | Installation indoors where flexibility and movability are required |
| KYJVRP | Copper Conductor,XLPE Insulated,Braiding Shielded,PVC Sheathed Flexible Control Cable | 0.5 0.75 1.0 | 4-61 | Installation indoors where flexibility shielding and movability are required |
