Overhead Power Distribution Aerial Power Cable Hard Drawing AL Conductor

Basic Information
Place of Origin: CHINA
Brand Name: CHINT
Certification: CE/SGS/ISO
Model Number: AL/XLPE(PVC/PE)
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: wooden drum
Supply Ability: 100km per month
Rated Voltage: 0.6/1kV Application: Overhead Power Distribution
Conductor: Hard Drawing AL Insulation: UV Resistant XLPE Or PVC

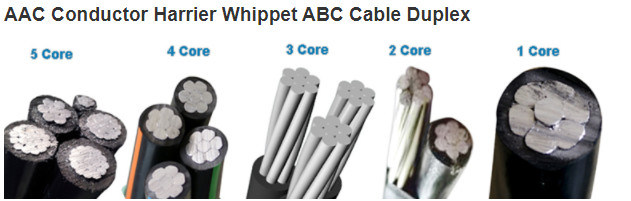

Core: One ,two Three Four Five Marking: With Rib Or Printing
High Light:

overhead aerial cable


aerial bunched cable

Why used Aluminium to make ABC ?


Because it is great at conducting a current and copper is expensive (so are the other alternatives like silver and gold)
Aluminium provies much better conductivity to weight ratio meaning copper is ofcourse the better conductor but it is also a lot heavier than aluminum.

Aluminium is 2.74g/cm³ and copper is 8.64 g/cm³ so copper is three times as heavier and if you used that in cables it would be reallly messed up and dangerous and costly as you would need better material or infrastructure to hold the copper wire in air compared to aluminium which is easy to hold in air and is less dense and would be suitable for electrical cables.




The aerial Bundled cables designed for overhead distribution lines have an insulated neutral messenger made of AAAC, which the insulated aluminium phase conductor are helically wound over it. Cables are rated at 0.6/1(1.2)kV and conform to IEC60502.


Aerial Bundle Cable (ABC cable) is a very innovative concept for overhead power distribution as compared to the conventional bare conductor overhead distribution system. It provides higher level of safety and reliability, lower power

losses and ultimate system economy by reducing installation,maintenance and operative cost. The cables are designed for aerial power lines and room-entrance wires with AC rated voltage 1kV and below.

GB/T12527,1179 ,IEC60502 ,NFC 33-209 ,BS 7870 ,ANSI/ICEA S-76-474 AS/NZS 3560.1 etc.
CHINT can also design and produce for special application requirement.
Products Type

Chinese Type Short time Description Application
Copper conductor Aluminum conductor

Covered line wire

Service drop cable

Secondary UD cable

PVC insulated aerial cables For aerial power transmission application
JKY JKLY,JKLHY PE insulated aerial cables
JKYJ JKLYJ,JKLHYJ XLPE insulated aerial cables
JKLGYJ Steel reinforced aluminium wire with XLPE insulated aerial cable For aerial power transmission application
For aerial power transmission application,able to bear moderate pulling force.

Production Range
Rated Voltage U0/U(Um) (kV) : 0.6/1(1.2) No. of cores : 1 , 2 , 3, 4 , 5, 3+1 , 4+1 ,3+2

Nominal cross-section(mm2): 10~240


Phase conductors :Round standed or compacted 1350-H19 aluminium or Copper conductor ,AAAC,ACSR
Neutral or messenger conductor :Round standed or compacted 6201 aluminium alloy or AAC ,,ACSR
Street lighting conductor: Round standed or compacted Aluminium conductor
Insulation : LDPE ,HDPE,XLPE ,PVC ( UV-resistant)
Note: The above provisions can be changed as order


Package: any kinds of package which can be compied with your required
