Multiple Core PVC Insulated Flexible Cable Compact Stranded Copper Conductor

Basic Information
Place of Origin: CHINA
Brand Name: CHINT
Certification: CE/CCC/ROSH
Model Number: 60227IEC52(RVV)
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 100m/roll or drum
Supply Ability: 1000km/month
Conductor: Class 5 As Per IEC 60228 Insulation Color: Red Black ,blue ,brown G/Y
Standard: IEC 60227-5:1997 Insulation: PVC
Marking: Printing Port: Shanghai
High Light:

pvc insulated copper wire

,

pvc insulated copper cable

Multiple Core Flexible Copper Conductor Electrical Wire With PVC Insulated wire



Description:

Polyvinyl chloride insulated cables of rated voltages up to and including 300/500 V——Flexible cables(cords)

Fixed laying power supply connection for Electrical equipment.



Constructions

Conductor : Compact stranded copper conductor, Cl.5 as per IEC 60228

Insulation : PVC(Polyvinyl chloride) rated at 70 ℃

Sheath: PVC(Polyvinyl chloride) rated at 70 ℃



Figure 1 Product structure sketch



Note:1- Conductor; 2- Insulation; 3- Sheath; 4- Filling rope; 5- Strapping tape.

Note:

Insulation identification as per standards or customer requirement



Applications

Indoor, distribution cabinet, electrical connection.



Standards

International: IEC 60227-5:1997

China: GB∕T 5023.5-2008

Other standards such as BS,VDE and ICEA upon request



Technical data

Rated voltage: See Table 3.

Max. Operating Temp.: 70 ℃.

Ambient Temp.: 20±10 ℃



Table 2 - Minimum recommended bending radii at cable temperature of (20±10)

Cable type Installations minimum bending radius
Cable diameter
mm
Cable diameter
mm
Cable diameter
mm
Cable diameter
mm
Flexible cable (thermoplastic, e.g. PVC) d≤8 8<d≤12 12<d≤20 d>20
Fixed installation 3 D 3 D 4 D 4 D
Free movement 5 D 5 D 6 D 6 D
At inlet of portable appliance or mobile equipment a 5 D 5 D 6 D 6 D
Under mechanical load b 9 D 9 D 9 D 10 D
Festooned c 10 D 10 D 11 D 12 D
Repeated reeling b 7 D 7 D 8 D 8 D
Deflected by pulleys b 10 D 10 D 10 D 10 D
D = the overall diameter of round cables or the smaller dimension of flat cables.
a No mechanical load on the cable
b See 5.6.2 of IEC 62440 with regard to dynamic stess.
c As in gantry cranes.



Table 3 - Technical Specifications

Cable type Strands No./Dia. Of Conductor Insulation Thickness Sheath Thickness Approx. O.D. Approx. Max. D.C Resistance of Conductor (20 ℃) Testing Voltage A.C Current Rating
Weight
/ pc/mm mm mm mm kg/km Ω /km kV/5min In Air(A)
60227 IEC 52(RVV) 300/300V 2×0.5 1/16/0.20 0.5 0.6 5.5 35 39 2000 9
60227 IEC 52(RVV) 300/300V 2×0.5 1/16/0.20 0.5 0.6 3.3×5.3 31 39 2000 9
60227 IEC 53(RVV) 300/500V 2×0.75 1/24/0.20 0.6 0.8 6.7 52 26 2000 11
60227 IEC 53(RVV) 300/500V 2×0.75 1/24/0.20 0.6 0.8 4.1×6.5 47 26 2000 11
60227 IEC 53(RVV) 300/500V 2×1 1/30/0.20 0.6 0.8 7 58 19.5 2000 13
60227 IEC 53(RVV) 300/500V 2×1 1/30/0.20 0.6 0.8 4.3×6.8 53 19.5 2000 13
60227 IEC 53(RVV) 300/500V 2×1.5 1/30/0.25 0.7 0.8 8 78 13.3 2000 17
60227 IEC 53(RVV) 300/500V 2×2.5 1/49/0.25 0.8 1 9.8 120 7.98 2000 24
60227 IEC 52(RVV) 300/300V 3×0.5 1/16/0.20 0.5 0.6 5.8 43 39 2000 7
60227 IEC 53(RVV) 300/500V 3×0.75 1/24/0.20 0.6 0.8 7.1 65 26 2000 8
60227 IEC 53(RVV) 300/500V 3×1 1/30/0.20 0.6 0.8 7.4 73 19.5 2000 10
60227 IEC 53(RVV) 300/500V 3×1.5 1/30/0.25 0.7 0.9 8.7 103 13.3 2000 11
60227 IEC 53(RVV) 300/500V 3×2.5 1/49/0.25 0.8 1.1 10.6 157 7.98 2000 18
60227 IEC 53(RVV) 300/500V 4×0.75 1/24/0.20 0.6 0.8 7.8 80 26 2000 -
60227 IEC 53(RVV) 300/500V 4×1 1/30/0.20 0.6 0.9 8.3 94 19.5 2000 -
60227 IEC 53(RVV) 300/500V 4×1.5 1/30/0.25 0.7 1 9.8 134 13.3 2000 -
60227 IEC 53(RVV) 300/500V 4×2.5 1/49/0.25 0.8 1.1 11.7 198 7.98 2000 -
60227 IEC 53(RVV) 300/500V 5×0.75 1/24/0.20 0.6 0.9 8.7 100 26 2000 -
60227 IEC 53(RVV) 300/500V 5×1 1/30/0.20 0.6 0.9 9 113 19.5 2000 -
60227 IEC 53(RVV) 300/500V 5×1.5 1/30/0.25 0.7 1.1 10.8 166 13.3 2000 -
60227 IEC 53(RVV) 300/500V 5×2.5 1/49/0.25 0.8 1.2 13 245 7.98 2000 -



Ordering Advice

Rated Voltage

Application Standard: IEC/BS/UL/GB

Number of Cores

Conductor Size & Construction

Type of Insulation

The Requirement of Sheath

Length of Cable & Packing Requirement

Other Requirement



PACKING AND SHIPPING

We are capable of meeting the strictest delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.

Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self-adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.

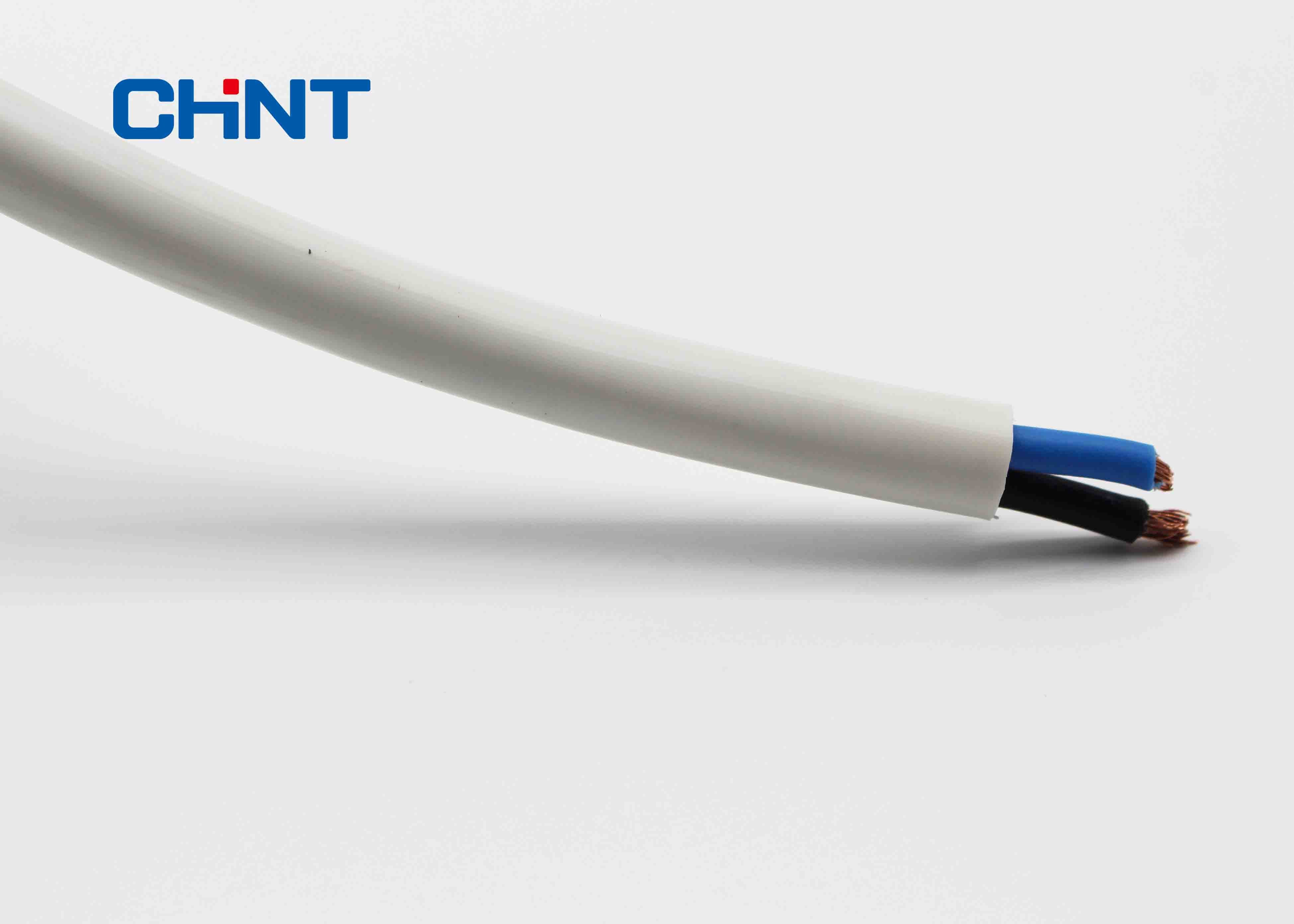

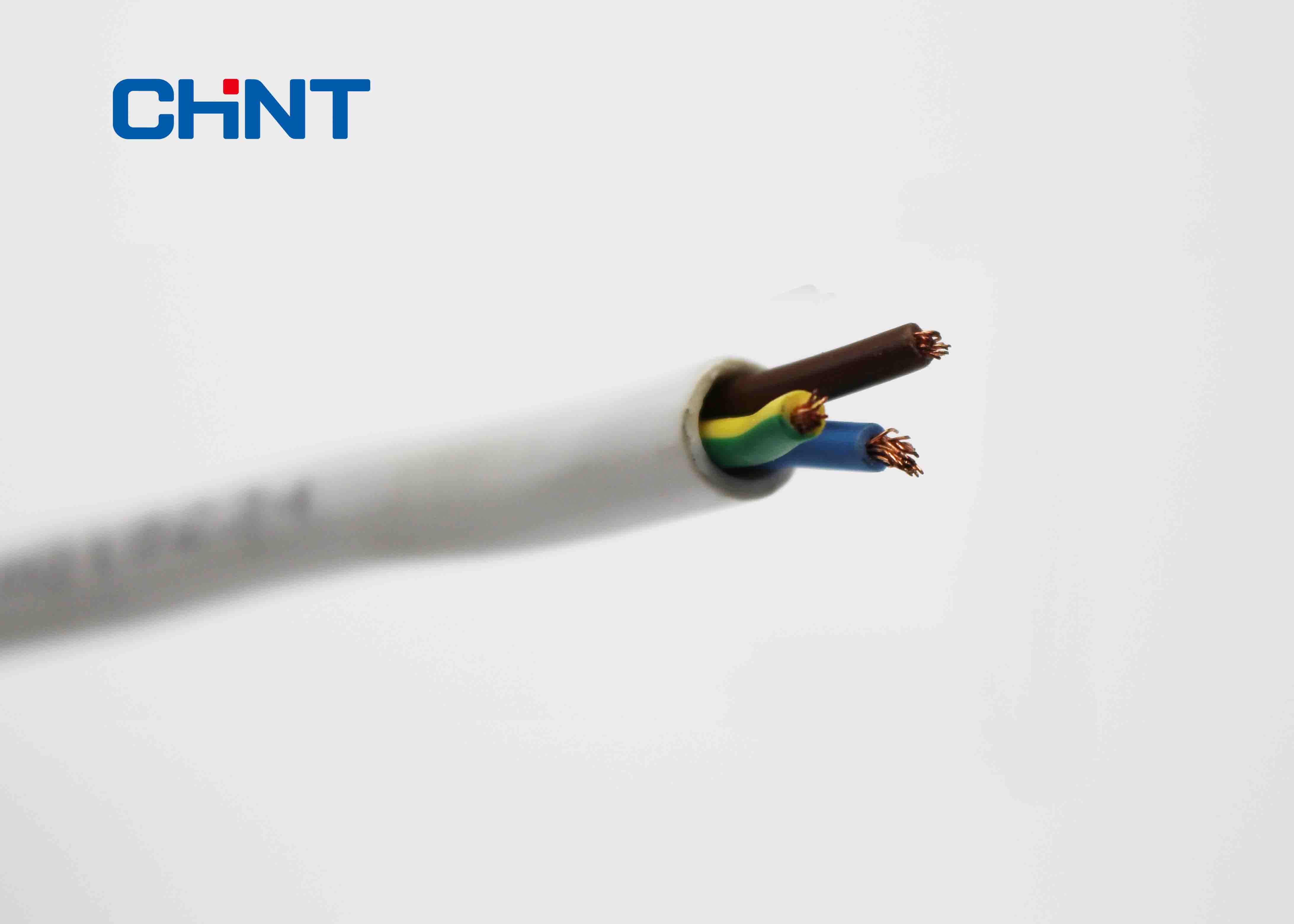

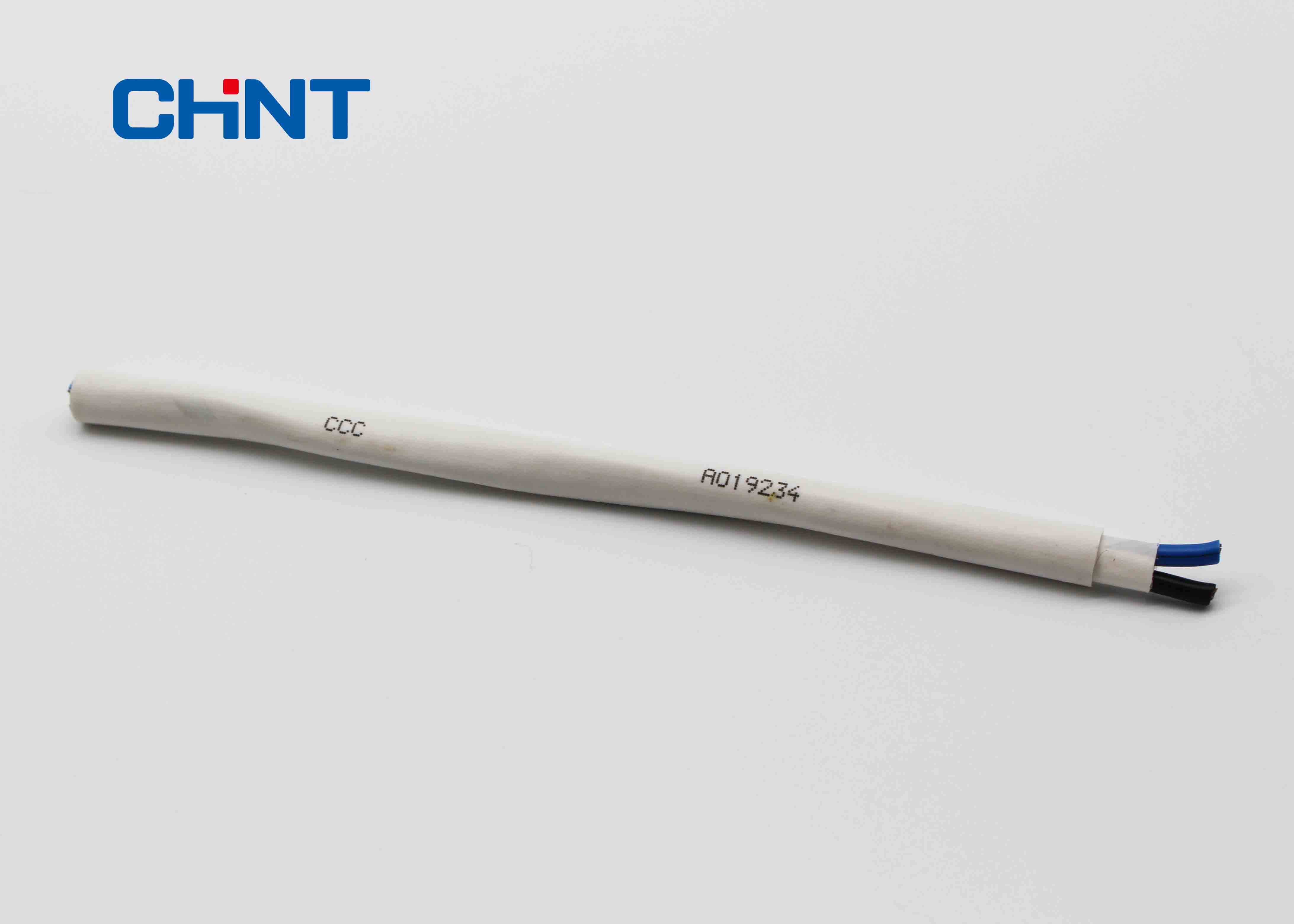

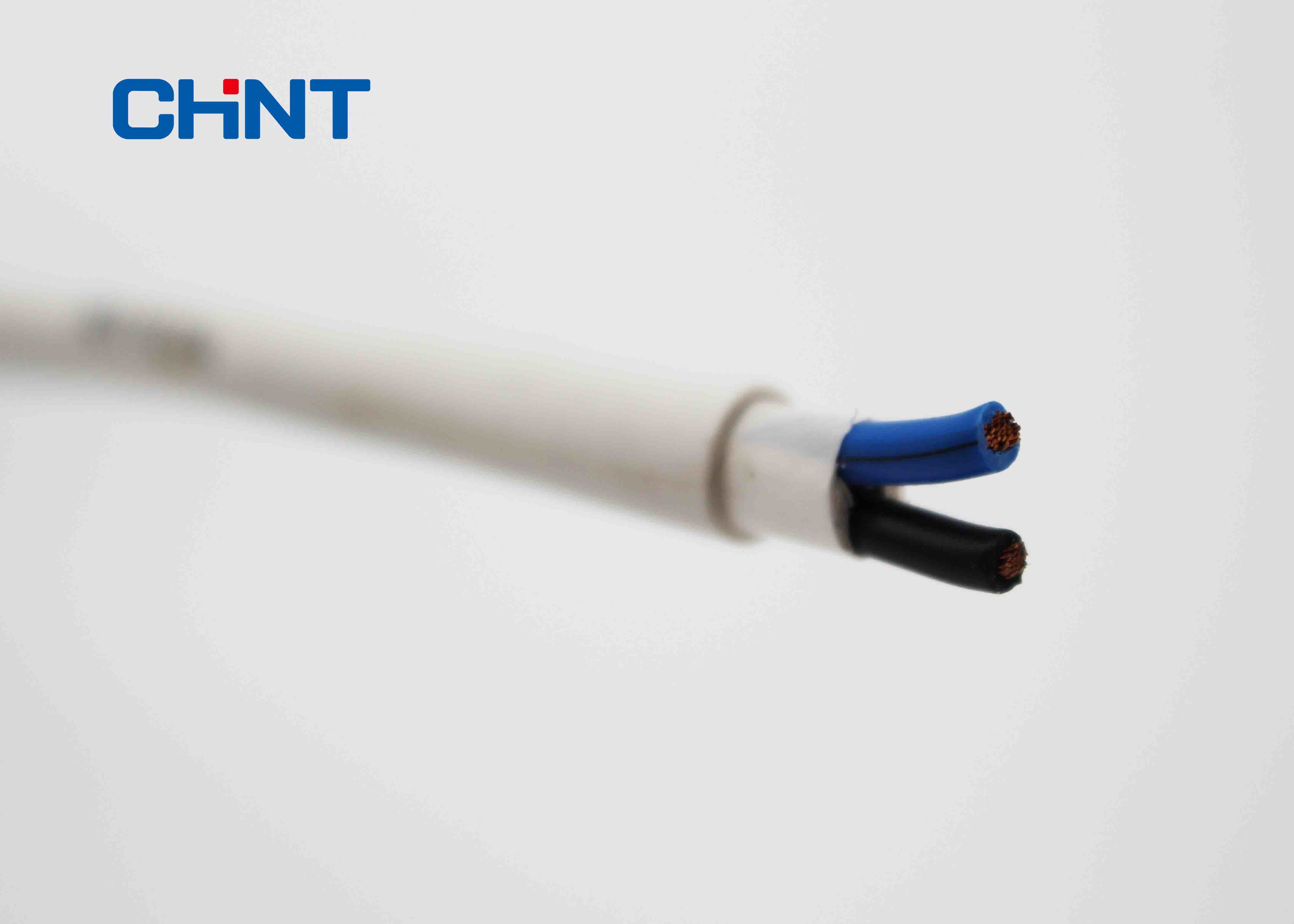

Product photo
