Bvvb Solid Copper Conductor Pvc Flat Sheath Multi - Core wires Standard BS6004

Basic Information
Place of Origin: CHINA
Brand Name: CHINT
Certification: CCC/CE/ROSH
Model Number: BVVB
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 100m per roll or drum
Supply Ability: 800km/month
Voltage: 300/500V Sheath Color: White Or Black
Package: 100m Per Roll Or Drum Marking: Printing With Black Color
Insulation Core: Red Black Or G/Y Standard: BS6004
High Light:

xlpe insulated power cable

,

xlpe insulated pvc sheathed cable

Bvvb Solid Copper Conductor Pvc Flat Sheath Multi - Core wires Standard S6004



Description:

Polyvinyl chloride insulated cables of rated voltages up to and including 450/750 V——Insulated cables and wires for fixed wiring

Fixed laying power supply connection for Electrical equipment.



Constructions

Conductor : Compact stranded copper conductor, Cl.1/Cl.2 as per IEC 60228

Insulation : PVC(Polyvinyl chloride) rated at 70 ℃

Sheath : PVC(Polyvinyl chloride) rated at 70 ℃



Figure 1 Product structure sketch



Note:1- Conductor;2- Insulation;3- Sheath.

Note:

Insulation identification as per standards or customer requirement



Applications

Indoor, distribution cabinet, electrical connection.



Standards

China: JB T 8734.2-2016

Other standards such as BS,VDE and ICEA upon request



Technical data

Rated voltage: See Table 3.

Max. Operating Temp.: 70 ℃.

Min. Ambient Temp.: 0 ℃



Table 2 - Minimum recommended bending radii at cable temperature of (20±10)

Cable type Installations minimum bending radius
Cable diameter
mm
Cable diameter
mm
Cable diameter
mm
Cable diameter
mm
Cable for fixed d≤8 8<d≤12 12<d≤20 d>20
Normal use 4 D 5 D 6 D 6 D
Careful bending at termination 2 D 3 D 4 D 4 D
D = the overall diameter of round cables or the smaller dimension of flat cables.


Table 3 - Technical Specifications

Cable type Rated voltage Strands No./Dia. Of Conductor Insulation Thickness Sheath Thickness Approx. O.D. Approx. Max. D.C Resistance of Conductor (20 ℃) Testing Voltage A.C
Weight
/ V pc/mm mm mm mm kg/km Ω /km kV/5min
BVVB 300/500V 2×1 300/500 1/1/1.13 0.6 0.9 4.3×6.8 57 18.1 2000
BVVB 300/500V 2×1.5 300/500 1/1/1.38 0.7 0.9 4.8×7.7 73 12.1 2000
BVVB 300/500V 2×2.5 300/500 1/1/1.76 0.8 1 5.7×9.1 103 7.41 2000
BVVB 300/500V 2×4 300/500 1/1/2.23 0.8 1 6.1×10.1 137 4.61 2000
BVVB 300/500V 2×4 300/500 1/7/0.85 0.8 1 6.5×10.7 144 4.61 2000
BVVB 300/500V 2×6 300/500 1/1/2.74 0.8 1.1 6.9×11.3 186 3.08 2000
BVVB 300/500V 2×6 300/500 1/7/1.03 0.8 1.1 7.2×12.0 196 3.08 2000
BVVB 300/500V 2×10 300/500 1/7/1.33 1 1.2 8.8×15.0 304 1.83 2000
BVVB 300/500V 3×1 300/500 1/1/1.13 0.6 0.9 4.3×9.2 80 18.1 2000
BVVB 300/500V 3×1.5 300/500 1/1/1.38 0.7 0.9 4.8×10.6 105 12.1 2000
BVVB 300/500V 3×2.5 300/500 1/1/1.76 0.8 1 5.7×12.6 148 7.41 2000
BVVB 300/500V 3×4 300/500 1/1/2.23 0.8 1 6.1×14.0 199 4.61 2000
BVVB 300/500V 3×4 300/500 1/7/0.85 0.8 1 6.5×15.0 208 4.61 2000
BVVB 300/500V 3×6 300/500 1/1/2.74 0.8 1.1 6.9×15.8 270 3.08 2000
BVVB 300/500V 3×6 300/500 1/7/1.03 0.8 1.1 7.2×16.8 285 3.08 2000
BVVB 300/500V 3×10 300/500 1/7/1.33 1 1.2 8.8×21.2 445 1.83 2000


Ordering Advice

Rated Voltage

Application Standard: IEC/BS/UL/GB

Number of Cores

Conductor Size & Construction

Type of Insulation

The Requirement of Sheath

Length of Cable & Packing Requirement

Other Requirement



PACKING AND SHIPPING

We are capable of meeting the strictest delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self-adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.

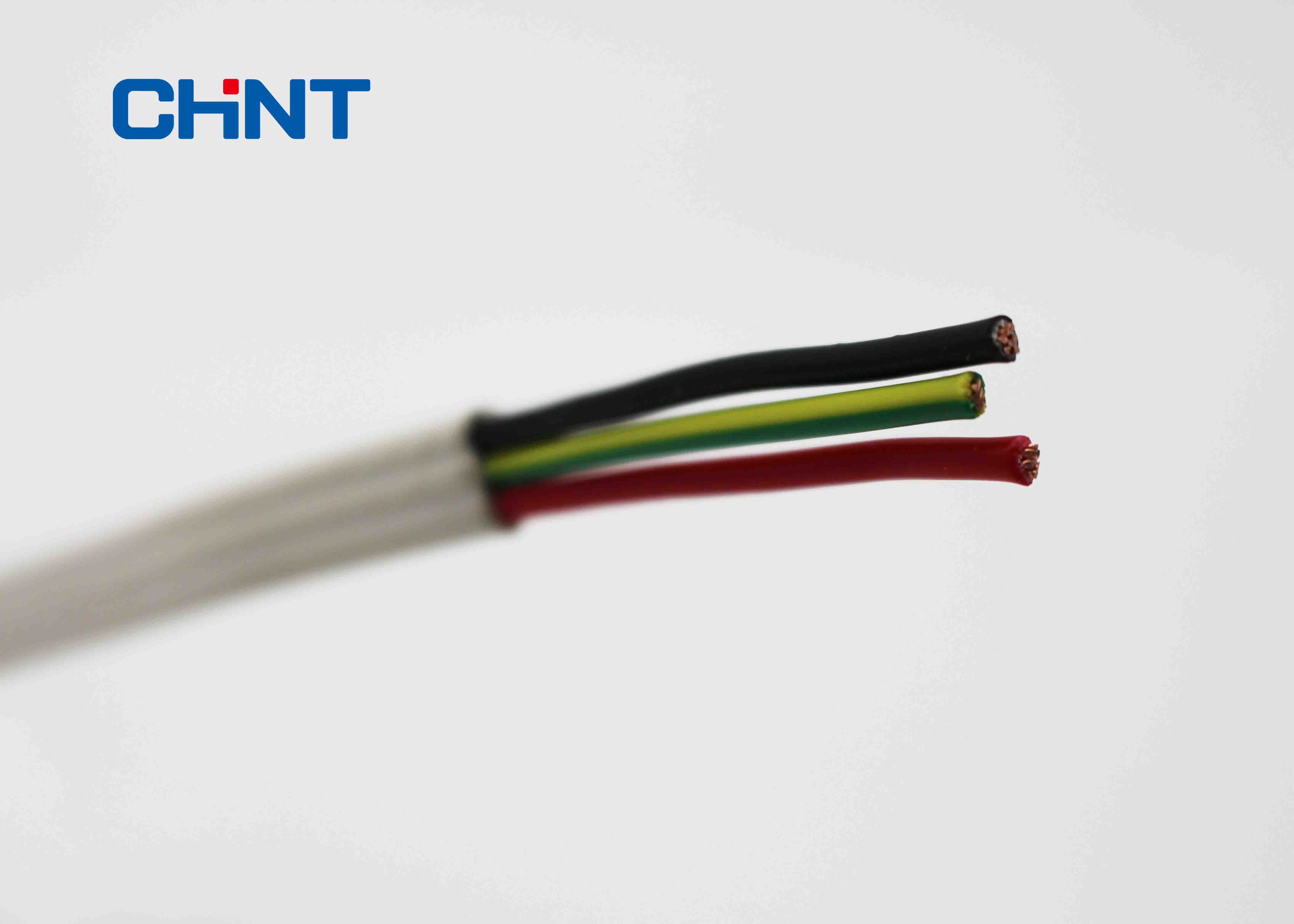

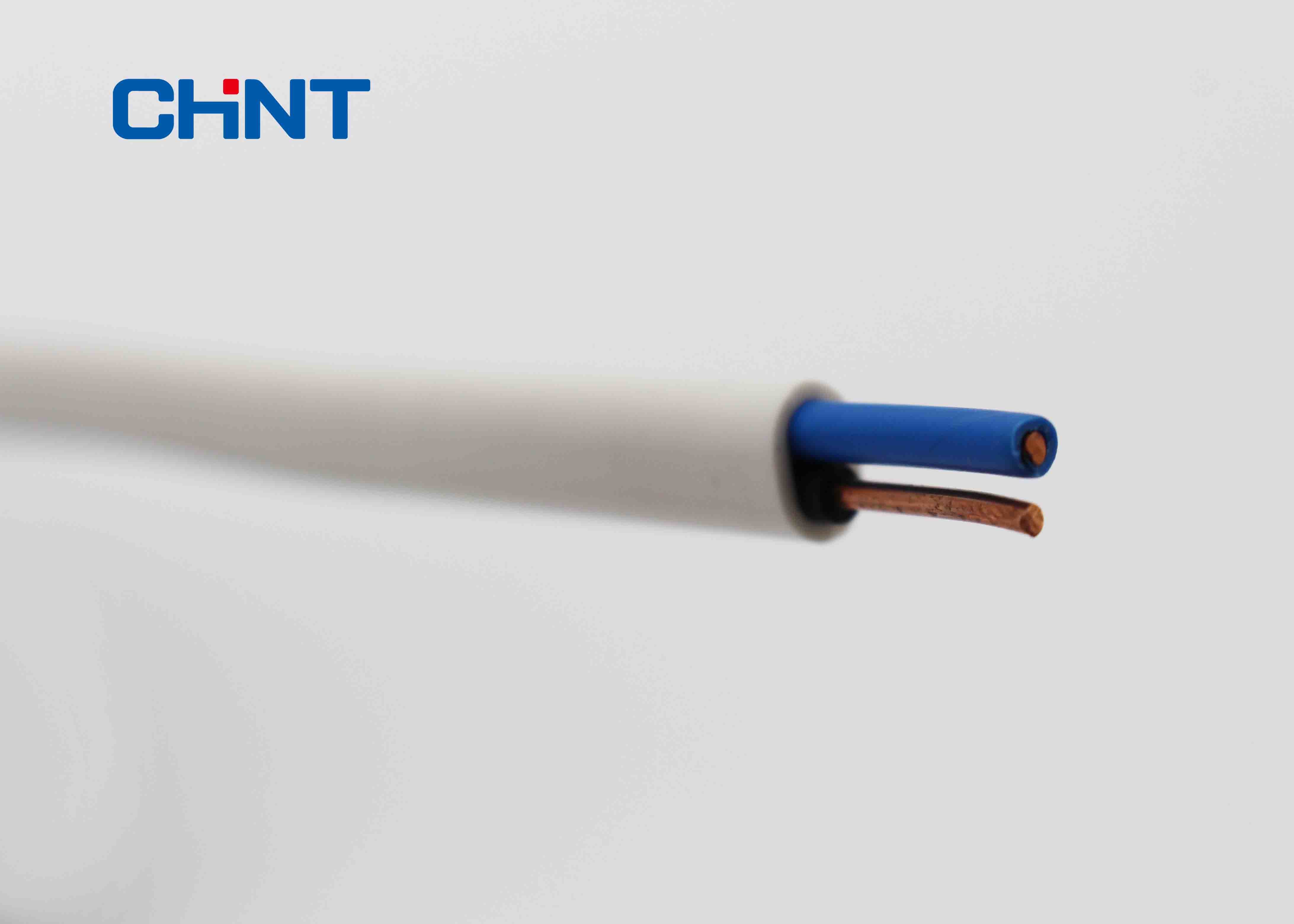

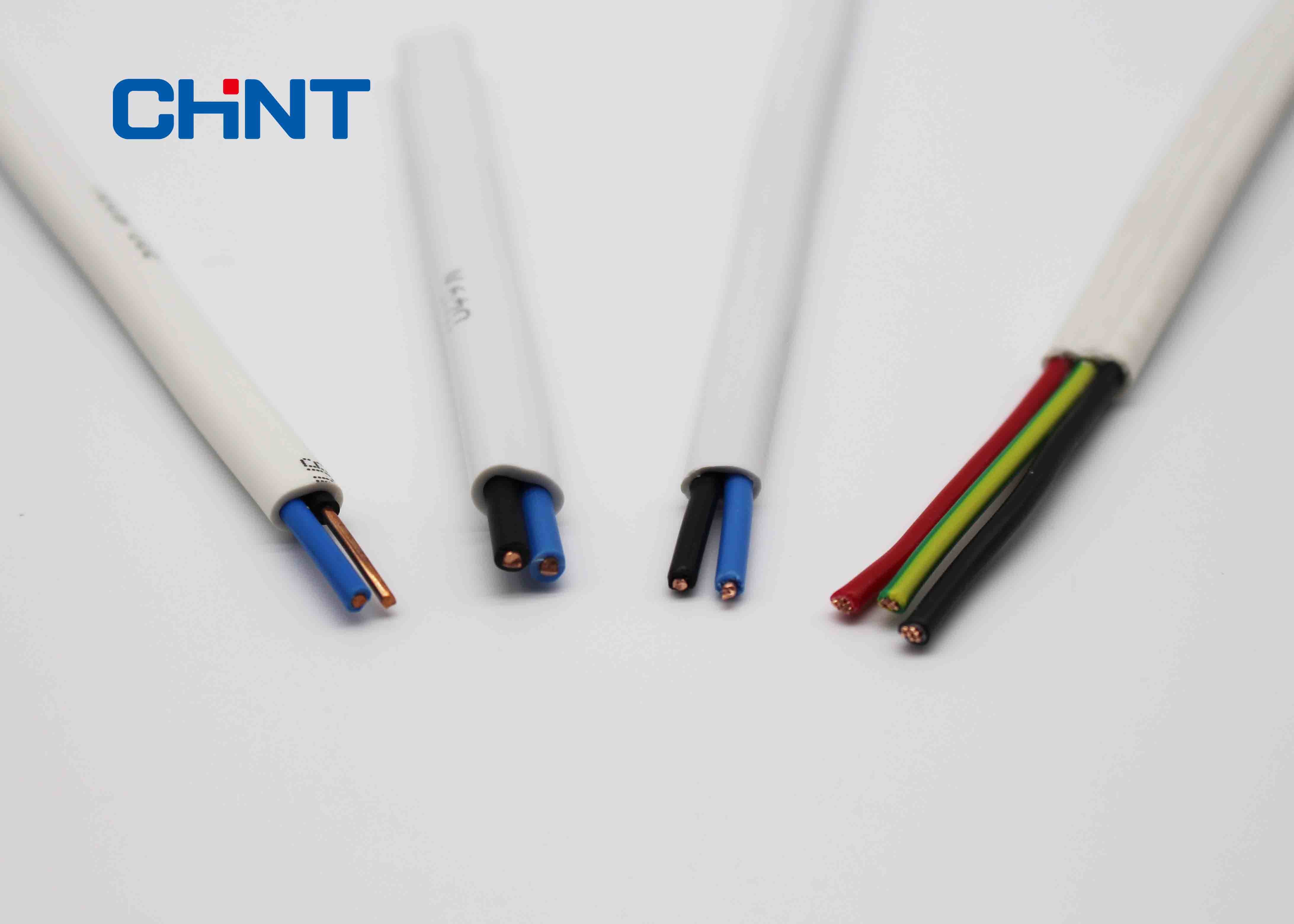

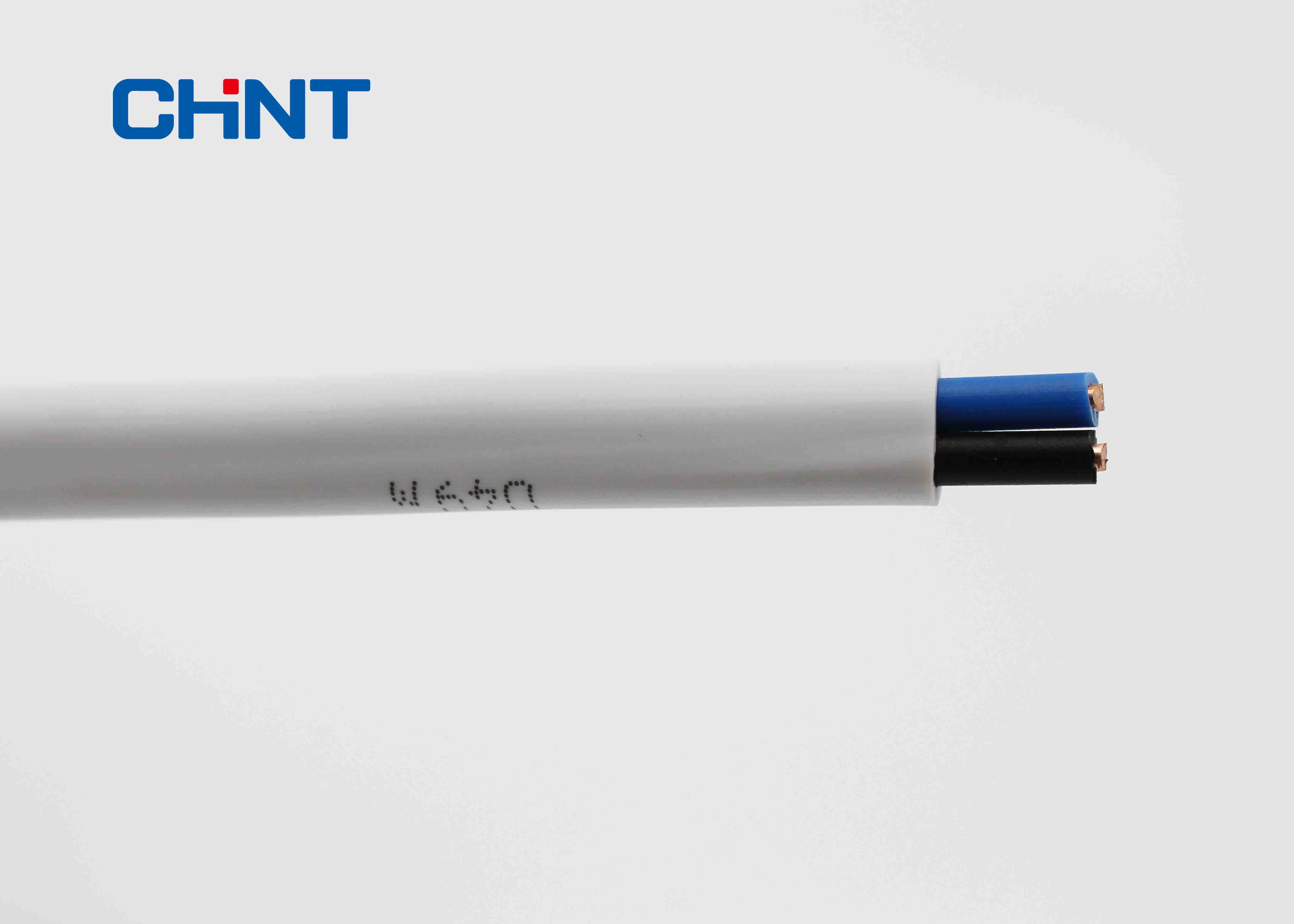

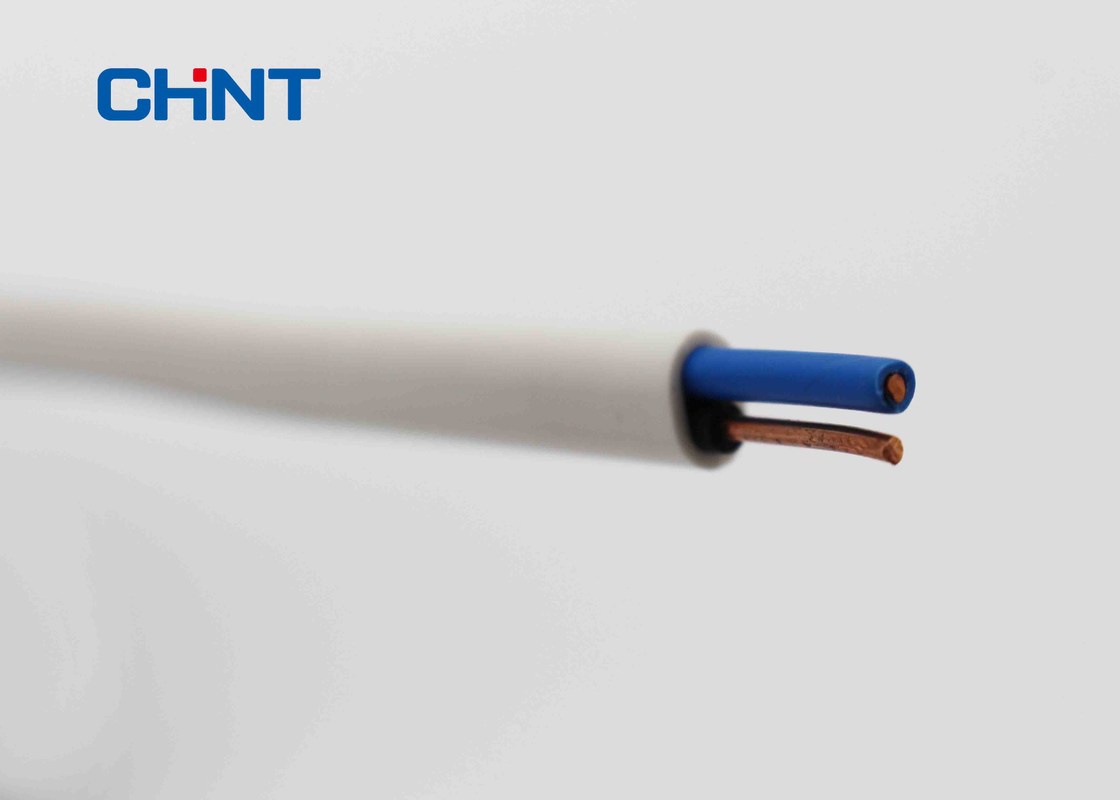

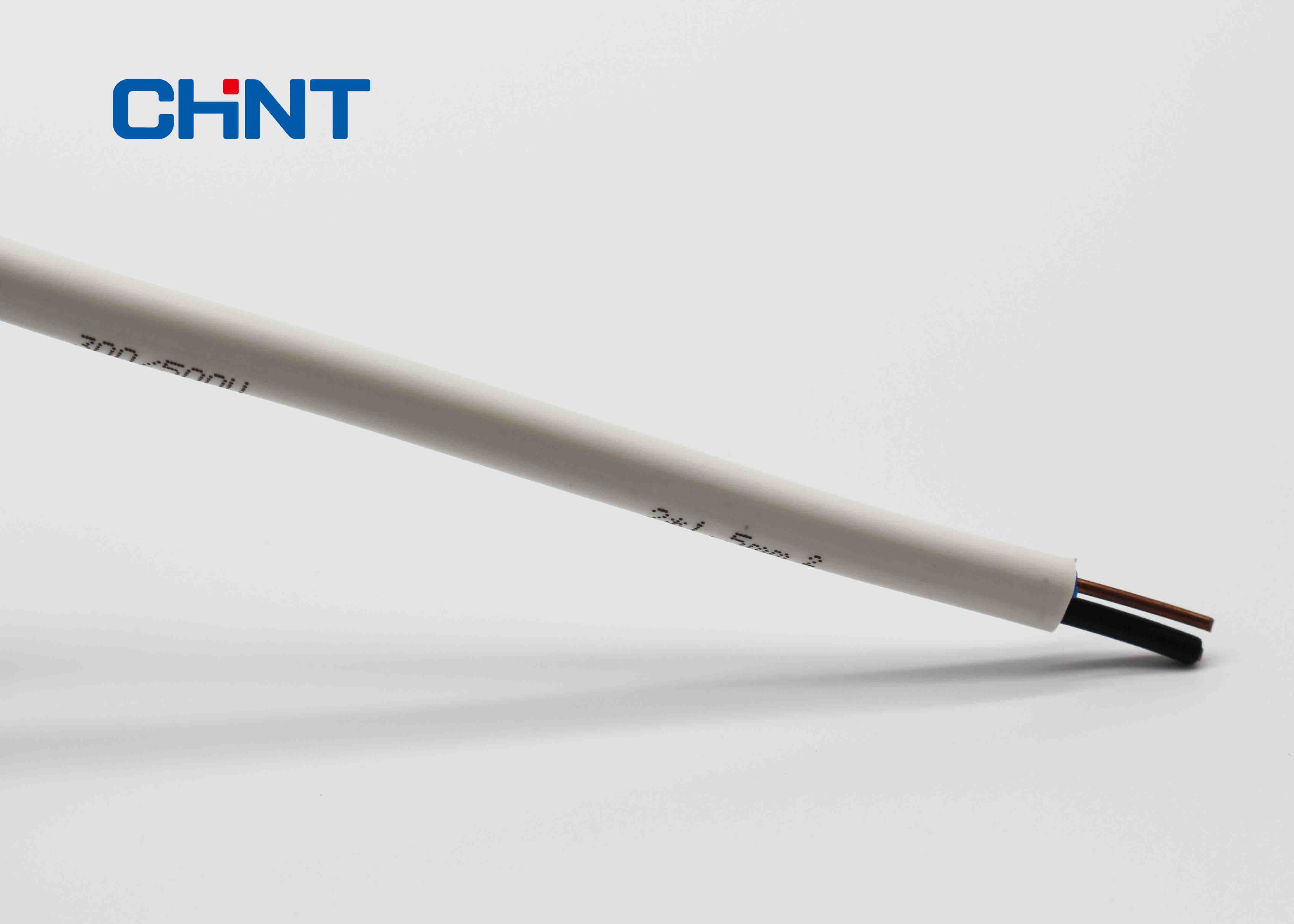

Product photo
Bvvb Solid Copper Conductor Pvc Flat Sheath Multi - Core wires Standard BS6004 0
