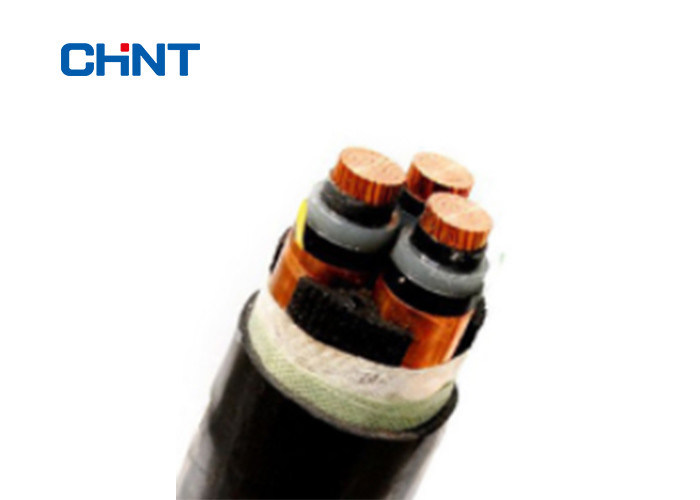

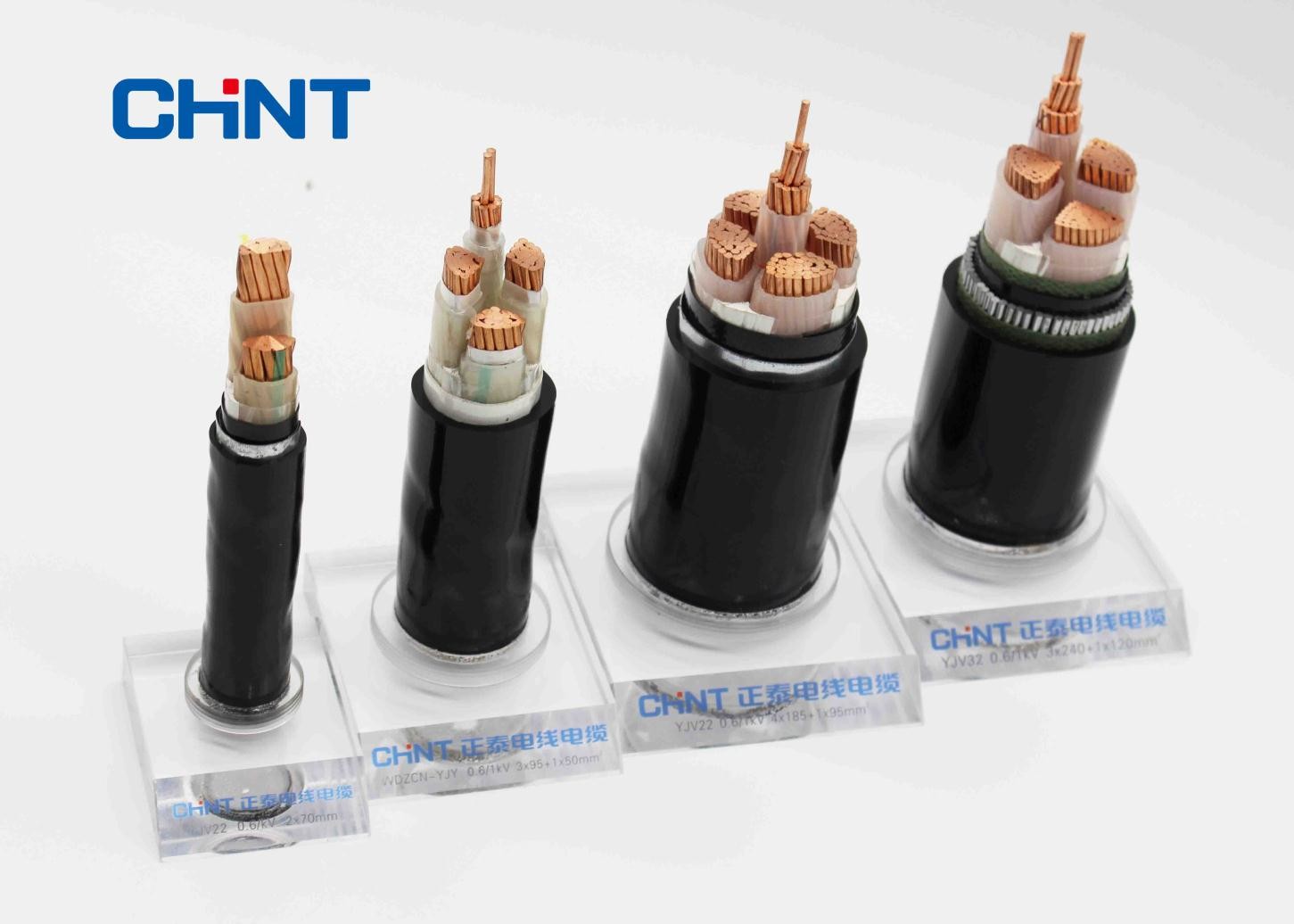

Medium Voltage 3 Core XLPE Cable 18/30KV Aluminum / Copper Conductor IEC 60502-2

Basic Information
Place of Origin: China
Brand Name: CHINT
Certification: KEMA/CE/SGS
Model Number: Cu /XLPE /CTS/PVC
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: iron with wooden or wood or iron
Supply Ability: 1000KM/Month
Type: Medium Voltage Port: Shanghai
Insulation Material: XLPE Conductor Material: Aluminum / Copper
Standard: IEC60502, IEC60228 HD620S1 Certification: KEMA/CE/SGS/CCC
High Light:

xlpe insulated power cable

,

xlpe insulated pvc sheathed cable

Cu/XLPE/Cts/PVC 50mm2 Power Cable 18/30KV 3cores IEC 60502-2



Detailed Product Description



Certificates

CE, SGS, KEMA and more others at request



Ordering Advice

Rated Voltage

Application Standard: IEC/BS/UL/GB

Number of Cores

Conductor Size & Construction

Type of Insulation

Armored or unarmored. If armor, the armor type & material

The Requirement of Sheath

Length of Cable & Packing Requirement

Other Requirement



Technical data

Rated voltage: 18/30 kV

Maximum Conductor Temperature: under normal (90 ℃), emergency (130℃) or short circuit no more than 5 s (250℃) conditions.

Min. Ambient Temp.: The cable shall be pre heated if the ambient temperature is below 0℃

Min. Bending Radius: single core cable 20(d+D)±5%

Multi-core cable 15(d+D)±5%



Note:

Insulation identification as per standards or customer requirement



Applications

Laying in room ,tunnel ,cable trench ,and pipes.



Standards

International: IEC 60502, IEC 60228

China: GB/T 12706.2-2008

Other standards such as BS,VDE and ICEA upon request

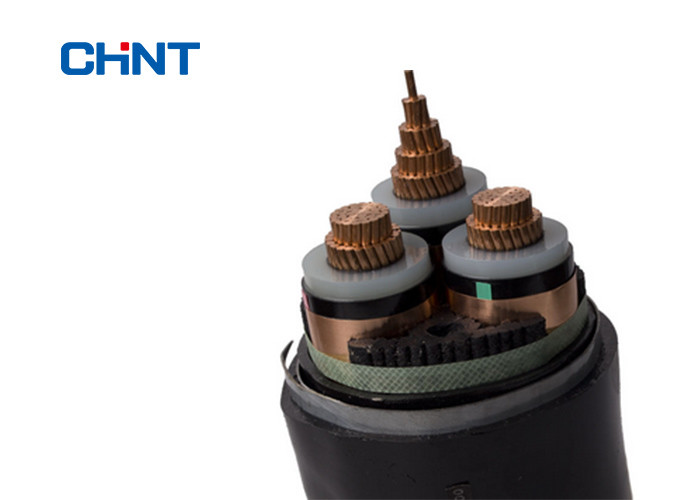

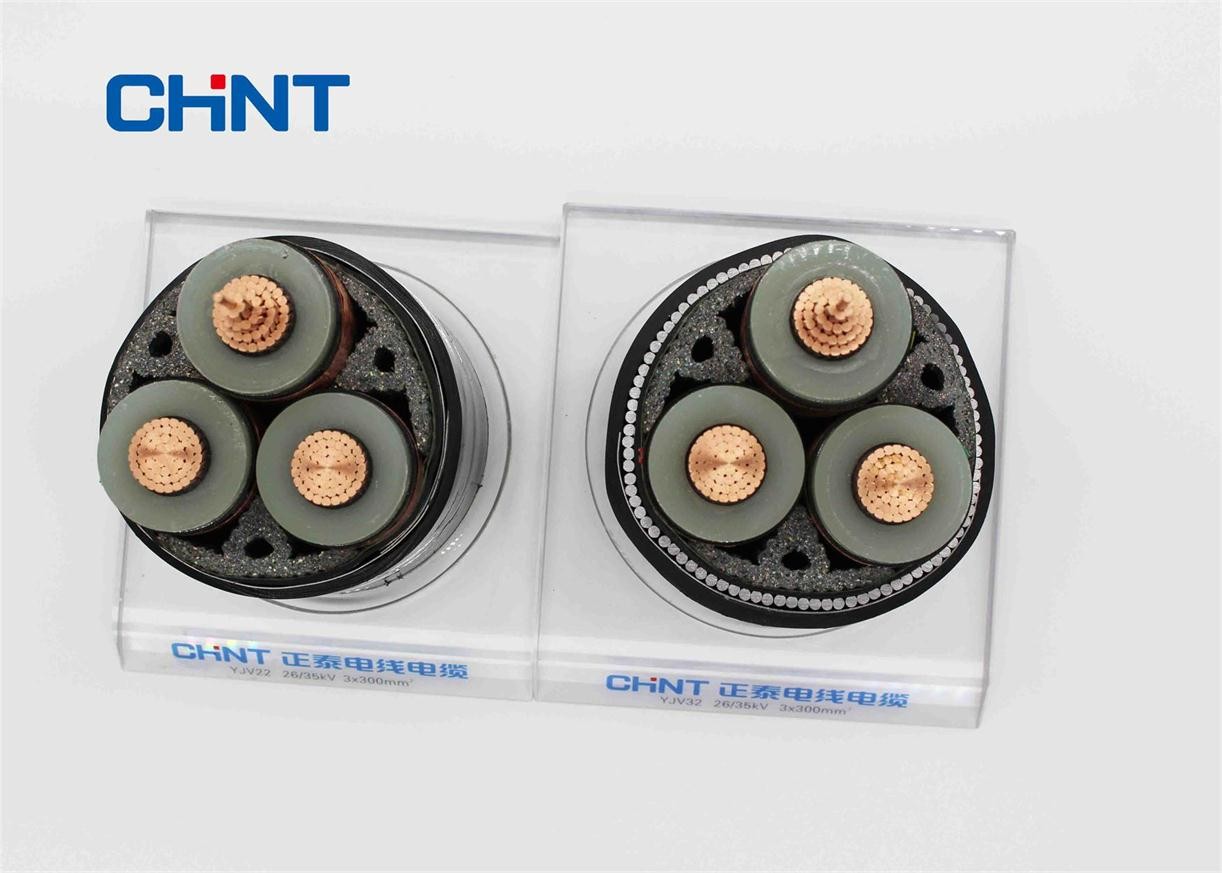

Construction

Conductor : Compact stranded copper conductor, Cl.2 as per IEC 60228

Conductor Screen: Semi-conductor

Insulation : XLPE(cross-linked polyethylene) rated at 90 ℃

Insulation Screen: Semi-conductor

Screen : Copper tape

Sheath : PVC type ST2 to IEC 60502, black



Technical Specifications



Nom. Cross-section of conductor Strands No./Dia. Of Conductor Insulation Thickness Thickness of Copper Strip Sheath Thickness Approx. O.D. Approx. Max. D.C Resistance of Conductor (20 ℃) Testing Voltage A.C Current Rating
Weight In air (A) In soil(A)
1×50 19/1.86+0.01 8.0 0.12 2.0 33.4 1368 0.387 72 245 225
1×70 14/2.56+0.01 8.0 0.12 2.0 35.1 1625 0.268 72 305 275
1×95 19/2.56+0.02 8.0 0.12 2.1 36.9 1943 0.193 72 370 330
1×120 24/2.56+0.02 8.0 0.12 2.1 38.4 2223 0.153 72 425 375
1×150 30/2.56+0.01 8.0 0.12 2.2 40.0 2543 0.124 72 485 420
1×185 37/2.56+0.02 8.0 0.12 2.2 41.8 2964 0.0991 72 555 475
1×240 48/2.58+0.02 8.0 0.12 2.3 44.2 3592 0.0754 72 650 555
1×300 60/2.58+0.02 8.0 0.12 2.4 46.6 4245 0.0601 72 745 630
1×400 60/2.93+0.02 8.0 0.12 2.5 49.7 5199 0.047 72 870 720
1×500 60/3.33+0.02 8.0 0.12 2.6 53.1 6267 0.0366 72 1000 825
1×630 60/3.76+0.02 8.0 0.12 2.7 56.7 7685 0.0283 72 1160 940
3×50 19/1.86+0.01 8.0 0.10 3.1 69.4 4789 0.387 72 185 200
3×70 14/2.56+0.01 8.0 0.10 3.2 73.3 5664 0.268 72 230 250
3×95 19/2.56+0.02 8.0 0.10 3.3 76.9 6679 0.193 72 280 300
3×120 24/2.56+0.02 8.0 0.10 3.5 80.6 7659 0.153 72 310 330
3×150 30/2.56+0.01 8.0 0.10 3.6 83.8 8677 0.124 72 360 380
3×185 37/2.56+0.02 8.0 0.10 3.7 87.9 10076 0.0991 72 400 425
3×240 48/2.58+0.02 8.0 0.10 3.8 92.8 12073 0.0754 72 470 490
3×300 60/2.58+0.02 8.0 0.10 4.0 97.9 14188 0.0601 72 540 555
3×400 60/2.93+0.02 8.0 0.10 4.2 104.6 17261 0.047 72 610 625



PACKING AND SHIPPING

We are capable of meeting the strictest delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.

Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self-adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.
