|Core:||3 Or 4 Or 5||Port:||Shanghai|
|Rated Voltage:||450/750V||Insulation Material:||Rubber|
rubber sheathed flexible cable,
rubber insulated power cables

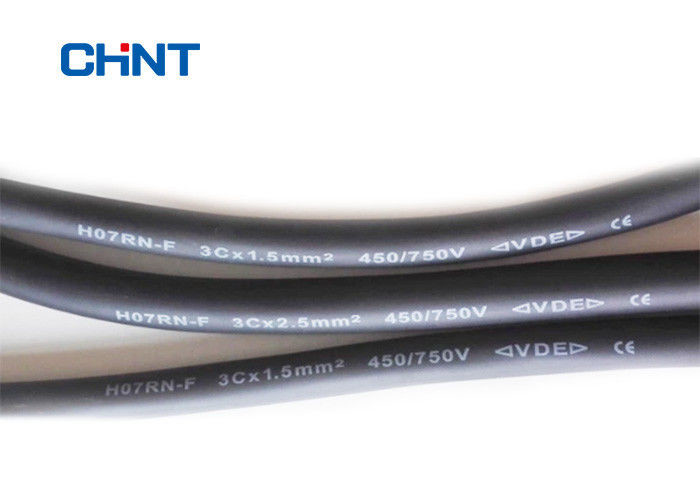

H07RN-F 450/750V EPR/Neoprene Trailing CPE Sheath Flexible Rubber Cable
H07RN-F Cable Technical Data:
H07RN-F Cable Ratings & Approvals:
H07RN-F Cable Construction:
H07RN-F model rated voltage U0/U IS 450/750V
H05RN-F model rated voltage U0/U IS 300/500V
H05RR-F model rated voltage U0/U IS 300/500V
Long time allow working temperature of wire core cant be higher than 60C
|HAR Code||IEC||Description||Voltage Design||Cores|
|H05RR-F||60245IEC 53(YZ)/YZ||Ordinary rubber sheathed cord||300/500V||2~6|
|H05RN-F||60245 IEC 57(YZW)/YZW||Ordinary polychloroprene or other equivalent synthetic elastomer sheathed cord||300/500V||2~6|
|H07RN-F||60245 IEC 66(YCW)/YC||Heavy polychloroprene or other equivalent synthetic elastomer sheathed flexible cable||450/750V||
|H01N2-D||60245 IEC 81(YH)||Rubber sheathed arc-welding electrode cable||100/100V||10-120|
|polychloroprene or other equivalent synthetic elastomer sheathed arc-welding electrode cable||100/100V||10-120|
The Product Model & Specification
|Core no. x Nominal sectional area (mm2)||Pcs./Wire dia. (mm)||Insulation thickness(mm)||
|Average outer dia.(mm)||Weight Reference kg/km||
Max DC resistance of conductor at20°C
Different package for customer choose !
Our electrical cable export packing is specially made to ensure that the quality of the products will be not affected during the transportation. Our electrical cable is using electrical cable wheel for the packing, the wheel can be all steel, steel frame and fumigated wood, or fumigated wooden cases. We are using different packing for different length of the cable, to ensure there will be no problem during the delivery of the products.
1. If the diameter of the wheel is longer than 2 meters, we are using all steel wheel to pack the products
2. If the diameter of the wheel is between 1.4meters to 1.8meters, we are using steel frame and fumigated wood to pack the products.
3. If the diameter of the wheel is less than 1.4meters, we will use the fumigated wooden wheel to pack the products
4. For the packing of the electrical wires and small quantity of cables, we will use the fumigated wooden box to pack.
