| Place of Origin: | CHINA |
|---|---|
| Brand Name: | CHINT |
| Certification: | CE/SGS/KEMA |
| Model Number: | LSZH(WDZR-YJY) |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Wooden drum/iorn drum |
| Supply Ability: | 500km/month |
| Standard: | IEC60502.2 IEC60332-3 Or IEC60754 | Laying: | Tunnel Or Directly Buried |
|---|---|---|---|
| Sheath: | LSOH Material | Core Identification: | Red Yellow Green |
| Rated Voltage: | 12/20kV | Filler: | PP Or FR-PP |
| Highlight: | lszh power cables,lszh fire resistant cable |
||

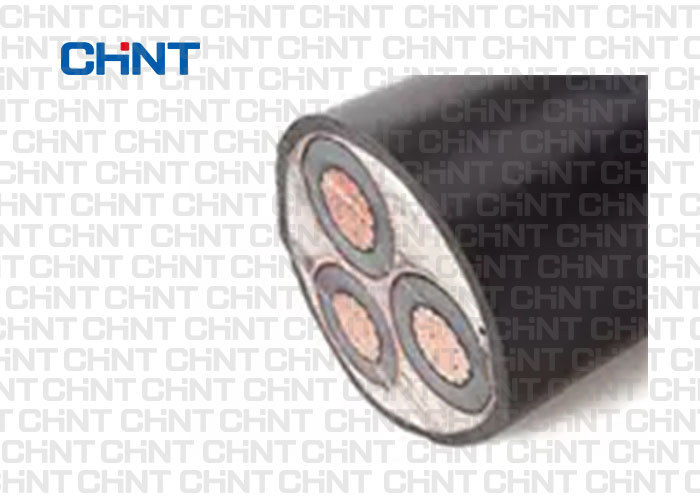

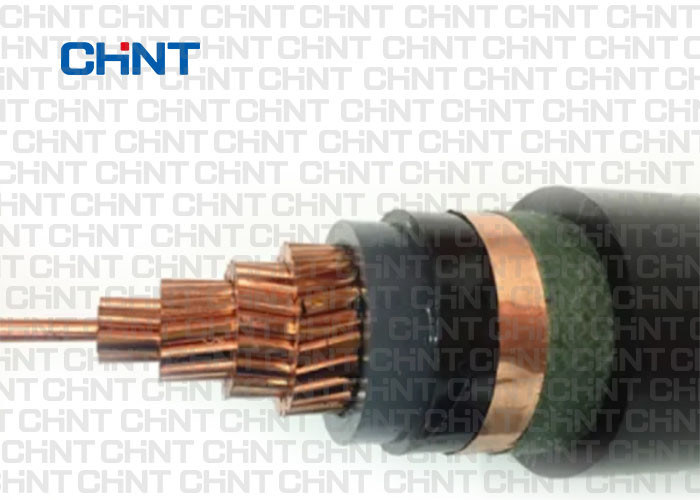

3 Phase Flame Retardant LSZH Cables copper Conductor XLPE Insulated Zero Halogen MV Cable
Detailed Product Description
Standards
Other Equivalent standards for PVC insulated power cable
Certificates
CE, SGS, KEMA and more others at request
Note:
Insulation identification as per standards or customer requirement
Applications
Laying in room ,tunnel ,cable trench ,and pipes.

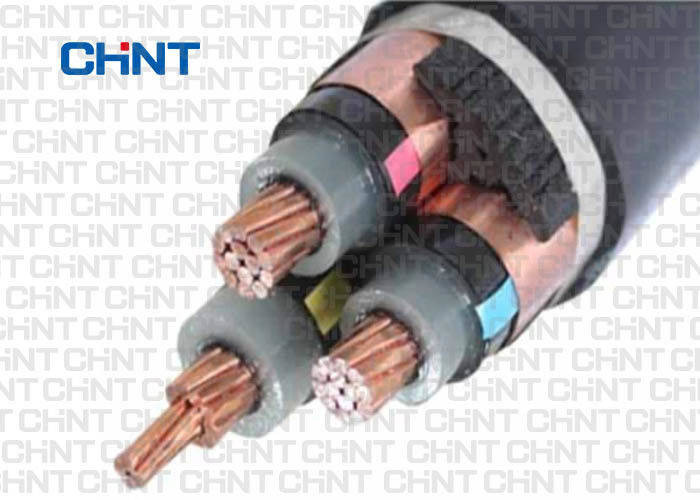

Constructions
Conductor : Compact stranded copper conductor, Cl.2 as per IEC 60228
Conductor Screen: Semi-conductor
Insulation : XLPE(cross-linked polyethylene) rated at 90 ℃
Insulation Screen: Semi-conductor
Screen : Copper tape
Sheath : LSOH Flame Retardant Polyolefin, black
Technical data
Rated voltage: 12/20 kV
Maximum Conductor Temperature: under normal (90 ℃), emergency (130℃) or short circuit no more than 5 s (250℃) conditions.
Min. Ambient Temp.: The cable shall be pre heated if the ambient temperature is below 0℃
Min. Bending Radius: single core cable 20(d+D)±5%
Multi-core cable 15(d+D)±5%
Technical Specifications
| Nom. Cross-section of conductor | Strands No./Dia. Of Conductor | Insulation Thickness |
Thickness of Copper Strip | Sheath Thickness | Approx. O.D. | Approx. | Max. D.C Resistance of Conductor (20 ℃) | Testing Voltage A.C | Current Rating | |
| Weight | In air (A) | In soil(A) | ||||||||
| 1×35 | 7/2.56+0.01 | 5.5 | 0.12 | 1.8 | 25.9 | 908 | 0.524 | 48 | 205 | 190 |
| 1×50 | 19/1.86+0.01 | 5.5 | 0.12 | 1.8 | 27.2 | 1063 | 0.387 | 48 | 245 | 225 |
| 1×70 | 14/2.56+0.01 | 5.5 | 0.12 | 1.8 | 28.9 | 1305 | 0.268 | 48 | 305 | 275 |
| 1×95 | 19/2.56+0.02 | 5.5 | 0.12 | 1.9 | 30.7 | 1606 | 0.193 | 48 | 370 | 330 |
| 1×120 | 24/2.56+0.02 | 5.5 | 0.12 | 1.9 | 32.2 | 1873 | 0.153 | 48 | 430 | 375 |
| 1×150 | 30/2.56+0.01 | 5.5 | 0.12 | 2.0 | 33.8 | 2178 | 0.124 | 48 | 490 | 425 |
| 1×185 | 37/2.56+0.02 | 5.5 | 0.12 | 2.0 | 35.6 | 2583 | 0.0991 | 48 | 560 | 480 |
| 1×240 | 48/2.58+0.02 | 5.5 | 0.12 | 2.1 | 38.0 | 3190 | 0.0754 | 48 | 665 | 555 |
| 1×300 | 60/2.58+0.02 | 5.5 | 0.12 | 2.2 | 40.4 | 3821 | 0.0601 | 48 | 765 | 630 |
| 1×400 | 60/2.93+0.02 | 5.5 | 0.12 | 2.3 | 43.5 | 4747 | 0.047 | 48 | 890 | 725 |
| 1×500 | 60/3.33+0.02 | 5.5 | 0.12 | 2.4 | 46.9 | 5963 | 0.0366 | 48 | 1030 | 825 |
| 1×630 | 60/3.76+0.02 | 5.5 | 0.12 | 2.5 | 50.5 | 7362 | 0.0283 | 48 | 1200 | 950 |
| 3×35 | 7/2.56+0.01 | 5.5 | 0.10 | 2.6 | 52.7 | 3274 | 0.524 | 48 | 140 | 155 |
| 3×50 | 19/1.86+0.01 | 5.5 | 0.10 | 2.7 | 56.1 | 3850 | 0.387 | 48 | 165 | 180 |
| 3×70 | 14/2.56+0.01 | 5.5 | 0.10 | 2.8 | 60.0 | 4689 | 0.268 | 48 | 210 | 220 |
| 3×95 | 19/2.56+0.02 | 5.5 | 0.10 | 3.0 | 63.8 | 5696 | 0.193 | 48 | 255 | 265 |
| 3×120 | 24/2.56+0.02 | 5.5 | 0.10 | 3.1 | 67.3 | 6615 | 0.153 | 48 | 290 | 300 |
| 3×150 | 30/2.56+0.01 | 5.5 | 0.10 | 3.2 | 70.5 | 7605 | 0.124 | 48 | 330 | 340 |
| 3×185 | 37/2.56+0.02 | 5.5 | 0.10 | 3.3 | 74.6 | 8972 | 0.0991 | 48 | 375 | 380 |
| 3×240 | 48/2.58+0.02 | 5.5 | 0.10 | 3.5 | 79.7 | 10967 | 0.0754 | 48 | 435 | 435 |
| 3×300 | 60/2.58+0.02 | 5.5 | 0.10 | 3.6 | 84.6 | 13010 | 0.0601 | 48 | 493 | 485 |
| 3×400 | 60/2.93+0.02 | 5.5 | 0.10 | 3.8 | 91.3 | 16041 | 0.047 | 48 | 565 | 520 |
PACKING AND SHIPPING
All cable for exporting is well packed and protected by wooden drum or Wood and Steel Drum.
The packing material is depended on the weight and size of cable.
The good information, manufacture information, and the client's information is firmly printed on each size of drum.
After the well packed cable drums sent to Sea Port, they are loaded into 20 FT container or 40 FT container. All cable drum are firmly fixed by safety belt to make sure, no movement during the sea freight.
The size of the container is chosen according to weight of total loaded goods or as per the client's requirement.
