Underground LSZH Power Cables , MV Power Cable Rated Voltage 8.7/15kV

Basic Information
Place of Origin: CHINA
Brand Name: CHINT
Certification: CE/SGS/KEMA
Model Number: LSZH(WDZR-YJY23)
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden drum/iorn drum
Supply Ability: 500km/month
Laying: Tunnel Or Directly Buried Conductor: Class 2 Compacted Round
Process: Three Layer Co-extruded CCV Producing Line Standard: IEC60502.2 IEC60332-3 Or IEC60754
Armor: Steel Wire Port: Shanghai
High Light:

lszh power cables

,

lszh fire resistant cable

Underground MV power cable with cu/XLPE/CTS/LSOH/SWA/LSOH rated voltage 8.7/15kV

Detailed Product Description

Standards
International: IEC 60502, IEC 60228, IEC 60332, IEC 60754
China: GB∕T 12706.2-2008, GB∕T 19666-2005
Other standards such as BS,VDE and ICEA upon request
Certificates
CE, SGS, KEMA and more others at request

What is LSOH Power Cable
Typical structure of LSOH flame-retardant cable: non-metallic cable cladding material is LSOH flame-retardant material with different properties. This structure enables the cable to pass class A tests in IEC 60332-3-22 and related tests in IEC 60754 and IEC 61034.

Benefits of FR Cable
When a fire occurs, the combustion of combustibles in the ordinary power system will produce a large amount of halogen-containing smoke. The LSOH power cable and the LSOH building materials used together can effectively reduce the total amount of smoke released by combustible combustion and the content of halogen, so as to reduce the casualty rate in the fire.
The cable has better axial tension resistance.

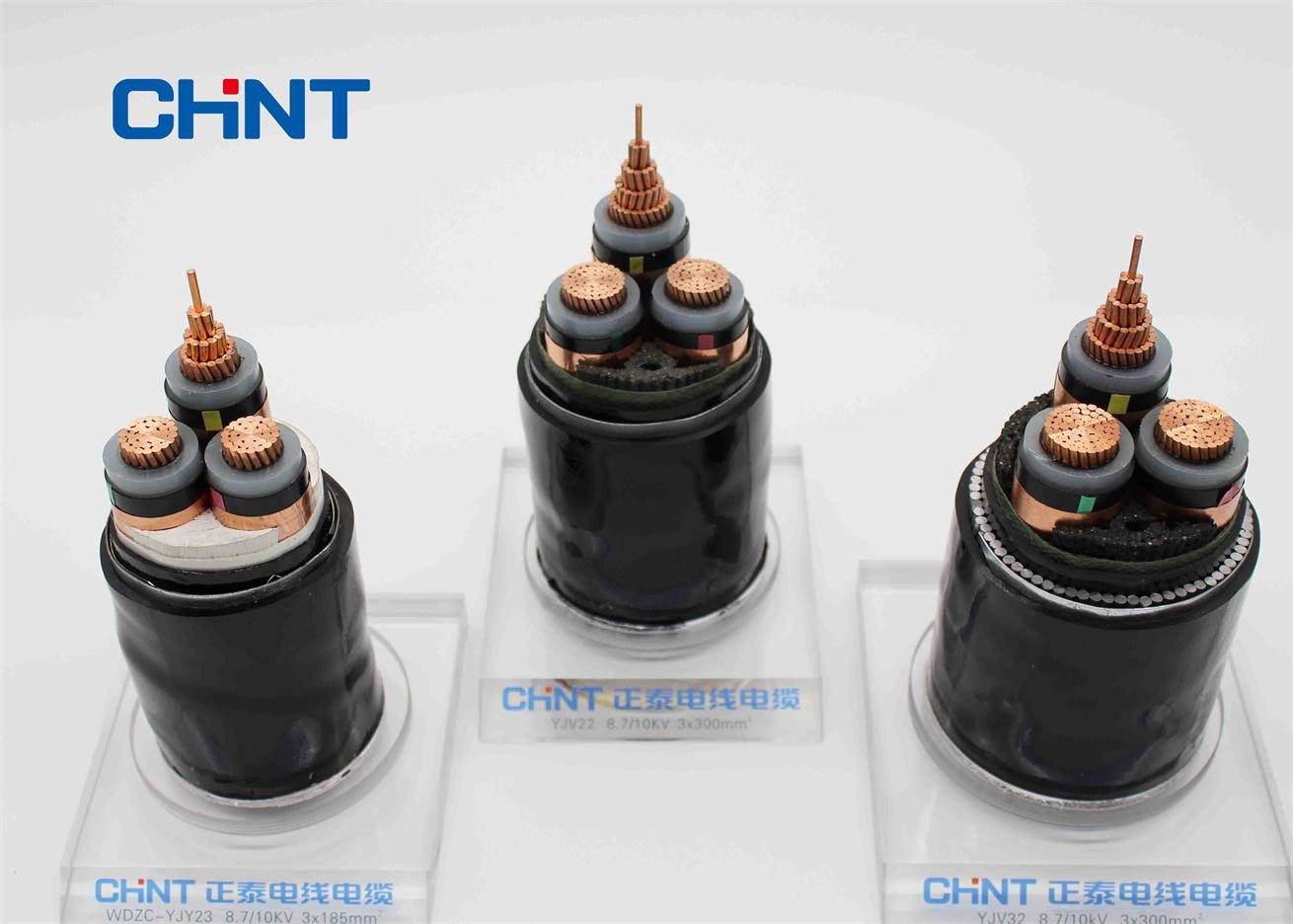

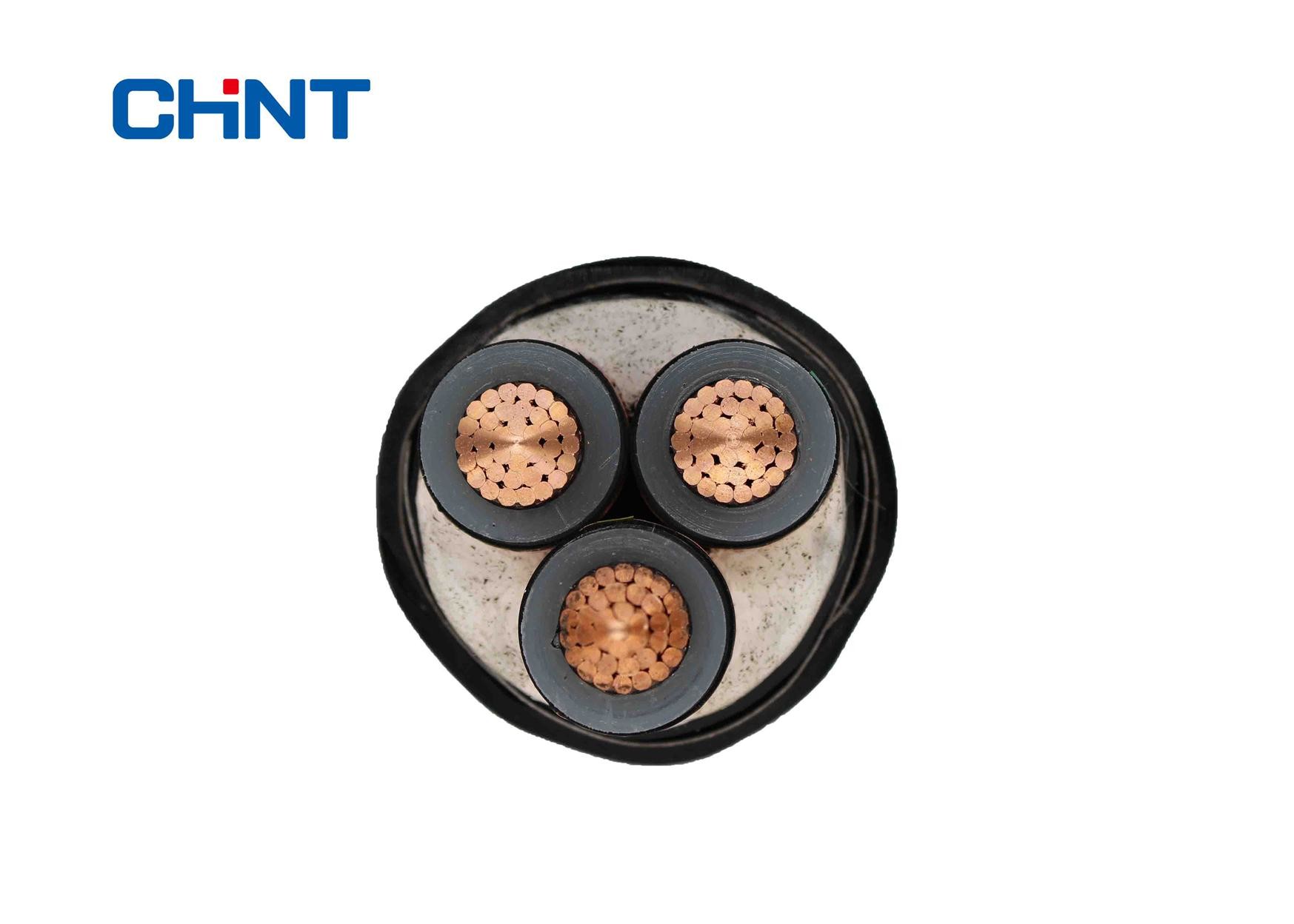

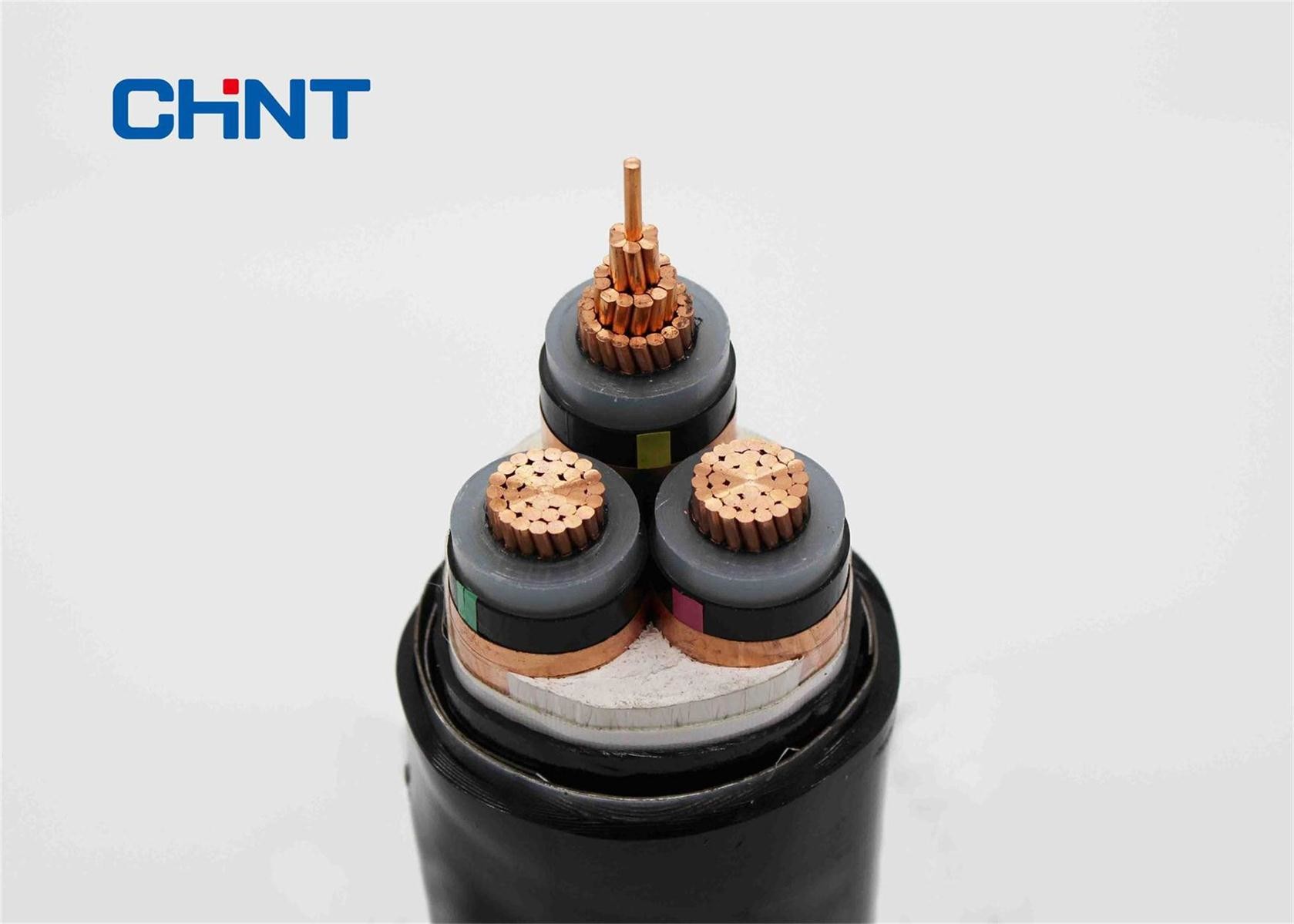

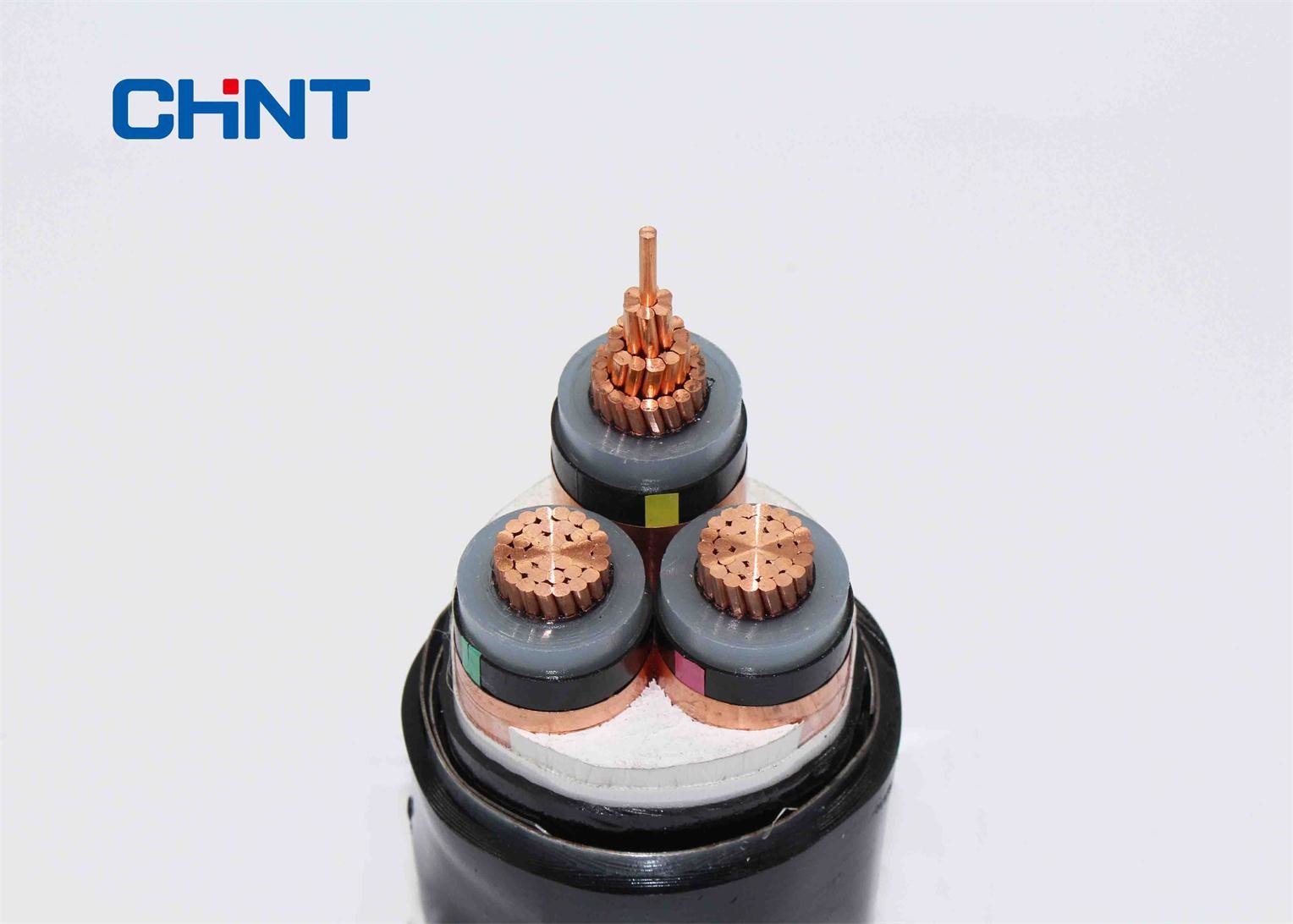

Constructions
Conductor : Compact stranded copper conductor, Cl.2 as per IEC 60228
Conductor Screen: Semi-conductor
Insulation : XLPE(cross-linked polyethylene) rated at 90 ℃
Insulation Screen: Semi-conductor
Screen : Copper tape
Interlining: LSOH Flame Retardant Polyolefin, black
Armouring: SWA(Steel Wire Armouring)
Sheath : LSOH Flame Retardant Polyolefin, black

Note:
Insulation identification as per standards or customer requirement

Applications
Laying in room ,tunnel ,cable trench ,and pipes.

Technical data
Rated voltage: 8.7/10 kV
Maximum Conductor Temperature: under normal (90 ℃), emergency (130℃) or short circuit no more than 5 s (250℃) conditions.
Min. Ambient Temp.: The cable shall be pre heated if the ambient temperature is below 0℃
Min. Bending Radius: single core cable 20(d+D)±5%
Multi-core cable 15(d+D)±5%

Technical Specifications


Nom. Cross-section of conductor Strands No./Dia. Of Conductor Insulation
Thickness
Thickness of Copper Strip Diameter of steel wire Sheath Thickness Approx. O.D. Approx. Max. D.C Resistance of Conductor (20 ℃) Testing Voltage A.C Current Rating
Weight In air (A) In soil(A)
1×25 7/2.17+0.01 4.5 0.12 1.60 1.8 28.1 1102 0.727 35 165 160
1×35 7/2.56+0.01 4.5 0.12 1.60 1.9 29.3 1245 0.524 35 205 190
1×50 19/1.86+0.01 4.5 0.12 1.60 1.9 30.6 1422 0.387 35 245 225
1×70 14/2.56+0.01 4.5 0.12 1.60 2.0 32.5 1701 0.268 35 305 275
1×95 19/2.56+0.02 4.5 0.12 2.00 2.1 35.1 2107 0.193 35 370 330
1×120 24/2.56+0.02 4.5 0.12 2.00 2.1 36.6 2408 0.153 35 430 375
1×150 30/2.56+0.01 4.5 0.12 2.00 2.1 38.0 2723 0.124 35 490 425
1×185 37/2.56+0.02 4.5 0.12 2.00 2.2 40.0 3170 0.0991 35 560 480
1×240 48/2.58+0.02 4.5 0.12 2.00 2.3 42.4 3824 0.0754 35 665 555
1×300 60/2.58+0.02 4.5 0.12 2.00 2.3 44.6 4475 0.0601 35 765 630
1×400 60/2.93+0.02 4.5 0.12 2.50 2.5 49.5 5686 0.047 35 890 725
1×500 60/3.33+0.02 4.5 0.12 2.50 2.6 53.1 8543 0.0366 35 1030 825
1×630 60/3.76+0.02 4.5 0.12 2.50 2.7 56.7 10135 0.0283 35 1200 950
3×25 7/2.17+0.01 4.5 0.10 2.50 2.6 54.0 5028 0.727 35 120 125
3×35 7/2.56+0.01 4.5 0.10 2.50 2.7 56.4 5589 0.524 35 140 155
3×50 19/1.86+0.01 4.5 0.10 2.50 2.8 60.0 6318 0.387 35 165 180
3×70 14/2.56+0.01 4.5 0.10 2.50 2.9 63.9 7374 0.268 35 210 220
3×95 19/2.56+0.02 4.5 0.10 2.50 3.1 67.9 8587 0.193 35 255 265
3×120 24/2.56+0.02 4.5 0.10 2.50 3.2 71.6 9713 0.153 35 290 300
3×150 30/2.56+0.01 4.5 0.10 3.15 3.3 76.1 11693 0.124 35 330 340
3×185 37/2.56+0.02 4.5 0.10 3.15 3.4 80.4 13371 0.0991 35 375 380
3×240 48/2.58+0.02 4.5 0.10 3.15 3.6 85.7 15687 0.0754 35 435 435
3×300 60/2.58+0.02 4.5 0.10 3.15 3.8 91.0 18155 0.0601 35 493 485
3×400 60/2.93+0.02 4.5 0.10 3.15 4.0 97.9 21657 0.047 35 565 520



Ordering Advice
Rated Voltage
Application Standard: IEC/BS/UL/GB
Number of Cores
Conductor Size & Construction
Type of Insulation
Armored or unarmored. If armor, the armor type & material
The Requirement of Sheath
Length of Cable & Packing Requirement
Other Requirement

PACKING AND SHIPPING
We are capable of meeting the strictest delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self-adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.
