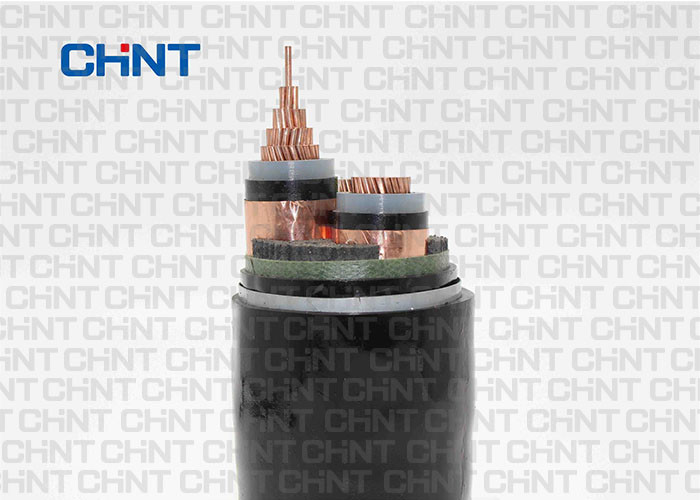

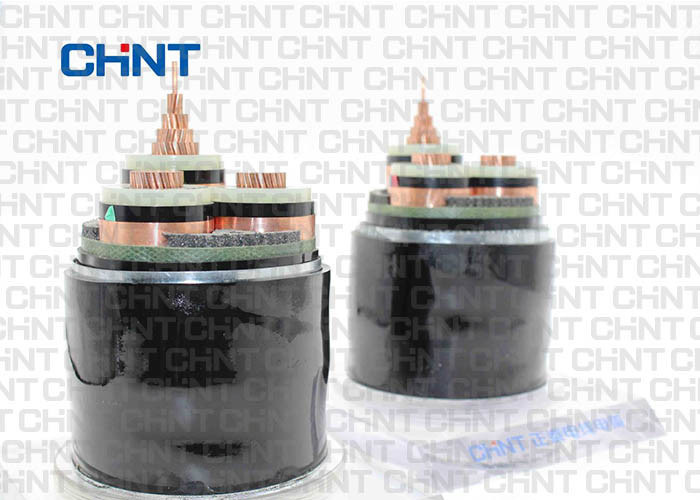

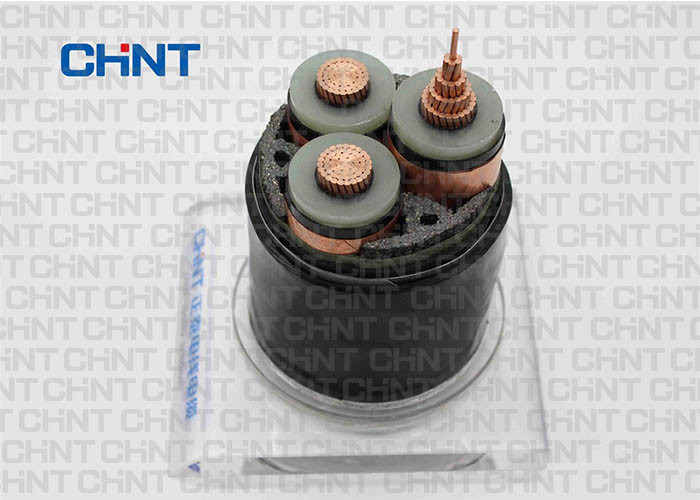

Single / Three Cores Armoured Electrical Cable Rated Voltage 6/10(12)KV

Basic Information
Place of Origin: CHINA
Brand Name: CHINT
Certification: CCC/KEMA/SGS
Model Number: YJV22
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: wooden/iorn drum
Supply Ability: 500KM/Month
Conductor: Bare Copper Standard: IEC60502.2
Insulation: XLPE Core: 1 Or 3
Type: Medium Voltage Color: Red Yellow Green
High Light:

armoured electrical cable

,

armored power cable

Single core and three cores cu/XLPE/CTS/STA/PVCpower cable rated voltage 6/10(12)kV



Detailed Product Description



Certificates

CE, SGS, KEMA and more others at request



Standards:

International: IEC 60502, IEC 60228, IEC 60332, IEC 60754

China: GB∕T 12706.2-2008, GB∕T 19666-2005

Other standards such as BS,VDE and ICEA upon request



Applications

Suitable for burying in ground, Able to bear external mechanical forces but large pulling forces.

Rated voltage: 6/10 kV



Construction

Conductor: Plain annealed stranded compacted circular copper or aluminium conductor to IEC60228 class 2
Conductor Screen:Extruded semi-conductive compound

Insulation:XLPE (cross-linked polyethylene) rated at 90°C

Insulaton Screen:Extruded semi-conductive compound
Metallic Screen:copper tape or a concentric layer of copper wires
Colour for core indentification:Red,Yellow ,Blue tape shall be applied between insulation screen and metallic screen ( The above identifying can be changed as order)
Assembly : Three screened cores are laid up together ,if necessary filled with non hygroscopic material compatible with insulation and covered with a layer of PVC sheath
Inner Sheath:Extruded layer of PVC ST2 or PE , LSZH
Armour: Double of galvanized steel tape or galvanized steel wire for three core power cable ,Double of aluminium tape or aluminium wire for single power cable
Outer Sheath: PVC type ST2 to IEC 60502 or PE ,LSZH



Technical data

Maximum Conductor Temperature: under normal (90 ℃), emergency (130℃) or short circuit no more than 5 s (250℃) conditions.

Min. Ambient Temp.: The cable shall be pre heated if the ambient temperature is below 0℃

Min. Bending Radius: single core cable 20(d+D)±5%

Multi-core cable 15(d+D)±5%



Technical Specifications



Nom. Cross-section of conductor Strands No./Dia. Of Conductor Insulation Thickness of Copper Strip Thickness of steel tape Sheath Thickness Approx. O.D. Approx. Max. D.C Resistance of Conductor (20 ℃) Testing Voltage A.C Current Rating
Weight In air (A) In soil(A)
1×25 7/2.17+0.01 3.4 0.12 0.2 1.8 23.9 854 0.727 24 165 160
1×35 7/2.56+0.01 3.4 0.12 0.2 1.8 24.9 980 0.524 24 205 190
1×50 19/1.86+0.01 3.4 0.12 0.2 1.8 26.2 1141 0.387 24 245 225
1×70 14/2.56+0.01 3.4 0.12 0.2 1.8 27.9 1392 0.268 24 305 275
1×95 19/2.56+0.02 3.4 0.12 0.2 1.9 29.7 1700 0.193 24 370 330
1×120 24/2.56+0.02 3.4 0.12 0.2 1.9 31.2 1974 0.153 24 430 375
1×150 30/2.56+0.01 3.4 0.12 0.2 2.0 32.8 2286 0.124 24 490 425
1×185 37/2.56+0.02 3.4 0.12 0.2 2.0 34.6 2700 0.0991 24 560 480
1×240 48/2.58+0.02 3.4 0.12 0.5 2.1 38.8 3685 0.0754 24 665 555
1×300 60/2.58+0.02 3.4 0.12 0.5 2.2 41.2 4350 0.0601 24 765 630
1×400 60/2.93+0.02 3.4 0.12 0.5 2.3 44.5 5342 0.047 24 890 725
1×500 60/3.33+0.02 3.4 0.12 0.5 2.4 47.9 6432 0.0366 24 1030 825
1×630 60/3.76+0.02 3.4 0.12 0.5 2.5 51.7 7896 0.0283 24 1200 950
3×25 7/2.17+0.01 3.4 0.10 0.5 2.4 46.1 2913 0.727 24 120 125
3×35 7/2.56+0.01 3.4 0.10 0.5 2.4 48.3 3329 0.524 24 140 155
3×50 19/1.86+0.01 3.4 0.10 0.5 2.6 52.3 3967 0.387 24 165 180
3×70 14/2.56+0.01 3.4 0.10 0.5 2.7 56.3 4840 0.268 24 210 220
3×95 19/2.56+0.02 3.4 0.10 0.5 2.8 60.0 5830 0.193 24 255 265
3×120 24/2.56+0.02 3.4 0.10 0.5 2.9 63.6 6783 0.153 24 290 300
3×150 30/2.56+0.01 3.4 0.10 0.5 3.0 66.8 7778 0.124 24 330 340
3×185 37/2.56+0.02 3.4 0.10 0.5 3.1 71.1 9183 0.0991 24 375 380
3×240 48/2.58+0.02 3.4 0.10 0.5 3.3 76.5 11217 0.0754 24 435 435
3×300 60/2.58+0.02 3.4 0.10 0.5 3.5 81.8 13337 0.0601 24 493 485
3×400 60/2.93+0.02 3.4 0.10 0.8 3.7 89.8 17258 0.047 24 565 520




Ordering Advice

Rated Voltage

Application Standard: IEC/BS/UL/GB

Number of Cores

Conductor Size & Construction

Type of Insulation

Armored or unarmored. If armor, the armor type & material

The Requirement of Sheath

Length of Cable & Packing Requirement

Other Requirement



Ordering Advice

Rated Voltage

Application Standard: IEC/BS/UL/GB

Number of Cores

Conductor Size & Construction

Type of Insulation

Armored or unarmored. If armor, the armor type & material

The Requirement of Sheath

Length of Cable & Packing Requirement

Other Requirement



Packing and shipping

steel wooden drum, other as required and shipping in general is by sea.
