| Place of Origin: | China |
|---|---|
| Brand Name: | CHINT |
| Certification: | KEMA/CE/SGS |
| Model Number: | Cu /XLPE /CTS/PVC |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | iron with wooden or wood or iron |
| Supply Ability: | 1000KM/Month |
| Name: | XLPE Power Cable | Power: | 0.6KV |
|---|---|---|---|
| Core: | 5 Core | Port: | Shanghai |
| Insulation Material: | XLPE | Conductor Material: | Aluminum / Copper |
| High Light: | xlpe insulated pvc sheathed cable,cross linked polyethylene insulated cable |
||

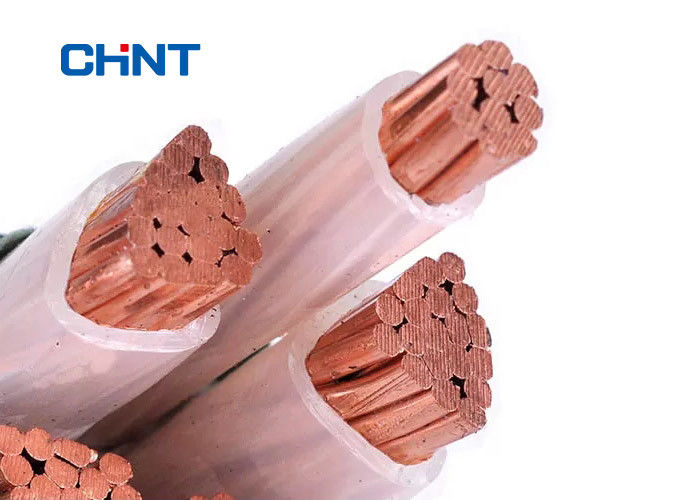

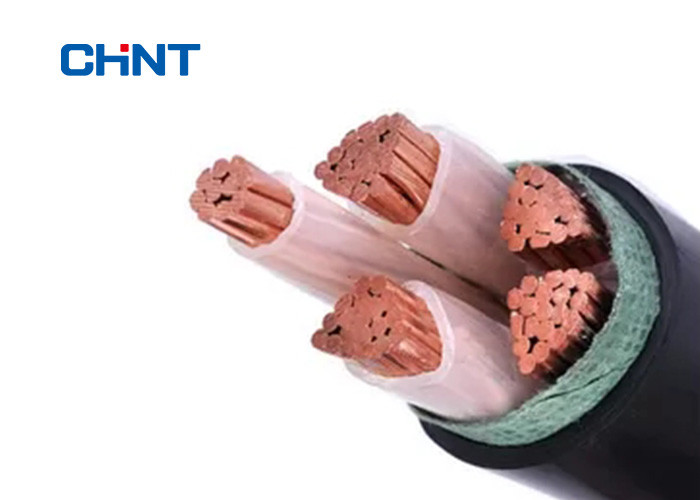

Armored XLPE Power Cable With Aluminum / Copper Conductor GB/T 12706.2-2008
XLPE Power Cable Description
XLPE insulated power cable do not has excellent electric, mechanical properties,but also has powerful resistance against chemical corrosion,heat resistance and enviromental stress resistance. Its structure is simple. The long period operating temperature is +90 °C. It is conveninet to use and can be laid with no restriction of different level.
Ordering Advice
Rated Voltage
Application Standard: IEC/BS/UL/GB
Number of Cores
Conductor Size & Construction
Type of Insulation
Armored or unarmored. If armor, the armor type & material
The Requirement of Sheath
Length of Cable & Packing Requirement
Other Requirement
Note:
Insulation identification as per standards or customer requirement
Standards
International: IEC 60502, IEC 60228
China: GB/T 12706.2-2008
Other standards such as BS,VDE and ICEA upon request
XLPE Power Cable Construction
Conductor : Compact stranded copper conductor, Cl.2 as per IEC 60228
Conductor Screen: Semi-conductor
Insulation : XLPE(cross-linked polyethylene) rated at 90 ℃
Insulation Screen: Semi-conductor
Screen : Copper tape
Sheath : PVC type ST2 to IEC 60502, black
XLPE Power Cable Technical Specifications
| Nom. Cross-section of conductor | Strands No./Dia. Of Conductor | Insulation Thickness | Thickness of Copper Strip | Sheath Thickness | Approx. O.D. | Approx. | Max. D.C Resistance of Conductor (20 ℃) | Testing Voltage A.C | Current Rating | |
| Weight | In air (A) | In soil(A) | ||||||||
| 1×50 | 19/1.86+0.01 | 8.0 | 0.12 | 2.0 | 33.4 | 1368 | 0.387 | 72 | 245 | 225 |
| 1×70 | 14/2.56+0.01 | 8.0 | 0.12 | 2.0 | 35.1 | 1625 | 0.268 | 72 | 305 | 275 |
| 1×95 | 19/2.56+0.02 | 8.0 | 0.12 | 2.1 | 36.9 | 1943 | 0.193 | 72 | 370 | 330 |
| 1×120 | 24/2.56+0.02 | 8.0 | 0.12 | 2.1 | 38.4 | 2223 | 0.153 | 72 | 425 | 375 |
| 1×150 | 30/2.56+0.01 | 8.0 | 0.12 | 2.2 | 40.0 | 2543 | 0.124 | 72 | 485 | 420 |
| 1×185 | 37/2.56+0.02 | 8.0 | 0.12 | 2.2 | 41.8 | 2964 | 0.0991 | 72 | 555 | 475 |
| 1×240 | 48/2.58+0.02 | 8.0 | 0.12 | 2.3 | 44.2 | 3592 | 0.0754 | 72 | 650 | 555 |
| 1×300 | 60/2.58+0.02 | 8.0 | 0.12 | 2.4 | 46.6 | 4245 | 0.0601 | 72 | 745 | 630 |
| 1×400 | 60/2.93+0.02 | 8.0 | 0.12 | 2.5 | 49.7 | 5199 | 0.047 | 72 | 870 | 720 |
| 1×500 | 60/3.33+0.02 | 8.0 | 0.12 | 2.6 | 53.1 | 6267 | 0.0366 | 72 | 1000 | 825 |
| 1×630 | 60/3.76+0.02 | 8.0 | 0.12 | 2.7 | 56.7 | 7685 | 0.0283 | 72 | 1160 | 940 |
| 3×50 | 19/1.86+0.01 | 8.0 | 0.10 | 3.1 | 69.4 | 4789 | 0.387 | 72 | 185 | 200 |
| 3×70 | 14/2.56+0.01 | 8.0 | 0.10 | 3.2 | 73.3 | 5664 | 0.268 | 72 | 230 | 250 |
| 3×95 | 19/2.56+0.02 | 8.0 | 0.10 | 3.3 | 76.9 | 6679 | 0.193 | 72 | 280 | 300 |
| 3×120 | 24/2.56+0.02 | 8.0 | 0.10 | 3.5 | 80.6 | 7659 | 0.153 | 72 | 310 | 330 |
| 3×150 | 30/2.56+0.01 | 8.0 | 0.10 | 3.6 | 83.8 | 8677 | 0.124 | 72 | 360 | 380 |
| 3×185 | 37/2.56+0.02 | 8.0 | 0.10 | 3.7 | 87.9 | 10076 | 0.0991 | 72 | 400 | 425 |
PACKING AND SHIPPING
We are capable of meeting the strictest delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self-adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.
