MutiCores 1kV Power XLPE Power Cable IEC 60502.1standard

Basic Information
Place of Origin: China
Brand Name: CHINT
Certification: IEC/CE
Model Number: CU/XLPE/PVC
Minimum Order Quantity: 1000m
Price: 5USD-50USD/m
Packaging Details: wooden or iron with wooden
Supply Ability: 100km per month
Voltage: 0.6/1kV Standard: IEC60502.1 Or AS/NZS5000.1
Conductor: Compacted Round Stranded Insulation: XLPE
Sheath: PVC /St2
High Light:

1kV Power XLPE Power Cable

,

IEC 60502.1 XLPE Power Cable

,

MutiCores XLPE Power Cable

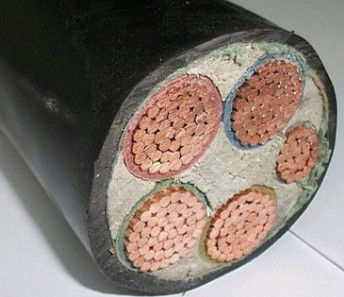

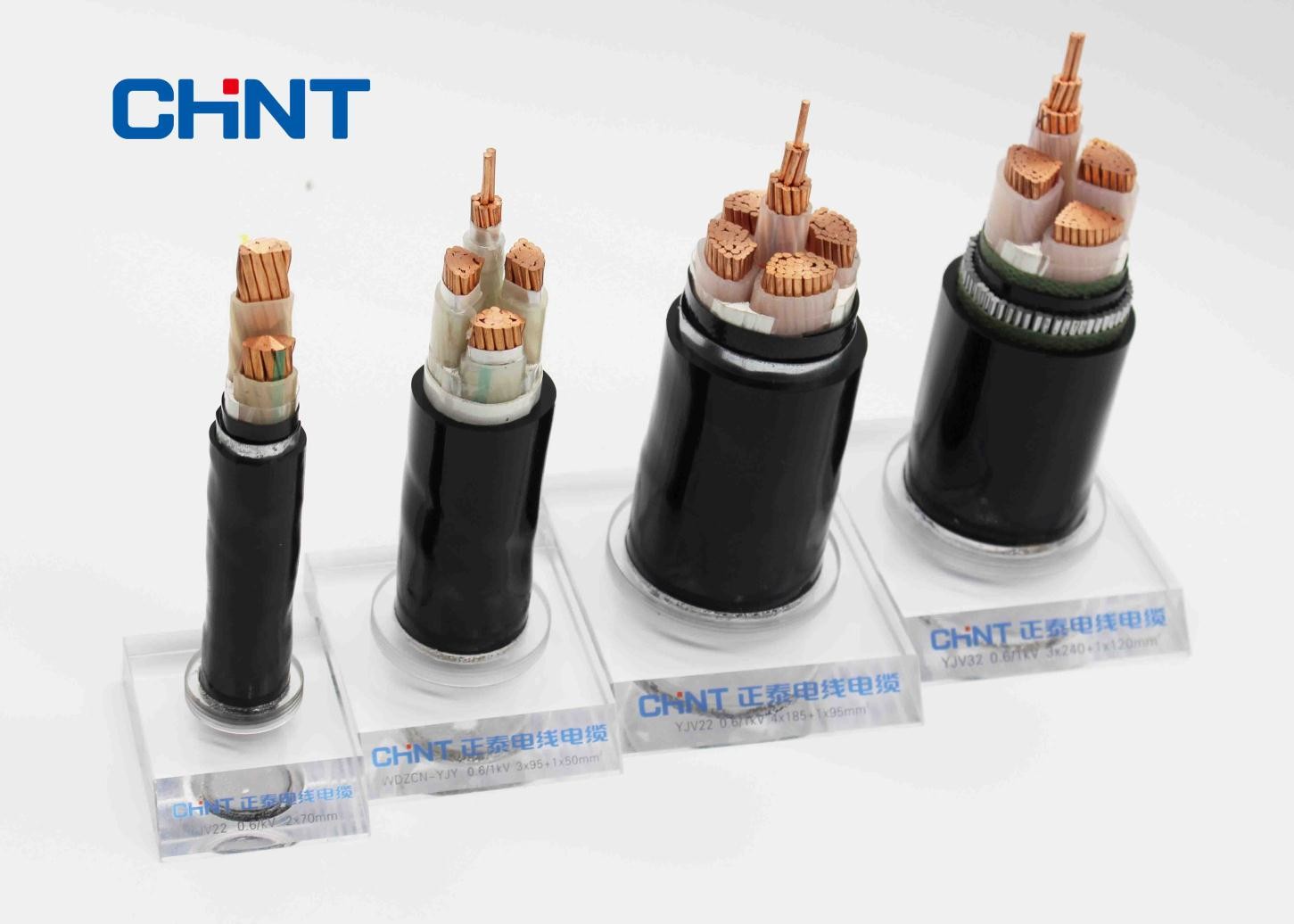

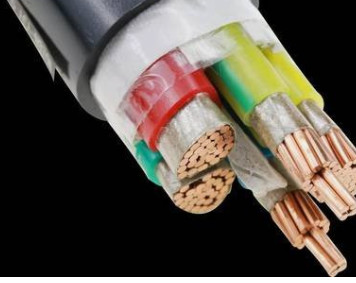

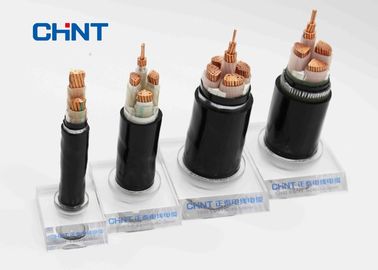

Muti-Cores0.6/1kV Power Cable Made By IEC 60502.1standard With Class 2 Compacted Round Conductor

Conductor : Plain annealed copper solid or stranded (class 1 or 2) conductor complying with IEC 60228

Insulation : XLPE(cross-linked polyethylene) rated at 90 ℃

Sheath : PVC type ST2 , according to IEC 60502, black

Note:

Insulation identification as per standards or customer requirement

Applications

For laying indoors and outdoors. Able to bear certain traction during installation, but not external mechanical forces. Laying single core cable in magnetic ducts is not allowed.

Standards

International: IEC 60502.1, IEC 60228

China: GB/T 12706.1-2008

Other standards such as BS,VDE and ICEA upon request

Technical data

Rated voltage: 0.6/1kV

Maximum Conductor Temperature: under normal (90 ℃), emergency (130℃) or short circuit no more than 5 s (250℃) conditions.

Min. Ambient Temp.: The cable shall be pre heated if the ambient temperature is below 0℃

Min. Bending Radius: single core cable 20(d+D)±5%

Multi-core cable 15(d+D)±5%

Certificates

CE, SGS, KEMA and more others at request

Nom. Cross-section of conductor Strands No./Dia. Of Conductor Insulation Thickness Sheath Thickness Approx. O.D. Approx. Max. D.C Resistance of Conductor (20 ℃) Testing Voltage A.C Current Rating
Weight In air (A) In soil(A)
1×1.5 1/1.38 0.7 1.4 5.6 43 12.1 3.5 26 33
1×2.5 1/1.76 0.7 1.4 6.0 54 7.56 3.5 34 43
1×4 1/2.23 0.7 1.4 6.4 71 4.61 3.5 44 56
1×6 1/2.74 0.7 1.4 7.0 93 3.08 3.5 56 70
1×10 7/1.33 0.7 1.4 8.2 137 1.83 3.5 77 94
1×16 7/1.67 0.7 1.4 9.2 195 1.15 3.5 100 120
1×25 7/2.10 0.9 1.4 10.9 292 0.727 3.5 130 155
1×35 7/2.48 0.9 1.4 12.0 389 0.524 3.5 160 185
1×50 10/2.56 1.0 1.4 13.2 514 0.387 3.5 195 220
1×70 14/2.56 1.1 1.4 15.1 716 0.268 3.5 245 270
1×95 19/2.56 1.1 1.5 16.9 969 0.193 3.5 300 320
1×120 24/2.56 1.2 1.5 18.6 1,203 0.153 3.5 349 365
1×150 30/2.56 1.4 1.6 20.6 1,479 0.124 3.5 400 410
1×185 37/2.56 1.6 1.6 22.7 1,853 0.0991 3.5 465 465
1×240 48/2.58 1.7 1.7 25.3 2,408 0.0754 3.5 550 540
1×300 60/2.58 1.8 1.8 27.9 2,988 0.0601 3.5 635 610
1×400 60/2.93 2.0 1.9 31.5 3,860 0.047 3.5 745 695
1×500 60/3.33 2.2 2 35.2 4,840 0.0366 3.5 860 780
1×630 60/3.76 2.4 2.2 39.4 6,182 0.0283 3.5 990 880
2×1.5 1/1.38 0.7 1.8 9.5 106 12.1 3.5 20 31
2×2.5 1/1.76 0.7 1.8 10.3 133 7.56 3.5 27 41
2×4 1/2.23 0.7 1.8 11.2 172 4.61 3.5 35 53
2×6 1/2.74 0.7 1.8 12.2 221 3.08 3.5 45 66
2×10 7/1.33 0.7 1.8 14.7 328 1.83 3.5 63 90
2×16 7/1.67 0.7 1.8 16.7 460 1.15 3.5 84 117
2×25 7/2.10 0.9 1.8 20.1 683 0.727 3.5 113 151
2×35 7/2.48 0.9 1.8 22.4 900 0.524 3.5 139 181
2×50 10/2.56 1.0 1.8 19.0 1,037 0.387 3.5 161 210
2×70 14/2.56 1.1 1.8 21.8 1,446 0.268 3.5 204 257
2×95 19/2.56 1.1 2 24.7 1,967 0.193 3.5 252 310
2×120 24/2.56 1.2 2.1 27.1 2,444 0.153 3.5 291 351
2×150 30/2.56 1.4 2.2 30.3 3,008 0.124 3.5 333 393
2×185 37/2.56 1.6 2.3 33.5 3,772 0.0991 3.5 385 445
2×240 48/2.56 1.7 2.5 37.7 4,909 0.0754 3.5 457 516
2×300 60/2.56 1.8 2.7 41.4 6,090 0.0601 3.5 527 583
3×1.5 1/1.38 0.7 1.8 9.9 127 12.1 3.5 20 31
3×2.5 1/1.76 0.7 1.8 10.7 163 7.56 3.5 27 41
3×4 1/2.23 0.7 1.8 11.8 216 4.61 3.5 35 53
3×6 1/2.74 0.7 1.8 12.9 285 3.08 3.5 45 66
3×10 7/1.33 0.7 1.8 15.6 429 1.83 3.5 63 90
3×16 7/1.67 0.7 1.8 17.7 613 1.15 3.5 84 117
3×25 7/2.10 0.9 1.8 21.4 923 0.727 3.5 113 151
3×35 7/2.48 0.9 1.8 23.8 1,229 0.524 3.5 139 181
3×50 10/2.56 1.0 1.8 22.5 1,517 0.387 3.5 161 210
3×70 14/2.56 1.1 1.9 26.1 2,133 0.268 3.5 204 257
3×95 19/2.56 1.1 2 29.3 2,891 0.193 3.5 252 310
3×120 24/2.56 1.2 2.1 32.3 3,600 0.153 3.5 291 351
3×150 30/2.56 1.4 2.3 36.1 4,440 0.124 3.5 333 393
3×185 37/2.56 1.6 2.4 40.1 5,579 0.0991 3.5 385 445
3×240 48/2.56 1.7 2.6 45.5 7,288 0.0754 3.5 457 516
3×300 60/2.56 1.8 2.8 50.0 9,045 0.0601 3.5 527 583
4×1.5 1/1.38 0.7 1.8 10.7 152 12.1 3.5 20 31
4×2.5 1/1.76 0.7 1.8 11.6 199 7.56 3.5 27 41
4×4 1/2.23 0.7 1.8 12.7 267 4.61 3.5 35 53
4×6 1/2.74 0.7 1.8 13.9 356 3.08 3.5 45 66
4×10 7/1.33 0.7 1.8 17.0 542 1.83 3.5 63 90
4×16 7/1.67 0.7 1.8 19.4 782 1.15 3.5 84 117
4×25 7/2.10 0.9 1.8 23.5 1,185 0.727 3.5 113 151
4×35 7/2.48 0.9 1.8 26.3 1,586 0.524 3.5 139 181
4×50 10/2.56 1.0 1.9 25.5 1,999 0.387 3.5 161 210
4×70 14/2.56 1.1 2 29.4 2,810 0.268 3.5 204 257
4×95 19/2.56 1.1 2.1 33.5 3,823 0.193 3.5 252 310
4×120 24/2.56 1.2 2.3 37.2 4,783 0.153 3.5 291 351
4×150 30/2.56 1.4 2.4 41.3 5,879 0.124 3.5 333 393
4×185 37/2.56 1.6 2.6 46.5 7,434 0.0991 3.5 385 445
4×240 48/2.56 1.7 2.8 52.7 9,701 0.0754 3.5 457 516
4×300 60/2.56 1.8 3 57.9 12,030 0.0601 3.5 527 583
5×1.5 1/1.38 0.7 1.8 11.5 179 12.1 3.5 20 31
5×2.5 1/1.76 0.7 1.8 12.5 236 7.56 3.5 27 41
5×4 1/2.23 0.7 1.8 13.8 321 4.61 3.5 35 53
5×6 1/2.74 0.7 1.8 15.2 430 3.08 3.5 45 66
5×10 7/1.33 0.7 1.8 18.6 659 1.83 3.5 63 90
5×16 7/1.67 0.7 1.8 21.3 957 1.15 3.5 84 117
5×25 7/2.10 0.9 1.8 25.9 1,456 0.727 3.5 113 151
5×35 7/2.48 0.9 1.8 28.9 1,955 0.524 3.5 139 181
5×50 19/1.86 1.0 2 28.9 2,502 0.387 3.5 161 210
5×70 14/2.56 1.1 2.1 33.6 3,525 0.268 3.5 204 257
5×95 19/2.56 1.1 2.3 38.2 4,798 0.193 3.5 252 310
5×120 24/2.56 1.2 2.4 42.3 5,990 0.153 3.5 291 351
5×150 30/2.56 1.4 2.6 47.3 7,393 0.124 3.5 333 393
5×185 37/2.56 1.6 2.8 52.6 9,312 0.0991 3.5 385 445
5×240 48/2.56 1.7 3 59.5 12,137 0.0754 3.5 457 516
5×300 60/2.56 1.8 3.2 65.6 15,064 0.0601 3.5 527 583
3×2.5+1×1.5 1/1.76 0.7 1.8 11.3 187 7.56 3.5 27 41
3×4+1×2.5 1/2.23 0.7 1.8 12.4 250 4.61 3.5 35 53
3×6+1×4 1/2.74 0.7 1.8 13.6 334 3.08 3.5 45 66
3×10+1×6 7/1.33 0.7 1.8 16.2 494 1.83 3.5 63 90
3×16+1×10 7/1.67 0.7 1.8 18.8 721 1.15 3.5 84 117
3×25+1×16 7/2.10 0.9 1.8 22.5 1,083 0.727 3.5 113 151
3×35+1×16 7/2.48 0.9 1.8 24.6 1,382 0.524 3.5 139 181
3×50+1×25 10/2.56 1.0 1.8 24.9 1,787 0.387 3.5 161 210
3×70+1×35 14/2.56 1.1 1.9 29.2 2,515 0.268 3.5 204 257
3×95+1×50 19/2.56 1.1 2.1 33.2 3,421 0.193 3.5 252 310
3×120+1×70 24/2.56 1.2 2.2 36.8 4,339 0.153 3.5 291 351
3×150+1×70 30/2.56 1.4 2.3 40.4 5,180 0.124 3.5 333 393
3×185+1×95 37/2.56 1.6 2.5 45.5 6,621 0.0991 3.5 385 445
3×240+1×120 48/2.56 1.7 2.7 51.1 8,567 0.0754 3.5 457 516
3×300+1×150 60/2.56 1.8 2.9 56.5 10,624 0.0601 3.5 527 583
3×2.5+2×1.5 1/1.76 0.7 1.8 12.1 213 7.56 3.5 27 41
3×4+2×2.5 1/2.23 0.7 1.8 13.3 287 4.61 3.5 35 53
3×6+2×4 1/2.74 0.7 1.8 14.6 386 3.08 3.5 45 66
3×10+2×6 7/1.33 0.7 1.8 17.2 566 1.83 3.5 63 90
3×16+2×10 7/1.67 0.7 1.8 20.2 837 1.15 3.5 84 117
3×25+2×16 7/2.10 0.9 1.8 24.0 1,254 0.727 3.5 113 151
3×35+2×16 7/2.48 0.9 1.8 25.9 1,550 0.524 3.5 139 181
3×50+2×25 10/2.56 1.0 1.9 26.2 2,040 0.387 3.5 161 210
3×70+2×35 14/2.56 1.1 2 30.2 2,852 0.268 3.5 204 257
3×95+2×50 19/2.56 1.1 2.2 34.3 3,874 0.193 3.5 252 310
3×120+2×70 24/2.56 1.2 2.3 37.9 4,970 0.153 3.5 291 351
3×150+2×70 30/2.56 1.4 2.4 42.3 5,849 0.124 3.5 333 393
3×185+2×95 37/2.56 1.6 2.6 47.7 7,533 0.0991 3.5 385 445
3×240+2×120 48/2.56 1.7 2.8 53.6 9,715 0.0754 3.5 457 516
3×300+2×150 60/2.56 1.8 3 59.7 12,057 0.0601 3.5 527 583
4×2.5+1×1.5 1/1.76 0.7 1.8 12.3 225 7.56 3.5 27 41
4×4+1×2.5 1/2.23 0.7 1.8 13.6 304 4.61 3.5 35 53
4×6+1×4 1/2.74 0.7 1.8 14.9 408 3.08 3.5 45 66
4×10+1×6 7/1.33 0.7 1.8 17.9 612 1.83 3.5 63 90
4×16+1×10 7/1.67 0.7 1.8 20.7 897 1.15 3.5 84 117
4×25+1×16 7/2.10 0.9 1.8 24.9 1,355 0.727 3.5 113 151
4×35+1×16 7/2.48 0.9 1.8 27.4 1,752 0.524 3.5 139 181
4×50+1×25 10/2.56 1.0 1.9 26.6 2,241 0.387 3.5 161 210
4×70+1×35 14/2.56 1.1 2.1 30.8 3,159 0.268 3.5 204 257
4×95+1×50 19/2.56 1.1 2.2 34.7 4,278 0.193 3.5 252 310
4×120+1×70 24/2.56 1.2 2.4 38.7 5,431 0.153 3.5 291 351
4×150+1×70 30/2.56 1.4 2.5 43.5 6,571 0.124 3.5 333 393
4×185+1×95 37/2.56 1.6 2.7 48.3 8,340 0.0991 3.5 385 445
4×240+1×120 48/2.56 1.7 2.9 54.9 10,838 0.0754 3.5 457 516
4×300+1×150 60/2.56 1.8 3.1 60.6 13,443 0.0601 3.5 527 583
