Oxygen Free PVC Insulated Copper Wire Low Resistance Stable Conductivity

Basic Information
Place of Origin: CHINA
Brand Name: CHINT
Certification: CCC/ISO/CE
Model Number: H07R-K or 60227IEC02(RV)
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: roll or plastic drum
Supply Ability: 10000km per month
Conductor Material: Oxygen-free Copper Insulation Material: PVC

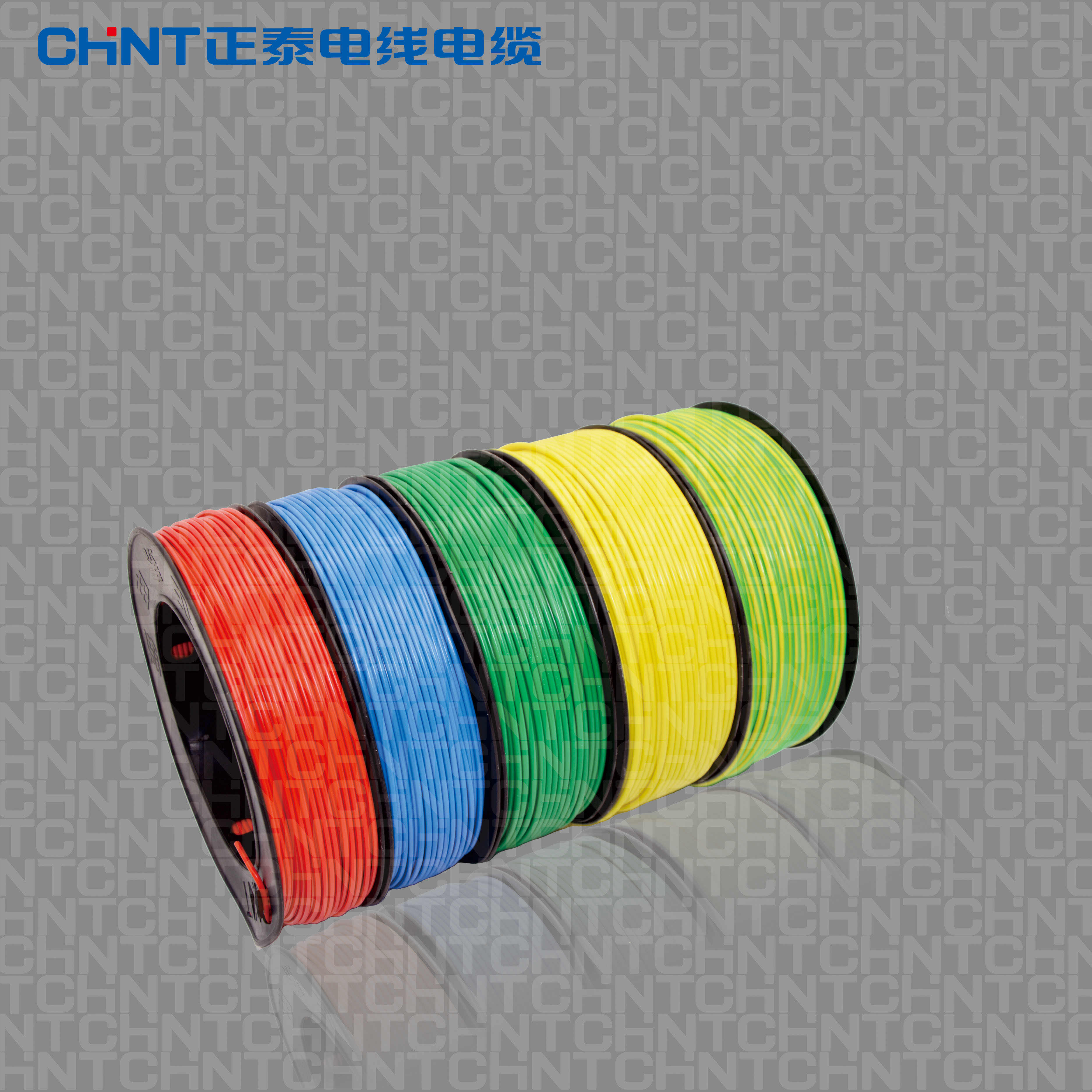

Rated Voltage: 450/750V Color: Red ,black Blue Yellow/green, White , Yellow ,green
Core: Single Core Roll: 100m Per Roll
High Light:

pvc insulated copper wire


pvc insulated copper cable


single-core non-sheathed cables with flexible conductor for general purposes Code designation : 60227 IEC 02 ( International ),RV 450/750v(china),H07v-k(VDE).



1. Conductor : flexible copper conductor , comform to IEC 60228 class 5
2. Insulation : PVC



for protected installation and lighting fitting. also for in conduit, on and under plaster.



International : IEC 60227

China : GB / T 5023-2008

Other standards such as BS , DIN and ICEA upon request


The design highlights

GB/T 5023-2008,JBT8734-1988 according to the national standards and electric electronic product compulsory certification (CCC) search the implementation rules of design ,excellent conductor adopts oxygen-free copper, conductive good, small fever, satisfy the load for a long time to be put into use, with plastic insulation, insulation performance is strong, wear-resisting, non-flammable, long service life.


Selling point

oxygen-free copper:High precision anoxic copper, low resistance, durable and stable conductivity.

Insulating layer:Use environmental-friendly PVC materials, wear resistance, corrosion resistance, aging resistance, good flame retardant performance.

The RV cable has been widely used in the field of industrial distribution, especially for more stringent requirements of the flexible installation site, such as electric control cabinets, distribution box and all kinds of low voltage electrical equipment, can be used in electric power, electrical control signal and switch signal transmission. RV wire and cable adopt soft structure design, the bending radius of conductor is small, and it is suitable for wet and oily installation. At the same time, the RV cable has been certified by CCC and CE mark and meets the requirements of HD (unified coordination standard), which can be applied not only to the Chinese market, but also to the European market


Technical data

Rated voltage : 450 / 750 V

Max . Conductor Temp . in normal use : 70℃

Min Bending Radius : 6 x cable O.D



CE,ROHS,CCC,KEMA and more others at request




section Area

Thickness of insulation Mean.O.D. Max.R of conductor at 70℃ Min.Insulation resistance at 20℃ Approx.weight
Lower Limit Upper Limit
mm2 mm mm mm m ohm/km ohm˙km kg/km
1.5 0.7 2.8 3.4 0.010 13.3 20.3
2.5 0.8 3.4 4.1 0.009 7.98 31.6
4 0.8 3.9 4.8 0.007 4.95 47.1
6 0.8 4.4 5.3 0.006 3.30 68.0
10 1.0 5.7 6.8 0.0056 1.91 112.0
16 1.0 6.7 8.1 0.0046 1.21 179.0
25 1.2 8.4 10.2 0.0044 0.780 281.0

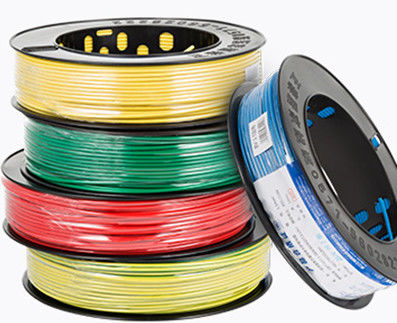

we can delive any kinds of package to serve for your requirements, for example as below :
