| Place of Origin: | CHINA |
|---|---|
| Brand Name: | CHINT |
| Certification: | CE /CCC/ROSH |
| Model Number: | 60227IEC01(BV) |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | 100m per roll or drum |
| Supply Ability: | 1000km per month |
| Conductor: | Class 1or 2 As Per IEC60228 | Insulation: | PVC |
|---|---|---|---|
| Color: | Red ,blue ,black ,G/Y, Yellow ,green ,brown ,white | Marking: | Printing Or Embossing |
| Package: | 100m Per Roll Or Drum | Voltage: | 450/750V |
| High Light: | pvc insulated copper cable,pvc insulated flexible cable |
||

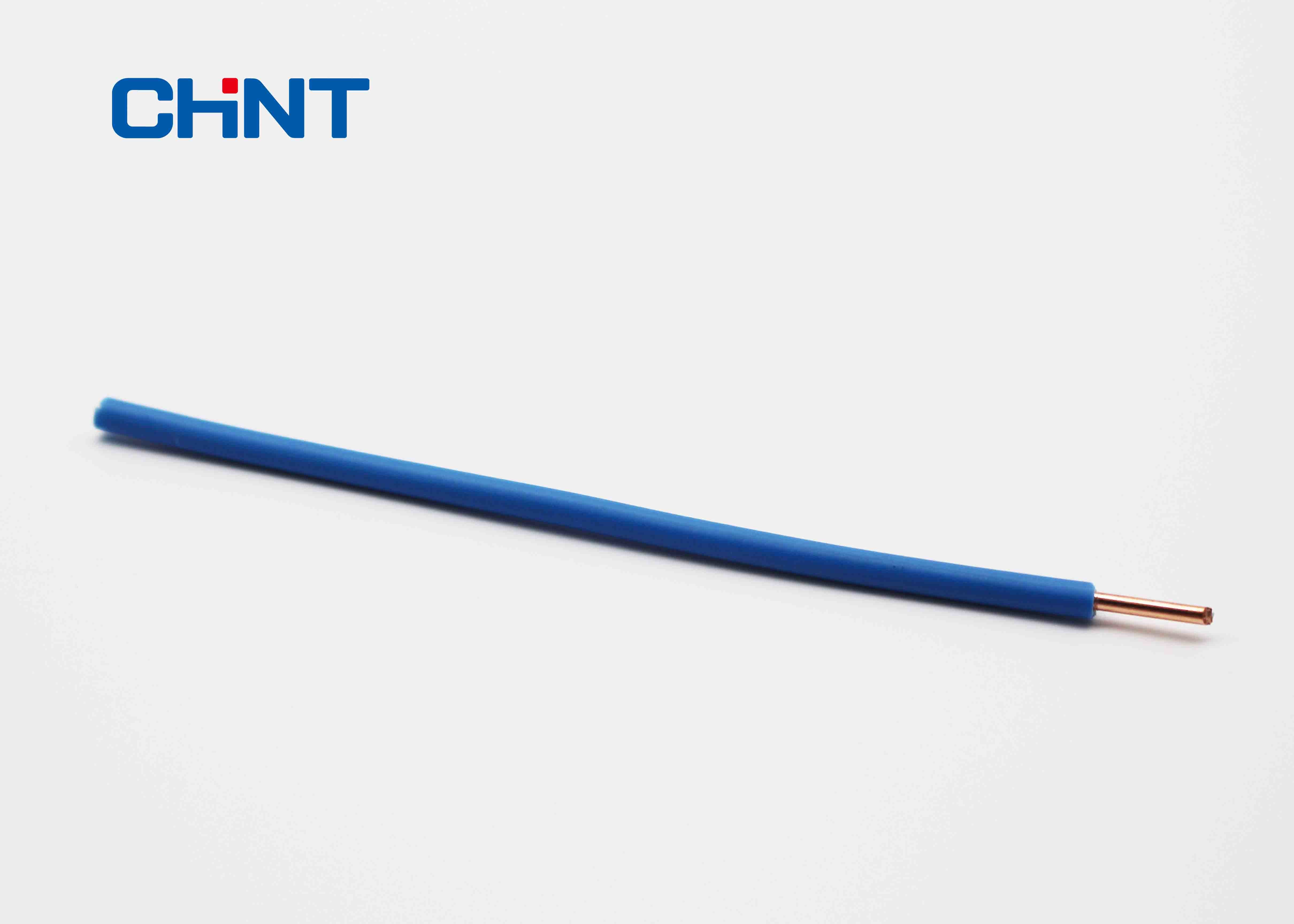

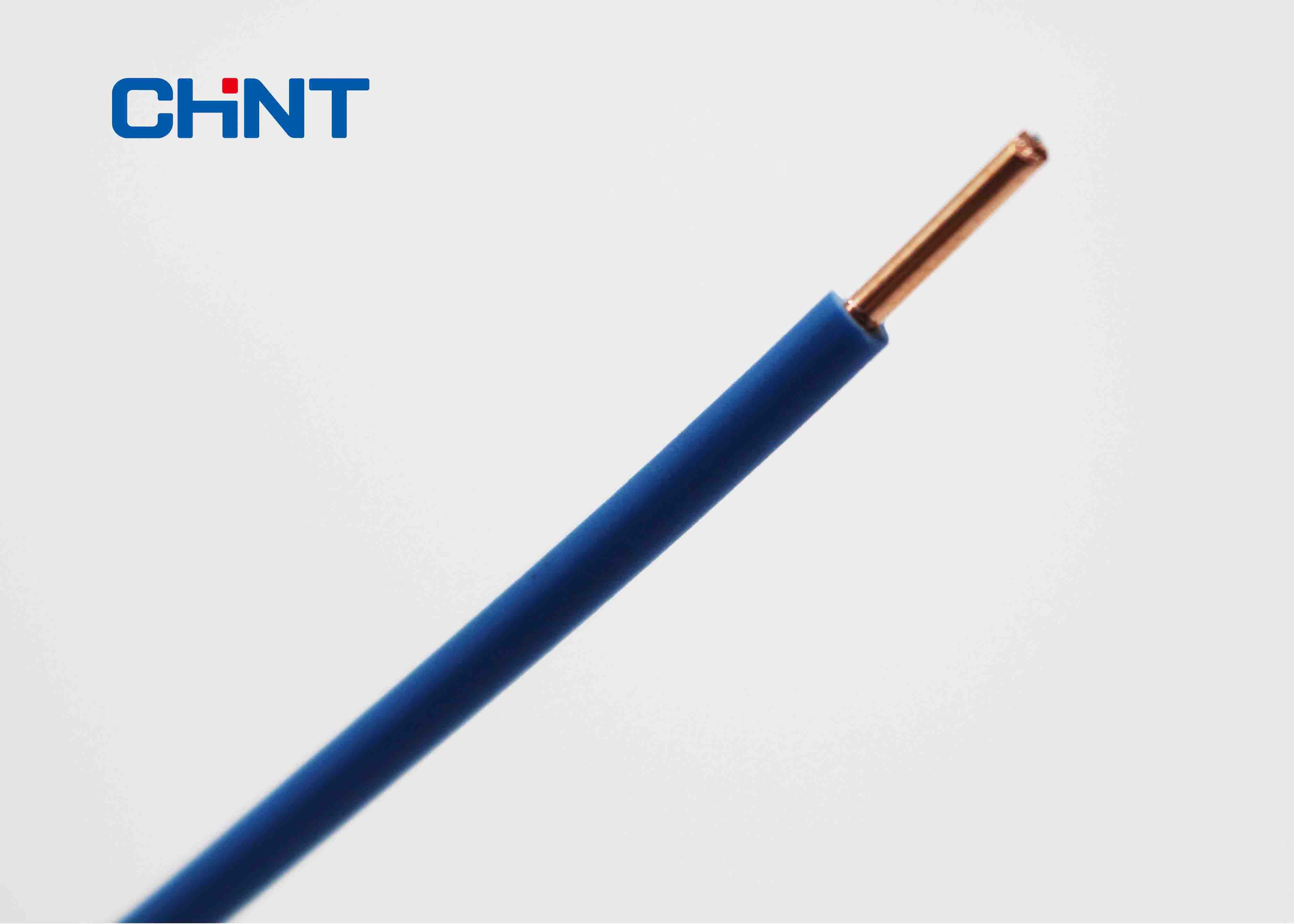

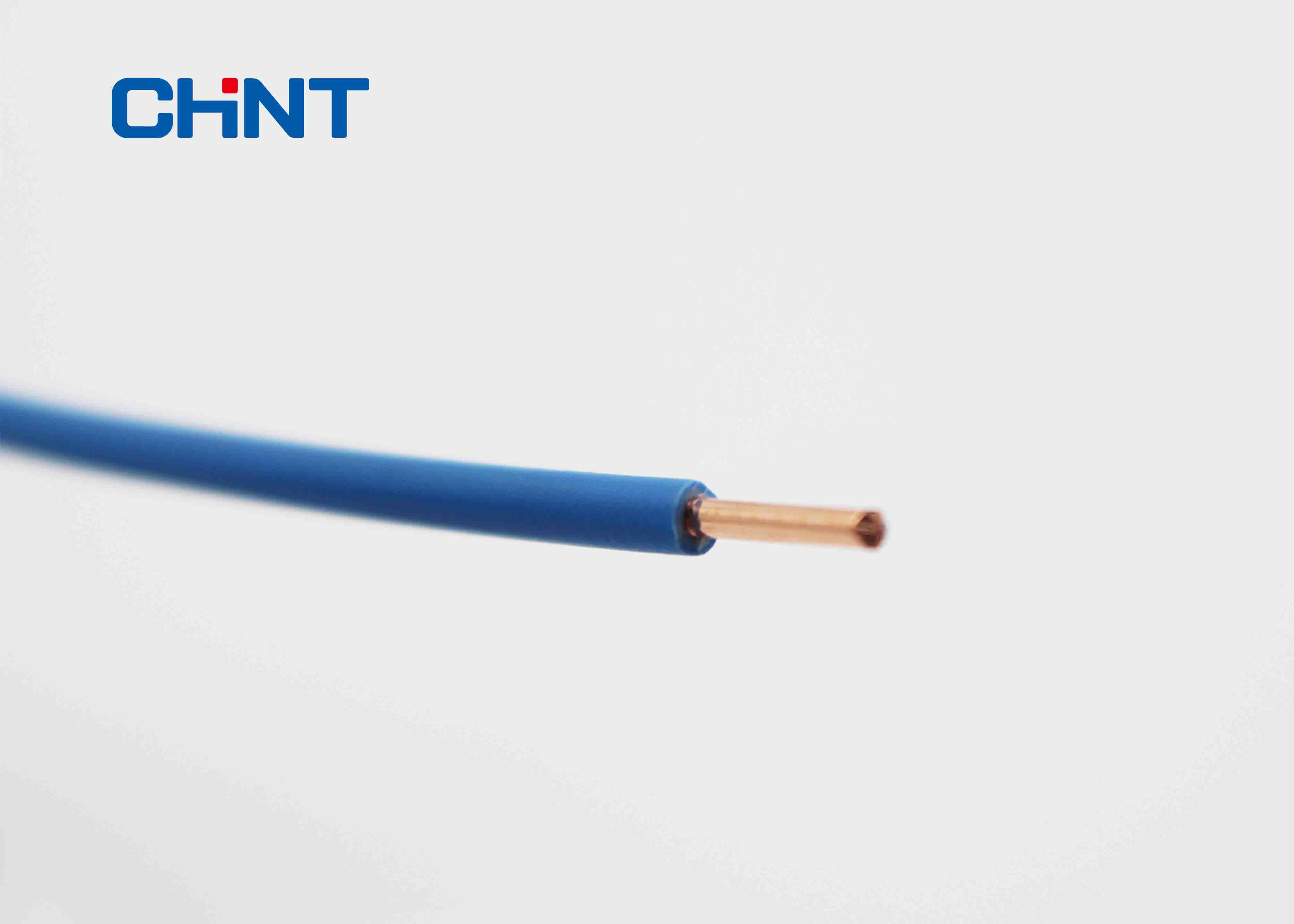

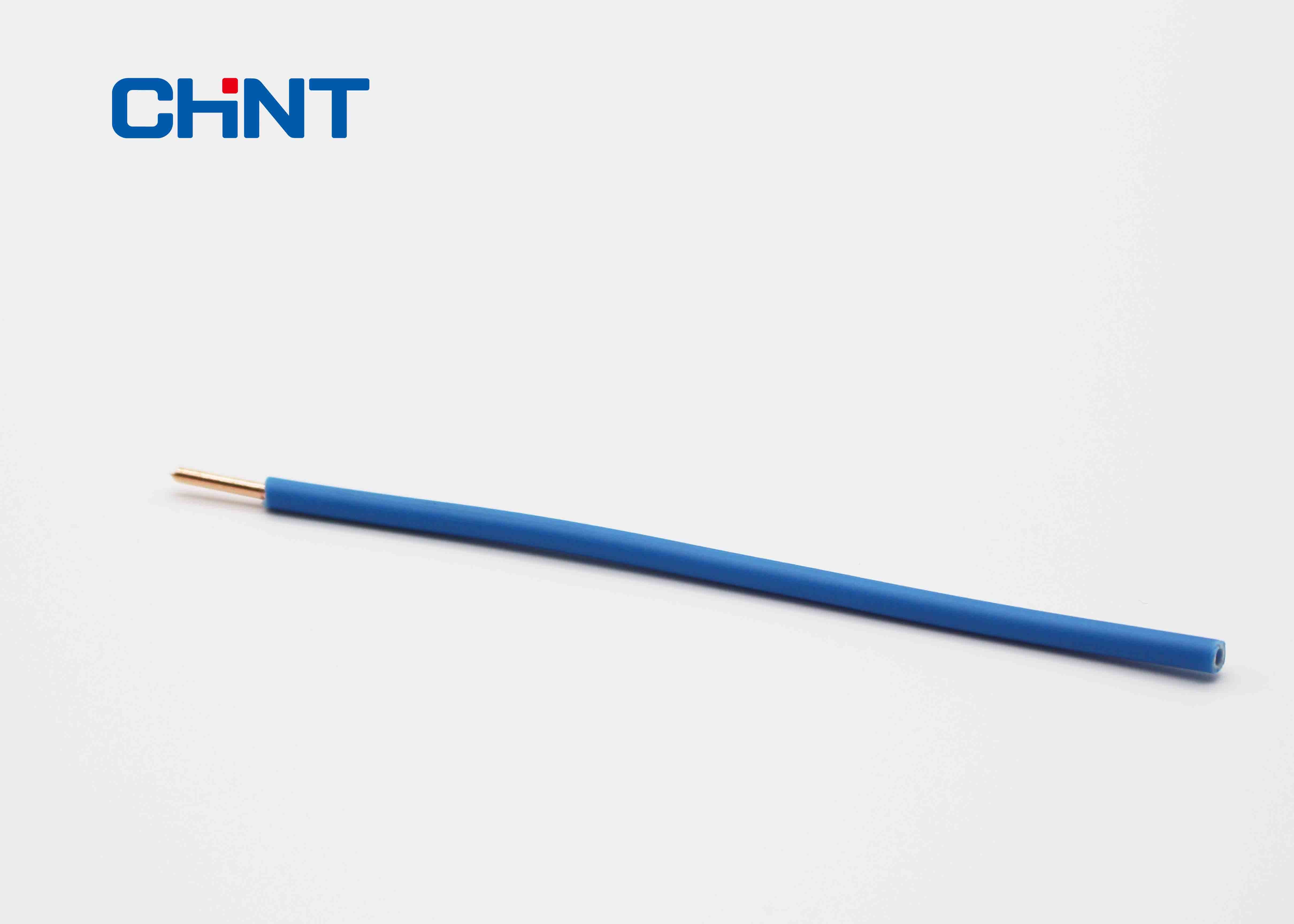

Singlr Core Electrical Cable with Copper Conductor 450 / 750V Rated Voltage
Table 1 - Minimum recommended bending radius at cable temperature of (20±10)℃
| Cable type | Installations minimum bending radius | |||
| Cable diameter mm |
Cable diameter mm |
Cable diameter mm |
Cable diameter mm |
|
| Cable for fixed | d≤8 | 8＜d≤12 | 12＜d≤20 | d＞20 |
| Normal use | 4 D | 5 D | 6 D | 6 D |
| Careful bending at termination | 2 D | 3 D | 4 D | 4 D |
| D = the overall diameter of round cables or the smaller dimension of flat cables. | ||||
Table 2 - Technical Specifications
| Cable type | Strands No./Dia. Of Conductor | Insulation | Approx. | Approx. | Max. D.C Resistance of Conductor (20 ℃) | Testing | Current Rating | ||||||
| Thickness | O.D. | Weight | Voltage | ||||||||||
| A.C | In Air | In Plastic Conduit(A) | In Metal Conduit(A) | ||||||||||
| (A) | |||||||||||||
| / | pc/mm | mm | (mm) | kg/km | Ω /km | kV/5min | / | double | triple | quadruple | double | triple | quadruple |
| 60227IEC05(BV) 300/500V 1×0.5 | 1/1/0.80 | 0.6 | 2.1 | 9 | 36 | 2000 | - | - | - | - | - | - | - |
| 60227IEC05(BV) 300/500V 1×0.75 | 1/1/0.98 | 0.6 | 2.3 | 11 | 24.5 | 2000 | 15 | - | - | - | - | - | - |
| 60227IEC05(BV) 300/500V 1×1 | 1/1/1.13 | 0.6 | 2.4 | 14 | 18.1 | 2000 | 18 | 12 | 11 | 10 | 14 | 13 | 11 |
| 60227IEC01(BV) 450/750V 1×1.5 | 1/1/1.38 | 0.7 | 2.9 | 20 | 12.1 | 2500 | 23 | 16 | 15 | 13 | 19 | 17 | 16 |
| 60227IEC01(BV) 450/750V 1×2.5 | 1/1/1.76 | 0.8 | 3.5 | 31 | 7.41 | 2500 | 31 | 24 | 21 | 19 | 26 | 24 | 22 |
| 60227IEC01(BV) 450/750V 1×4 | 1/1/2.23 | 0.8 | 3.9 | 46 | 4.61 | 2500 | 42 | 31 | 28 | 25 | 35 | 31 | 28 |
| 60227IEC01(BV) 450/750V 1×6 | 1/1/2.74 | 0.8 | 4.5 | 66 | 3.08 | 2500 | 54 | 41 | 36 | 32 | 47 | 41 | 37 |
| 60227IEC01(BV) 450/750V 1×10 | 1/7/1.33 | 1 | 6.2 | 110 | 1.83 | 2500 | 78 | 56 | 49 | 44 | 65 | 57 | 50 |
| 60227IEC01(BV) 450/750V 1×16 | 1/7/1.67 | 1 | 7.2 | 166 | 1.15 | 2500 | 105 | 72 | 65 | 57 | 82 | 73 | 65 |
| 60227IEC01(BV) 450/750V 1×25 | 1/7/2.10 | 1.2 | 8.9 | 260 | 0.727 | 2500 | 140 | 95 | 85 | 75 | 105 | 95 | 85 |
| 60227IEC01(BV) 450/750V 1×35 | 1/7/2.48 | 1.2 | 10 | 351 | 0.524 | 2500 | 175 | 120 | 105 | 93 | 135 | 115 | 105 |
| 60227IEC01(BV) 450/750V 1×50 | 1/19/1.76 | 1.4 | 11.8 | 478 | 0.387 | 2500 | 225 | 150 | 130 | 115 | 165 | 145 | 130 |
| 60227IEC01(BV) 450/750V 1×70 | 1/19/2.10 | 1.4 | 13.5 | 667 | 0.268 | 2500 | 275 | 185 | 165 | 150 | 205 | 185 | 165 |
| 60227IEC01(BV) 450/750V 1×95 | 1/19/2.48 | 1.6 | 15.8 | 924 | 0.193 | 2500 | 340 | 230 | 205 | 185 | 250 | 225 | 200 |
| 60227IEC01(BV) 450/750V 1×120 | 1/24/2.56 | 1.6 | 16.5 | 1,152 | 0.153 | 2500 | 365 | 270 | 240 | 215 | 290 | 260 | 230 |
| 60227IEC01(BV) 450/750V 1×150 | 1/30/2.56 | 1.8 | 18.3 | 1,420 | 0.124 | 2500 | 425 | 305 | 275 | 250 | 330 | 300 | 265 |
| 60227IEC01(BV) 450/750V 1×185 | 1/37/2.56 | 2 | 20.6 | 1,794 | 0.0991 | 2500 | 490 | 355 | 310 | 280 | 380 | 340 | 300 |
| 60227IEC01(BV) 450/750V 1×240 | 1/48/2.58 | 2.2 | 23.2 | 2,346 | 0.0754 | 2500 | - | - | - | - | - | - | - |
| 60227IEC01(BV) 450/750V 1×300 | 1/60/2.58 | 2.4 | 25.7 | 2,923 | 0.0601 | 2500 | - | - | - | - | - | - | - |
| 60227IEC01(BV) 450/750V 1×400 | 1/60/2.93 | 2.6 | 29.1 | 3,782 | 0.047 | 2500 | - | - | - | - | - | - | - |
Description:
Polyvinyl chloride insulated cables of rated voltages up to and including 450/750 V——Non-sheathed cables for fixed wiring
Fixed laying power supply connection for Electrical equipment.
Constructions
Conductor : stranded copper conductor, Cl.1/Cl.2 as per IEC 60228
Insulation : PVC(Polyvinyl chloride) rated at 70 ℃
Applications
Indoor, distribution cabinet, electrical connection.
Standards
International: IEC 60227-3:1997
China: GB∕T 5023.3-2008
Other standards such as BS,VDE and ICEA upon request
Technical data
Rated voltage: See Table 3.
Max. Operating Temp.: 70 ℃.
Ambient Temp.: 20±10 ℃
Ordering Advice
Rated Voltage
Application Standard: IEC/BS/UL/GB
Number of Cores
Conductor Size & Construction
Type of Insulation
The Requirement of Sheath
Length of Cable & Packing Requirement
Other Requirement
PACKING AND SHIPPING
We are capable of meeting the strictest delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self-adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.
