| Place of Origin: | CHINA |
|---|---|
| Brand Name: | CHINT |
| Certification: | CE/CCC/ROSH |
| Model Number: | 60227IEC02(RV) |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | 100m/roll or drum |
| Supply Ability: | 1000km/month |
| Package: | 100m/roll Or Drum | Type: | Low Voltage |
|---|---|---|---|
| Application: | Housing Project Or Building | Insulation Material: | PVC |
| Port: | Shanghai | Conductor: | Copper |
| Conductor Type: | Copper | ||
| High Light: | pvc insulated copper cable,pvc insulated flexible cable |
||

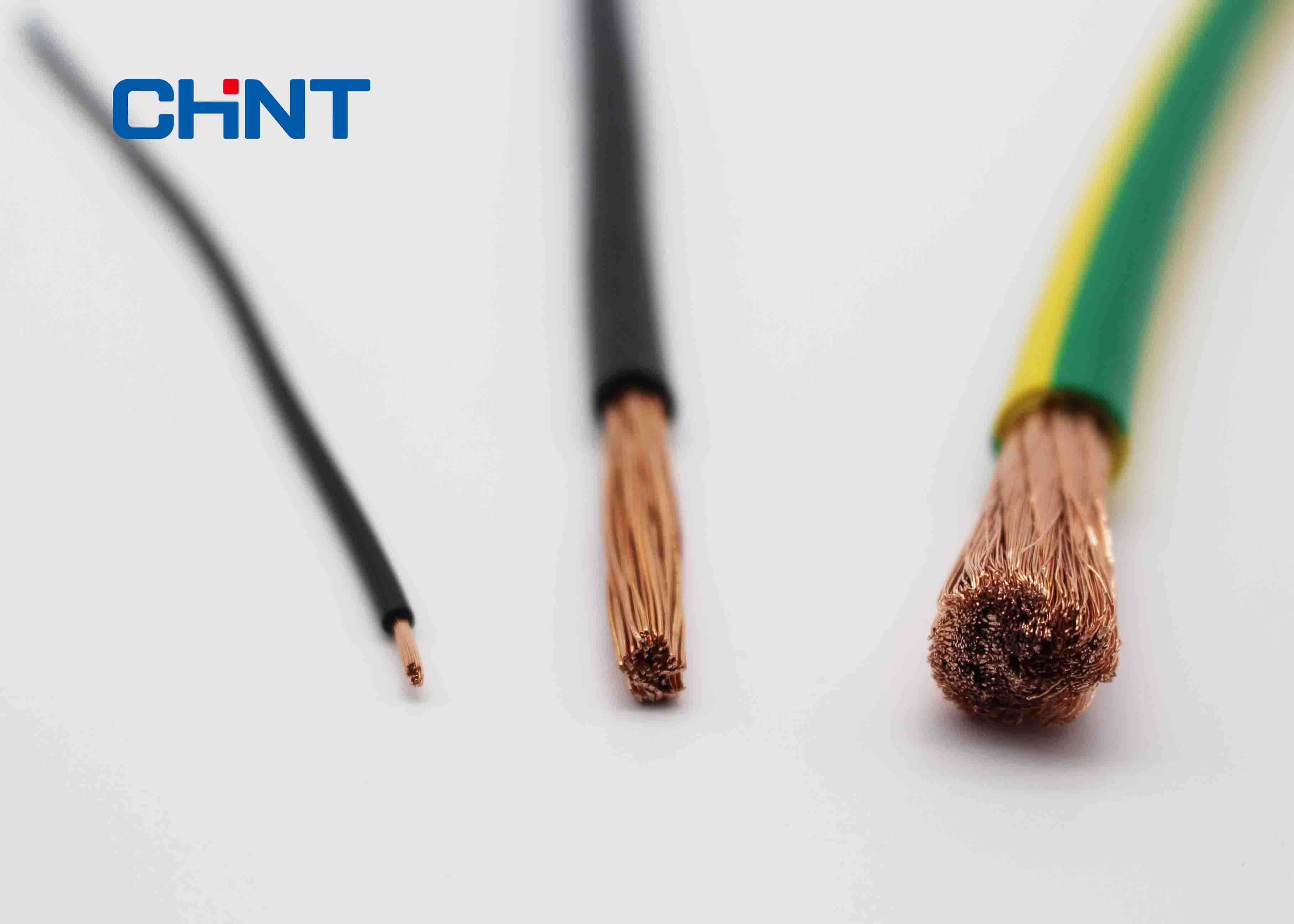

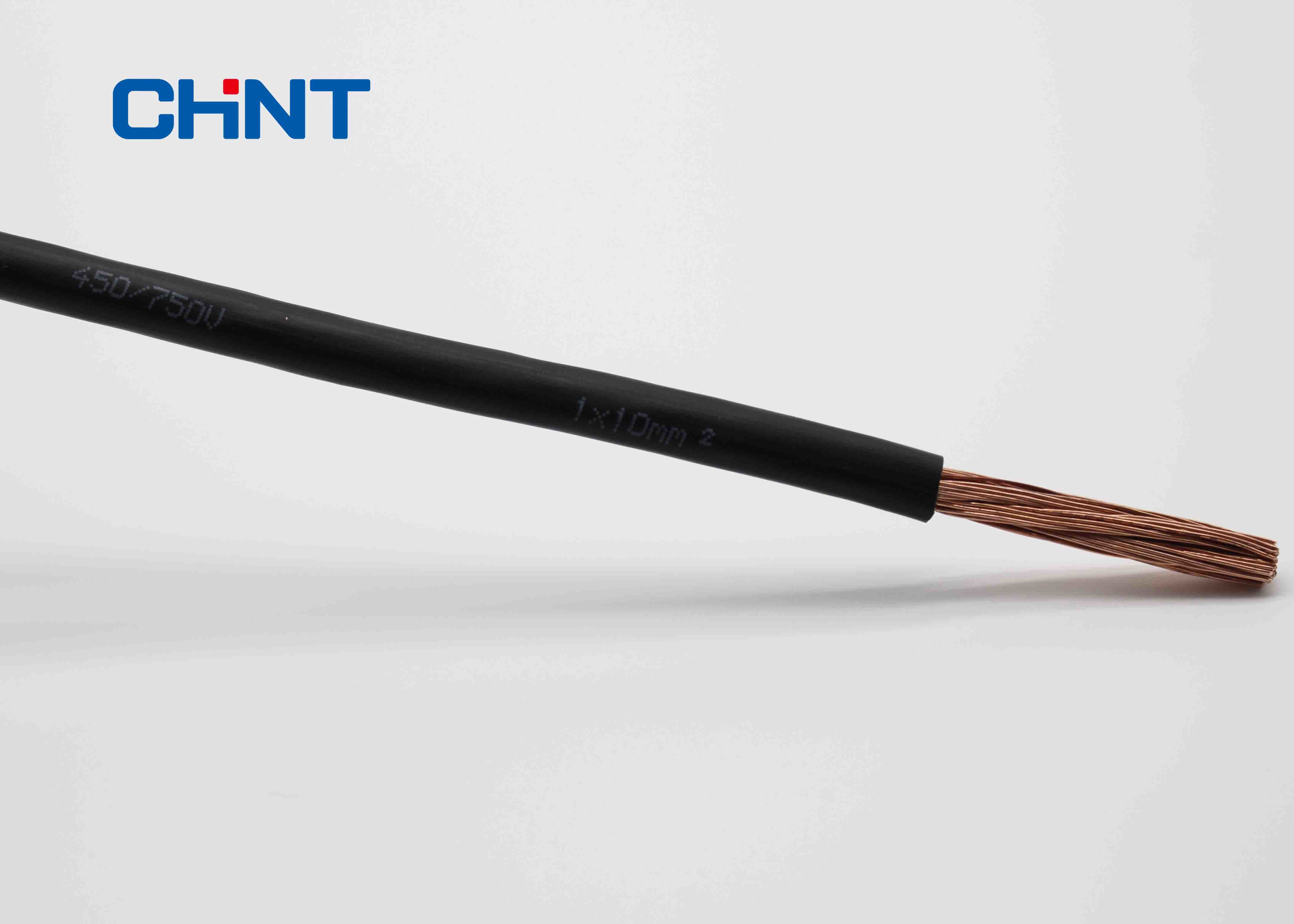

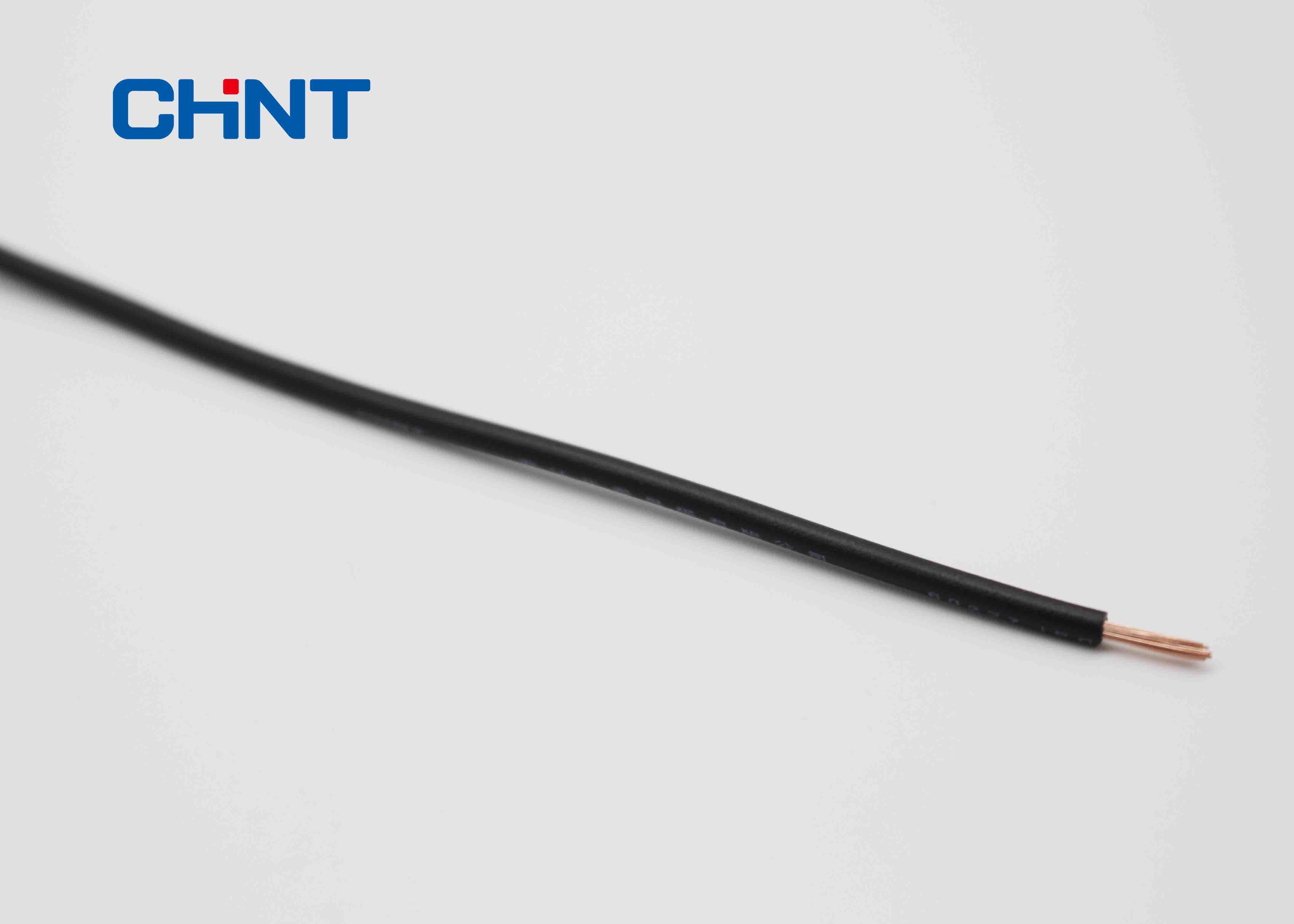

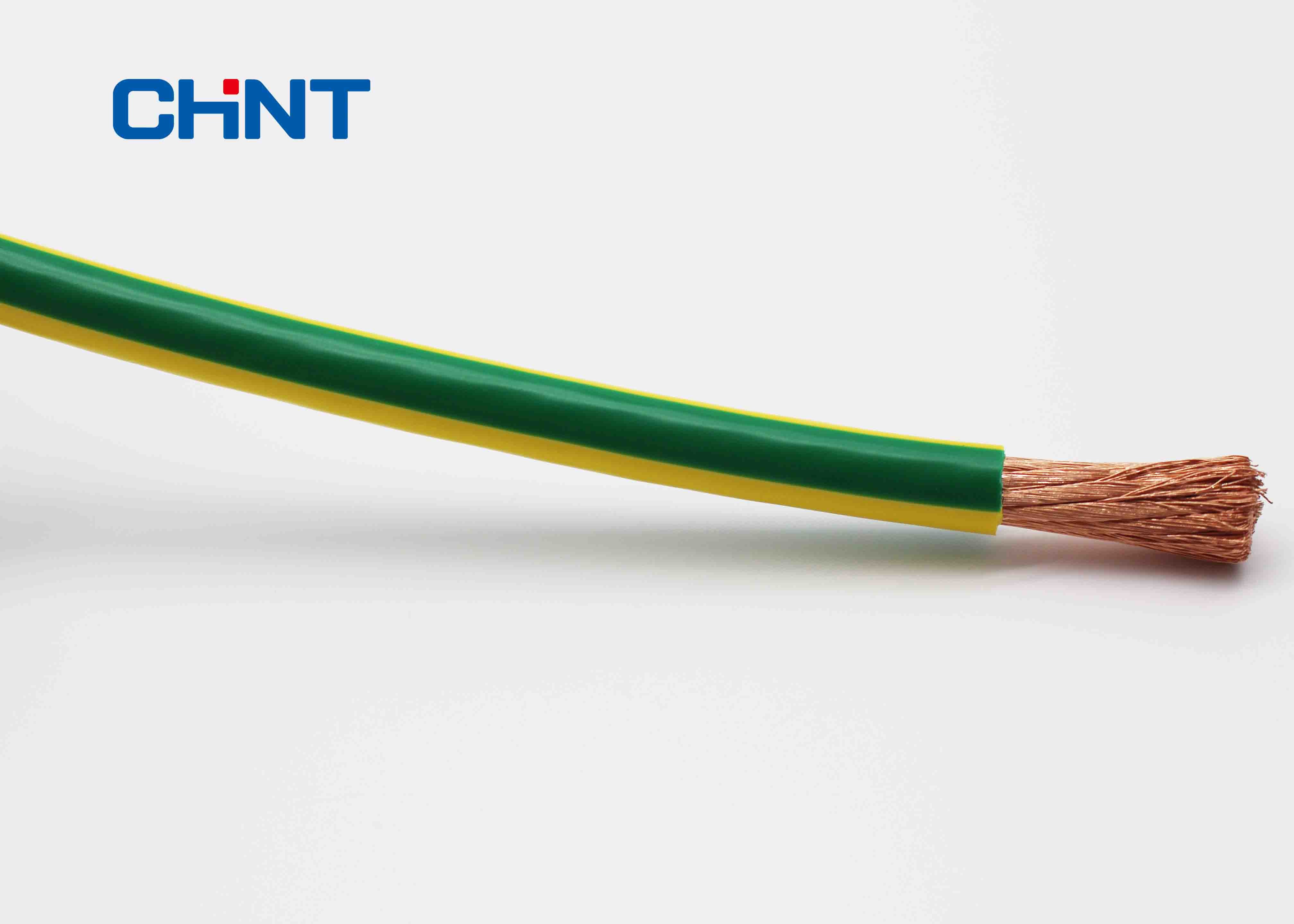

Single Core Flexible Copper Pvc Insulation Wire - Class 5 Housing Wire
Standards
International: IEC 60227-3:1997
China: GB∕T 5023.3-2008
Other standards such as BS,VDE and ICEA upon request
Technical data
Rated voltage: See Table 3.
Max. Operating Temp.: 70 ℃.
Min. Ambient Temp.: 20±10 ℃
Description:
Polyvinyl chloride insulated cables of rated voltages up to and including 450/750 V——Non-sheathed cables for fixed wiring
Fixed laying power supply connection for Electrical equipment.
Constructions
Conductor : Compact stranded copper conductor, Cl.5 as per IEC 60228
Insulation : PVC(Polyvinyl chloride) rated at 70 ℃
Figure 1 Product structure sketch
Note:1- Conductor; 2- Insulation.
Note:
Insulation identification as per standards or customer requirement
Applications
Indoor, distribution cabinet, electrical connection.
Table 2 - Minimum recommended bending radii at cable temperature of (20±10)℃
| Cable type | Installations minimum bending radius | |||
| Cable diameter mm |
Cable diameter mm |
Cable diameter mm |
Cable diameter mm |
|
| Flexible cable (thermoplastic, e.g. PVC) | d≤8 | 8＜d≤12 | 12＜d≤20 | d＞20 |
| Fixed installation | 3 D | 3 D | 4 D | 4 D |
| Free movement | 5 D | 5 D | 6 D | 6 D |
| At inlet of portable appliance or mobile equipment a | 5 D | 5 D | 6 D | 6 D |
| Under mechanical load b | 9 D | 9 D | 9 D | 10 D |
| Festooned c | 10 D | 10 D | 11 D | 12 D |
| Repeated reeling b | 7 D | 7 D | 8 D | 8 D |
| Deflected by pulleys b | 10 D | 10 D | 10 D | 10 D |
| D = the overall diameter of round cables or the smaller dimension of flat cables. a No mechanical load on the cable b See 5.6.2 of IEC 62440 with regard to dynamic stess. c As in gantry cranes. |
||||
Table 3 - Technical Specifications
| Cable type | Rated voltage | Strands No./Dia. Of Conductor | Insulation Thickness | Approx. O.D. | Approx. Weight |
Max. D.C Resistance of Conductor (20 ℃) | Testing Voltage A.C | Current Rating | ||
| In Air(A) /30℃ | ||||||||||
| / | V | pc/mm | mm | (mm) | kg/km | Ω /km | kV/5min | single | double | triple |
| 60227 IEC 06 (RV) 300/500V 1×0.5 | 300/500 | 1/16/0.20 | 0.6 | 2.2 | 9 | 39 | 2000 | 12 | 6 | 4 |
| 60227 IEC 06 (RV) 300/500V 1×0.75 | 300/500 | 1/24/0.20 | 0.6 | 2.4 | 12 | 26 | 2000 | 14 | 8 | 5 |
| 60227 IEC 06 (RV) 300/500V 1×1 | 300/500 | 1/30/0.20 | 0.6 | 2.6 | 14 | 19.5 | 2000 | 17 | 9 | 7 |
| 60227 IEC 02 (RV) 450/750V 1×1.5 | 450/750 | 1/30/0.25 | 0.7 | 3.1 | 20 | 13.3 | 2500 | 22 | 11 | 8 |
| 60227 IEC 02 (RV) 450/750V 1×2.5 | 450/750 | 1/49/0.25 | 0.8 | 3.7 | 31 | 7.98 | 2500 | 29 | 13 | 10 |
| 60227 IEC 02 (RV) 450/750V 1×4 | 450/750 | 1/53/0.30 | 0.8 | 4.3 | 46 | 4.95 | 2500 | 40 | 17 | 11 |
| 60227 IEC 02 (RV) 450/750V 1×6 | 450/750 | 7/12/0.30 | 0.8 | 5.3 | 68 | 3.3 | 2500 | 51 | 24 | 18 |
| 60227 IEC 02 (RV) 450/750V 1×10 | 450/750 | 7/11/0.40 | 1 | 6.7 | 113 | 1.91 | 2500 | 74 | - | - |
| 60227 IEC 02 (RV) 450/750V 1×16 | 450/750 | 7/17/0.40 | 1 | 7.9 | 166 | 1.21 | 2500 | 100 | - | - |
| 60227 IEC 02 (RV) 450/750V 1×25 | 450/750 | 7/26/0.40 | 1.2 | 9.9 | 254 | 0.78 | 2500 | 135 | - | - |
| 60227 IEC 02 (RV) 450/750V 1×35 | 450/750 | 7/36/0.40 | 1.2 | 11.2 | 342 | 0.554 | 2500 | 165 | - | - |
| 60227 IEC 02 (RV) 450/750V 1×50 | 450/750 | 19/19/0.40 | 1.4 | 13.4 | 488 | 0.386 | 2500 | 215 | - | - |
| 60227 IEC 02 (RV) 450/750V 1×70 | 450/750 | 19/17/0.50 | 1.4 | 15.3 | 680 | 0.272 | 2500 | 260 | - | - |
| 60227 IEC 02 (RV) 450/750V 1×95 | 450/750 | 19/23/0.50 | 1.6 | 17.6 | 891 | 0.206 | 2500 | 300- | - | - |
| 60227 IEC 02 (RV) 450/750V 1×120 | 450/750 | 19/30/0.50 | 1.6 | 19.3 | 1,129 | 0.161 | 2500 | 350- | - | - |
| 60227 IEC 02 (RV) 450/750V 1×150 | 450/750 | 37/19/0.50 | 1.8 | 21.5 | 1,402 | 0.129 | 2500 | 400- | - | - |
| 60227 IEC 02 (RV) 450/750V 1×185 | 450/750 | 37/25/0.49 | 2 | 24.1 | 1,740 | 0.106 | 2500 | 450- | - | - |
| 60227 IEC 02 (RV) 450/750V 1×240 | 450/750 | 37/33/0.49 | 2.2 | 27.4 | 2,285 | 0.0801 | 2500 | 550- | - | - |
Ordering Advice
Rated Voltage
Application Standard: IEC/BS/UL/GB
Number of Cores
Conductor Size & Construction
Type of Insulation
The Requirement of Sheath
Length of Cable & Packing Requirement
Other Requirement
PACKING AND SHIPPING
We are capable of meeting the strictest delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self-adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.
