125ºC XLPE Insulation Solar Power Cables Excellent Stripping Performance

Basic Information
Place of Origin: CHINA
Brand Name: CHINT
Certification: TUV/UL
Model Number: PV1-F
Minimum Order Quantity: Negotiable
Price: Negotiable

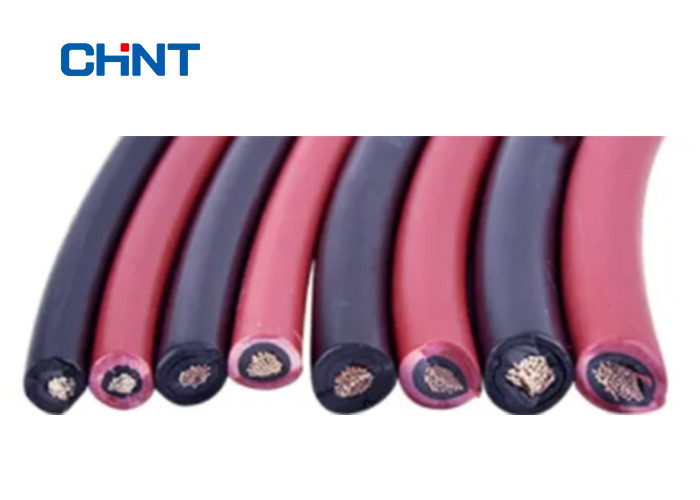

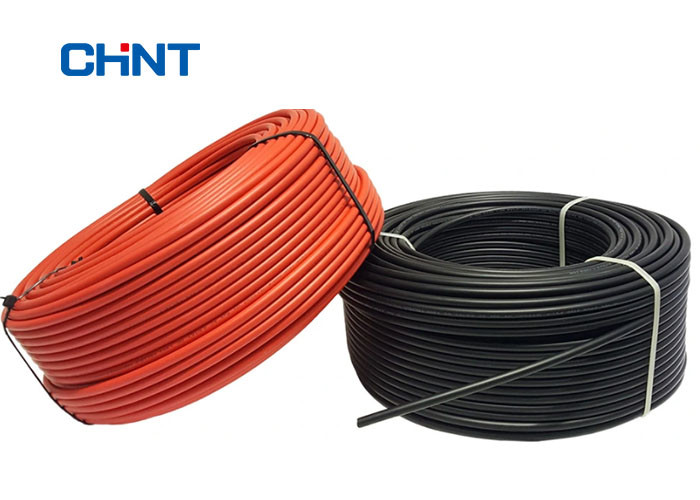

Packaging Details: 100M/Roll Wooden drum/iorn drum
Supply Ability: 2000KM/Month
Certification: TUV Wire Core Material: Tinned Wire
Rated Voltage: 1500V Ambient Temperature: -40ºC--90ºC
Fireproof: En60332-1-2 Material Shape: Round Wire
High Light:

solar system cable

,

solar photovoltaic cable

Photovoltaic TUV UL Tinned Copper PV1f PV Solar Cable 6mm2 4mm2 2.5mm2





Product Description



Approvals:
TÜV EN50618 H1Z2Z2-K

Product features:
1. Rated Voltage: DC 1500V
2. Ambient Temperature: -40ºC--90ºC Max. Temperature at Conductor 120ºC:
3. Conductor: Tin-Plated copper, Class5
4. Insulation: 125ºC XLPE
5. Jacket: 125ºC XLPE
6. Color: Black
7. Marking: FRCABLE TÜV EN50618 H1Z2Z2-K DC 1.5KV, 1X4.0mm2 Meter marking


Application:

Specifically designed for connecting photovoltaic system components inside and outside of building and equipment with high mechanical requirements and extreme weather conditions For permanent installations.


General characteristic

Cable made of electron-beam cross-linked insulation and coating; high resistance against heat, cold, oil, abrasion, ozone, UV and weather; with improved reaction in case of fire .



1. Double insulation,electron beam cross-linked

2. Excellent resistance to UV, water, ozone, fluids, salt, general Weathering

3. Excellent resistance to abrasion

4. Halogen free,flame retardant,low toxicity

5. Excellent flexibility and stripping performance

6. High current carrying capacity

7. TUV and UL approved



Specification:



Cross

Section

(mm²)

Conductor

Construction

(n/mm)

Conductor

Stranded

OD.(mm)

Insulation

Min.Wall

Thickness(mm)

Sheath

Min.Wall

Thickness(mm)

Cable

OD.(mm)

Conductor

Max.Resistance

AT20°C

(Ω/km)

Current

Araaing

Capacity AT

60°C(A)

1.5mm² 30/0.25 1.58 0.67 0.73 4.90 13.3 30
2.5mm² 50/0.25 2.02 0.67 0.73 5.45 7.98 41
4mm² 56/0.30 2.60 0.67 0.73 6.10 4.95 55
6mm² 84/0.30 3.42 0.8 0.80 7.20 3.30 70
10mm² 142/0.30 4.56 0.9 0.90 9.00 1.91 98
16mm² 228/0.30 5.60 1.00 0.90 10.20 1.21 132



PHOTOFLEX Photovoltaic Cable



Applications

These cables are designed for connecting photovoltaic system components inside and outside of buildings and equipment with high mechanical requirements and extreme weather conditions.



Standards

DIN EN 50618 (H1Z2Z2-K)

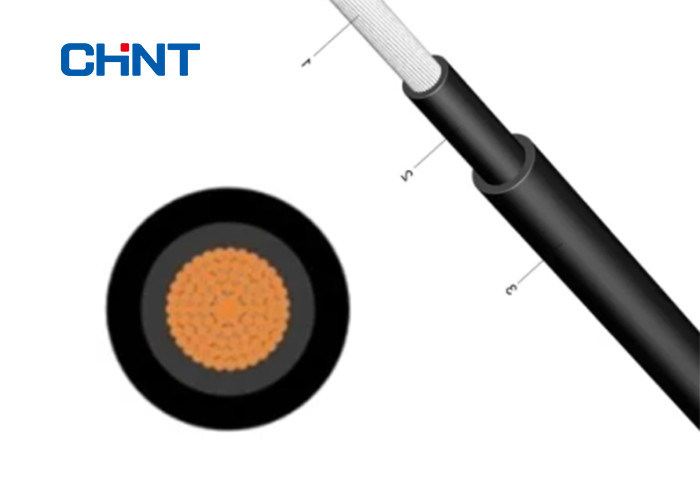

Construction

Conductor Stranded tinned copper conductor per DIN VDE 0295 and IEC 60228 Class 5.
Insulation Electron beam cross-linked, halogen free and flame retardant compound.
Sheath Electron beam cross-linked, LSZH and flame retardant compound, Black.



Electrical Properties

Rated Voltage U0/U 1/1 kV AC; 1.5/1.5 kV DC
Maximum Permitted DC Voltage 1.8 kV DC (conductor/conductor, non earthed system, circuit not under load)
Insulation Resistance 1000 MΩ-km
Spark Test 6000 Vac (8400 Vdc)
Voltage Withstand

6500 Vac for 5 minElectron


Thermal Properties

Maximum Voltage 1.2KV (AC), 1.8KV (DC)
Ambient Temperature -40ºC ~ +90ºC
Maximum Temperature At Conductor 120ºC (20000h) according to IEC/EN 60216-1
Short Circuit Temperature 200ºC/5 sec
Thermal Endurance Test According to EN 60216-2 (temperature index +120° C)
Damp-Heat Resistance According to EN 50618, Table 2with 85% humidity(test acc. to EN 60068-2-78)
