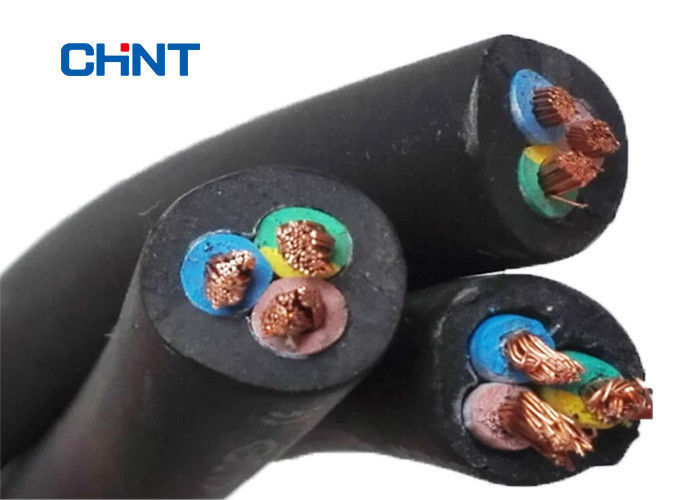

Super Flexible Rubber Jacket Cable Lightweight Synthetic Elastomer Sheathed

Basic Information
Place of Origin: China
Brand Name: CHINT
Certification: CCC/KEMA/SGS
Model Number: H07RN-F
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Export wooden drum or iron drum
Supply Ability: 1000km/month
Type: Low Voltage Colour: Black Or Yellow
Core: 3 Or 4 Or 5 Insulation: EPDM Insulation
Port: Shanghai Package: Export Wooden Drum
High Light:

rubber insulated flexible cable

,

rubber insulated power cables

Ho7rnf super flexible rubber multi core cable rated voltage 450/750V





Product Description



H07RN-F Cable Construction:



H07RN-F Cable Technical Data:



H07RN-F Cable Ratings & Approvals:



Working temperature:
H07RN-F model rated voltage U0/U IS 450/750V
H05RN-F model rated voltage U0/U IS 300/500V
H05RR-F model rated voltage U0/U IS 300/500V
Long time allow working temperature of wire core cant be higher than 60C



HAR Code IEC Description Voltage Design Cores
H05RR-F 60245IEC 53(YZ)/YZ Ordinary rubber sheathed cord 300/500V 2~6
H05RN-F 60245 IEC 57(YZW)/YZW Ordinary polychloroprene or other equivalent synthetic elastomer sheathed cord 300/500V 2~6
H07RN-F 60245 IEC 66(YCW)/YC Heavy polychloroprene or other equivalent synthetic elastomer sheathed flexible cable 450/750V
1~5, 3+1/3+2/4+1
H01N2-D 60245 IEC 81(YH) Rubber sheathed arc-welding electrode cable 100/100V 10-120
60245
IEC 82(YHF)
polychloroprene or other equivalent synthetic elastomer sheathed arc-welding electrode cable 100/100V 10-120



The Product Model & Specification



Core no. x Nominal sectional area (mm2) Pcs./Wire dia. (mm) Insulation thickness(mm)

Sheath thickness

(mm)

Average outer dia.(mm) Weight Reference kg/km

Max DC resistance of conductor at20°C

Ω/km

Min. Max.
1×1.5 30/0.25 0.8 1.4 5.7 7.1 76 13.3
1×2.5 49/0.25 0.9 1.4 6.3 7.9 98 7.98
1×4 56/0.30 1.0 1.5 7.2 9.0 130 4.95
1×6 84/0.30 1.0 1.6 7.9 9.8 174 3.30
1×10 84/0.40 1.2 1.8 9.5 11.9 251 1.91
1×16 126/0.40 1.2 1.9 10.8 13.4 330 1.21
1×25 196/0.40 1.4 2.0 12.7 15.8 475 0.780
1×35 276/0.40 1.4 2.2 14.3 17.9 605 0.554
1×50 396/0.40 1.6 2.4 16.5 20.6 828 0.386



PACKAGING&SHIPPING



Different package for customer choose !

Our electrical cable export packing is specially made to ensure that the quality of the products will be not affected during the transportation. Our electrical cable is using electrical cable wheel for the packing, the wheel can be all steel, steel frame and fumigated wood, or fumigated wooden cases. We are using different packing for different length of the cable, to ensure there will be no problem during the delivery of the products.

1. If the diameter of the wheel is longer than 2 meters, we are using all steel wheel to pack the products

2. If the diameter of the wheel is between 1.4meters to 1.8meters, we are using steel frame and fumigated wood to pack the products.

3. If the diameter of the wheel is less than 1.4meters, we will use the fumigated wooden wheel to pack the products

4. For the packing of the electrical wires and small quantity of cables, we will use the fumigated wooden box to pack.
