Concentric Stranded Conductors , ACSR Aluminum Conductor Simple Structure

Basic Information
Place of Origin: CHINA
Brand Name: CHINT
Certification: IEC/CE
Model Number: ACSR
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: wooden drum
Supply Ability: 500km per month

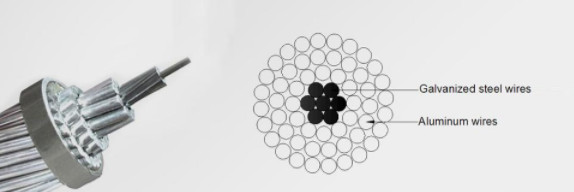

Port: Concentric Stranded Outer Layer: AL Stranded
Inner Layer: Steel Wire Outer Layer Direction: Left
Appllication: Transmission Line Certification: ISO, CCC, CE
High Light:

bare aluminum conductor

,

overhead line conductor

ACSR Aluminium Conductor Steel Reinforced Using In Transmission Line



1. Applications

ACSR conductors have been widely used in power transmission lines with various voltage levels,because they have such good characteristics as simple structure,convenient installation and maintenance,low cost large transmission capacity.And they are also suitable for laying across rivers valleys and the places where special geographical features exist.



2. Service Performance



2.1. The permissible long-time operating temperature for aerial conductor is 70oC.



2.2. Under the circumstance that rare climate is occuring and ice coverage rate low in heavy ice area,the biggest stress of cable at the lowest point of the sag should not exceed 60% of the short-time destructive power.



2.3. When connecting conductors,the conductor beside the connecting tube cant be prominent.Otherwise,the force on the operating conductors will be unbalanced.After connectors are install,the connecting tube should be painted by moisture-proof varnish in order to protect it from corrosion.



2.4. Under installaion,the arc downing stress of all the conductors should be the same.With in the permissible distance of crossing buildings or dropping to the ground,the stress can be 10-15% higher than regular stress.



3. Product Performance



3.1. The electrical performance of ACSR is indicated in DCΩ/km (20oC).The resistivity of the hard aluminum wire for stranded wires is not greater than 28.264 nΩ. m of international standard value.



3.2. The rated tensile strengh of ACSR is denoted with sum of all aluminum conductorstensile strength and steels tensile strength.



a. The tensile strength of all aluminum conductors is denoted with the result of all cross sections of aluminum conductors multiplied by min.tensile strength of corresponding size specified in the standard for aluminum wire.

b. The tensile strength of all steel wire is denoted with the result of all cross sections of steel wires multiplied by the stress at 1% elongation of corresponding size specified in the standard for steel wire.



4. Material Standard



4.1. The hard aluminum conductor used for ACSR conforms to the standard GB/T 1179-2008(equivalent to IEC 61089).



4.2. The zinc coated steel wire used for ACSR conforms to IEC 61089.



4.3. Production can be arranged according to customers requirements for material standard,etc.



5. Data sheet

Cross-section

mm2

AL/ST.

No./Dia.(mm) Calculated cross-section(mm22) Diameter
(mm)
DC resistant≤(Ω/km) Calculated tensile(N) weight
(kg/kn)
Delivery length(m)
AL ST. AL ST. total
10/2 6/1.50 1/1.50 10.60 1.77 12.37 4.50 2.706 4120 42.9 3000
16/3 6/1.85 1/1.85 16.13 2.69 18.82 5.55 1.779 6130 65.2 3000
25/4 6/2.32 1/2.32 25.36 4.23 29.59 6.96 1.131 9290 102.6 3000
35/6 6/2.72 1/2.72 34.86 5.81 40.67 8.16 0.8230 12630 141.0 3000
50/8 6/3.20 1/3.20 48.25 8.04 56.29 9.60 0.5946 16870 195.1 2000
50/30 12/2.32 7/2.32 50.73 29.59 80.32 11.60 0.5692 42620 372.0 3000
70/10 6/3.80 1/3.80 68.05 11.34 79.39 11.40 0.4217 23390 275.2 2000
70/40 12/2.72 7/2.72 69.73 40.67 110.40 13.60 0.4141 58300 511.3 2000
95/15 26/2.15 7/1.67 94.39 15.33 109.72 13.61 0.3058 35000 380.8 2000
95/20 7/4.16 7/1.85 95.14 18.82 113.96 13.87 0.3019 37200 408.9 2000
95/55 12/3.20 7/3.20 96.51 56.30 152.81 16.00 0.2992 78110 707.7 2000
120/7 18/2.90 1/2.90 118.89 6.61 125.50 14.50 0.2422 27570 379.0 2000
120/20 26/2.38 7/1.85 115.67 18.82 134.49 15.07 0.2496 41000 466.8 2000
120/25 7/4.72 7/2.10 122.48 24.25 146.73 15.74 0.2345 47880 526.6 2000
120/70 12/3.60 7/3.60 122.15 71.25 193.40 18.00 0.2364 98370 895.6 2000
150/8 18/3.20 1/3.20 144.76 8.04 152.80 16.00 0.1989 32860 461.4 2000
150/20 24/2.78 7/1.85 145.68 18.82 164.50 16.67 0.1980 46630 549.4 2000
150/25 26/2.70 7/2.10 148.86 24.25 173.11 17.10 0.1939 54110 601.0 2000
150/35 30/2.50 7/2.50 147.26 34.36 181.62 17.50 0.1962 65020 676.2 2000
185/10 18/3.60 1/3.60 183.22 10.18 193.40 18.00 0.1572 40880 584.0 2000
185/25 24/3.15 7/2.10 187.04 24.25 211.29 18.90 0.1542 59420 706.1 2000
185/30 26/2.98 7/2.32 181.34 29.59 210.93 18.88 0.1592 64320 732.6 2000
185/45 20/2.80 7/2.80 184.73 43.10 227.83 19.60 0.1564 80190 848.2 2000
210/10 18/3.80 1/3.80 204.14 11.34 215.48 19.00 0.1411 45140 650.7 2000
210/25 24/3.33 7/2.22 209.02 27.10 236.12 19.98 0.1380 65990 789.1 2000
210/35 26/3.22 7/2.50 211.73 34.36 246.09 20.38 0.1363 74250 853.9 2000
210/50 30/2.98 7/2.98 209.24 48.82 258.06 20.86 0.1381 90830 960.8 2000
240/30 24/3.60 7/2.40 244.29 31.67 275.96 21.60 0.1181 75620 922.2 2000
240/40 26/3.42 7/2.66 238.85 38.90 277.75 21.66 0.1209 83370 964.3 2000
240/55 30/3.20 7/3.20 241.27 56.30 297.57 22.40 0.1198 102100 1108 2000
300/15 42/3.00 7/1.67 296.88 15.33 312.21 23.01 0.09724 68060 939.8 2000
300/20 45/2.93 7/1.95 303.42 20.91 324.33 23.43 0.09520 75680 1002 2000
300/25 48/2.85 7/2.22 306.21 27.10 333.31 23.76 0.09433 83410 1058 2000
300/40 24/3.99 7/2.66 300.09 38.90 338.99 23.94 0.09614 92220 1133 2000
300/50 26/3.83 7/2.98 299.54 48.82 348.36 24.26 0.09636 103400 1210 2000
300/70 30/3.60 7/3.60 305.36 71.25 376.61 25.20 0.09463 128000 1402 2000
400/20 42/3.51 7/1.95 406.40 20.91 427.31 26.91 0.07104 88850 1286 1500
400/25 45/3.33 7/2.22 391.91 27.10 419.01 26.64 0.07370 95940 1295 1500
400/35 48/3.22 7/2.50 390.88 34.36 425.24 26.82 0.07389 103900 1349 1500
400/50 54/3.07 7/3.07 399.73 51.82 451.55 27.63 0.07232 123400 1511 1500
400/65 26/4.42 7/3.44 398.94 65.06 464.00 28.00 0.07236 135200 1611 1500
400/95 30/4.16 19/2.50 407.75 93.27 501.02 29.14 0.07087 171300 1860 1500
500/35 45/3.75 7/2.50 497.01 34.36 531.37 30.00 0.05812 119500 1642 1500
500/45 48/3.60 7/2.80 488.58 43.10 531.68 30.00 0.05912 128100 1688 1500
500/65 54/3.44 7/3.44 501.88 65.06 566.94 30.96 0.05760 154000 1897 1500
630/45 45/4.20 7/2.80 623.45 43.10 666.55 33.60 0.04633 148700 2060 1200
630/55 48/4.12 7/3.20 639.92 56.30 696.22 34.32 0.04514 164400 2209 1200
630/80 54/3.87 19/2.32 635.19 80.32 715.51 34.82 0.04551 192900 2388 1200
800/55 45/4.80 7/3.20 814.30 56.30 870.60 38.40 0.03547 191500 2690 1000
800/70 48/4.63 7/3.60 808.15 71.25 879.40 38.58 0.03574 207000 2791 1000
800/100 54/4.33 19/2.60 795.17 100.88 896.05 38.98 0.03635 241100 2991 1000



6. FAQ

Q: Is your company a factory or trading company?

A: We are factory with our own trading company. Our trade business expands home and abroad

Q: When can I get the price?

A:We usually quote within 12 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your e-mail so that we will regard your inquiry priority.

Q: How can I get a sample to check your quality?

A: After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.

Q: What is Minimum Order Quantity?

A: Generally, 1000 meters for building wire. For power cable, armored or unarmored, 500 meters.

Q: Which standards for your products?

A: We can produce wire and cable according to international standards: IEC, ASTM, BS, DIN, SANS, CSA or as customers’ requirement.

Q: How about delivery time?

A: If we have stock, delivery would be very quick. For the newly-produced products, 15 to 25 days for production.

 Q: Payment terms:

A: Normally 30% paid as prepayment, balance paid before delivery. Or 100% L/C at sight

Q: What is your packing?A: Our electrical cable is using electrical cable wheel for the packing, the wheel can be all steel, steel frame and fumigated wood, or fumigated wooden cases. We are using different packing for different length of the cable, to ensure there will be no problem during the delivery of the products.
