Round Wire Stranded Conductors , Aluminium Alloy Transmission Line Conductor

Basic Information
Place of Origin: CHINA
Brand Name: CHINT
Certification: ISO, CCC, CE
Model Number: AAAC ACSR AAC ACAR
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden Reel, Steel Reel
Supply Ability: 500km/month
Wire Core Material: Aluminium, Aluminium Alloy Material Shape: Round Wire
Package: Wooden Reel, Steel Reel ACSR Voltage: LV, MV, HV
Port: Shanghai Certification: ISO, CCC, CE
High Light:

bare aluminum conductor

,

stranded aluminum wire

Aluminum Conductor Steel Reinforced. ACSR Conductor, Power Transmission Line



Constructions



1, Application:
It is widely used in overhead transmission and distribution lines.

2, Section diagram:

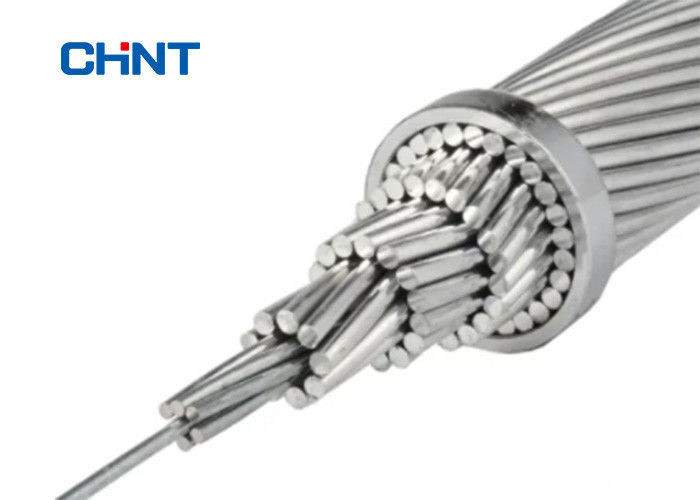

The conductor is composed by round aluminum wires and round, coated steel core wire(s) for use as overhead electrical conductors.

3, Standard:
ASTM B 232, AS 3607-1989, BS 215 Part 2, DIN 48204, DIN 48201/8.

4, Packing:
Wooden drum, plywood drum, steel drum

5, Technical Specification: ASTM B232



Code WordsA Class Stranding
Design
Al/St
Stranding Nominal O.D. of Conductors In. Mass
lb/1000ft
Al St
No. Dialn.c Layers No. Dialn.c Layers
Thrasher AA 76/19 76 0.1744 4 19 0.0814 2 1.802 2523
Kiwi AA 72/7 72 0.1735 4 7 0.1157 1 1.735 2301
Bluebird AA 84/19 84 0.1602 4 19 0.0961 2 1.762 2508
Chukar AA 84/19 84 0.1456 4 19 0.0874 2 1.602 2072
Falcon AA 54/19 54 0.1716 3 19 0.1030 2 1.545 2042
Lapwing AA 45/7 45 0.1880 3 7 0.1253 1 1.504 1790
Parrot AA 54/19 54 0.1672 3 19 0.1003 2 1.505 1938
Nuthatch AA 45/7 45 0.1832 3 7 0.1221 1 1.466 1700
Plover AA 54/19 54 0.1628 3 19 0.0977 2 1.465 1838
Bobolink AA 45/7 45 0.1783 3 7 0.1189 1 1.427 1611
Martin AA 54/19 54 0.1582 3 19 0.0949 2 1.424 1735
Dipper AA 45/7 45 0.1733 3 7 0.1155 1 1.386 1521
Pheasant AA 54/19 54 0.1535 3 19 0.0921 2 1.382 1634
Bittern AA 45/7 45 0.1681 3 7 0.1121 1 1.345 1432
Skylark AA 36/1 36 0.1880 3 1 0.1880 0 1.316 1286
Grackle AA 54/19 54 0.1486 3 19 0.0892 2 1.338 1531
Bunting AA 45/7 45 0.1628 3 7 0.1085 1 1.302 1342
Finch AA 54/19 54 0.1436 3 19 0.0862 2 1.293 1430
Bluejay AA 45/7 45 0.1573 3 7 0.1049 1 1.259 1254
Curlew AA 54/7 54 0.1383 3 7 0.1383 1 1.245 1329
Ortolan AA 45/7 45 0.1515 3 7 0.1010 1 1.212 1163
Tanager AA 36/1 36 0.1694 3 1 0.1694 0 1.186 1044
Cardinal AA 54/7 54 0.1329 3 7 0.1329 1 1.196 1227.1
Rail AA 45/7 45 0.1456 3 7 0.0971 1 1.165 1074
Catbird AA 36/1 36 0.1628 3 1 0.1628 0 1.140 964
Canary AA 54/7 54 0.1291 3 7 0.1291 1 1.162 1158
Ruddy AA 45/7 45 0.1414 3 7 0.0943 1 1.131 1013
Mallard AA 30/19 30 0.1628 2 19 0.0977 2 1.140 1233.9
Condor AA 54/7 54 0.1213 3 7 0.1213 1 1.092 1022
Tern AA 45/7 45 0.1329 3 7 0.0886 1 1.063 895
Drake AA 26/7 26 0.1749 2 7 0.1360 1 1.108 1093
Cuckoo AA 24/7 24 0.1820 2 7 0.1213 1 1.092 1023
Coot AA 36/1 36 0.1486 3 1 0.1486 0 1.040 803.6
Redwing AA 30/19 30 0.1544 2 19 0.0926 2 1.081 1109.3
Starling AA 26/7 26 0.1659 2 7 0.1290 1 1.051 983.7
Stilt AA 24/7 24 0.1727 2 7 0.1151 1 1.036 921
Gannet AA 26/7 26 0.1601 2 7 0.1245 1 1.014 916.2
Flamingo AA 24/7 24 0.1667 2 7 0.1111 1 1.000 857.9
Egret AA 30/19 30 0.1456 2 19 0.0874 2 1.019 987.2
Scoter AA 30/7 30 0.1456 2 7 0.1456 1 1.019 995.1
Grosbeak AA 26/7 26 0.1564 2 7 0.1216 1 0.990 874.2
Rook AA 24/7 24 0.1628 2 7 0.1085 1 0.977 818.2
Swift AA 36/1 36 0.1329 3 1 0.1329 0 0.930 642.8
Kingbird AA 18/1 18 0.1880 2 1 0.1880 0 0.940 689.9
Teal AA 30/19 30 0.1420 2 19 0.0852 2 0.994 938.6
Wood Duck AA 30/7 30 0.1420 2 7 0.1420 1 0.994 946.5
Squab AA 26/7 26 0.1525 2 7 0.1186 1 0.966 831.3
Peacock AA 24/7 24 0.1588 2 7 0.1059 1 0.953 778.8



ASTM B232



Code WordsA Class Stranding
Design
Al/St
Stranding Nominal O.D. of Conductors In. Mass
lb/1000ft
Al St
No. Dialn.c Layers No. Dialn.c Layers
Eagle AA 30/7 30 0.1362 2 7 0.1362 1 0.953 870.7
Dove AA 26/7 26 0.1463 2 7 0.1138 1 0.927 765.2
Parakeet AA 24/7 24 0.1523 2 7 0.1015 1 0.914 716.1
Osprey AA 18/1 18 0.1758 2 1 0.1758 0 0.879 603.3
Hen AA 30/7 30 0.1261 2 7 0.1261 1 0.883 746.4
Hawk AA 26/7 26 0.1354 2 7 0.1053 1 0.858 655.3
Flicker AA 24/7 24 0.1410 2 7 0.0940 1 0.846 613.9
Pelican AA 18/1 18 0.1628 2 1 0.1628 0 0.814 517.3
Lark AA 30/7 30 0.1151 2 7 0.1151 1 0.806 621.8
Ibis AA 26/7 26 0.1236 2 7 0.0961 1 0.783 546.0
Brant AA 24/7 24 0.1287 2 7 0.0858 1 0.772 511.4
Chickadee AA 18/1 18 0.1486 2 1 0.1486 0 0.743 431.0
Oriole AA 30/7 30 0.1059 2 7 0.1059 1 0.741 526.4
Linnet AA 26/7 26 0.1137 2 7 0.0884 1 0.720 462.0
Merlin AA 18/1 18 0.1367 2 1 0.1367 0 0.684 364.8
Ostrich AA 26/7 26 0.1074 2 7 0.0835 1 0.680 412.2
Partridge AA 26/7 26 0.1013 2 7 0.0788 1 0.642 366.9
Waxwing AA 18/1 18 0.1217 2 1 0.1217 0 0.609 289.1
Penguin AA 6/1 6 0.1878 1 1 0.1878 0 0.563 290.8
Cochin AA 12/7 12 0.1327 1 7 0.1327 1 0.664 526.8
Brahma AA 16/19 16 0.1127 1 19 0.0977 2 0.714 674.6
Dorking AA 12/7 12 0.1261 1 7 0.1261 1 0.631 475.7
Dotterel AA 12/7 12 0.1214 1 7 0.1214 1 0.607 440.9
Pigeon AA 6/1 6 0.1672 1 1 0.1672 0 0.502 230.5
Guinea AA 12/7 12 0.1151 1 7 0.1151 1 0.576 396.3
Leghorn AA 12/7 12 0.1059 1 7 0.1059 1 0.530 335.5
Quail AA 6/1 6 0.1489 1 1 0.1489 0 0.447 182.8
Minorca AA 12/7 12 0.0961 1 7 0.0961 1 0.481 276.3
Reven AA 6/1 6 0.1327 1 1 0.1327 0 0.398 145.2
Petrel AA 12/7 12 0.0921 1 7 0.0921 1 0.461 253.8
Robin AA 6/1 6 0.1181 1 1 0.1181 0 0.354 115.0
Grouse AA 8/1 8 0.1000 1 1 0.1670 0 0.367 148.8
Sparate AA 7/1 7 0.0974 1 1 0.1299 0 0.325 106.63
Sparrow AA 6/1 6 0.1052 1 1 0.1052 0 0.316 91.2
Swanate AA 7/1 7 0.0772 1 1 0.1029 0 0.257 66.95
Swan AA 6/1 6 0.0834 1 1 0.0834 0 0.250 57.35
AA 6/1 6 0.0743 1 1 0.0743 0 0.223 45.51
Turkey AA 6/1 6 0.0661 1 1 0.0661 0 0.198 36.02



Ordering Advice

Rated Voltage

Application Standard: IEC/BS/UL/GB

Number of Cores

Conductor Size & Construction

Type of Insulation

Armored or unarmored. If armor, the armor type & material

The Requirement of Sheath

Length of Cable & Packing Requirement

Other Requirement





PACKING AND SHIPPING

All cable for exporting are well packed and protected by wooden drum or Wood and Steel Drum.

The packing material is depended on the weight and size of cable.

The good information, manufacture information, and the client's information is firmly printed on each size of drum.



After the well packed cable drums sent to Sea Port, they are loaded into 20 FT container or 40 FT container. All cable drum are firmly fixed by safety belt to make sure, no movement during the sea freight.

The size of the container is chosen according to weight of total loaded goods or as per the client's requirement.
