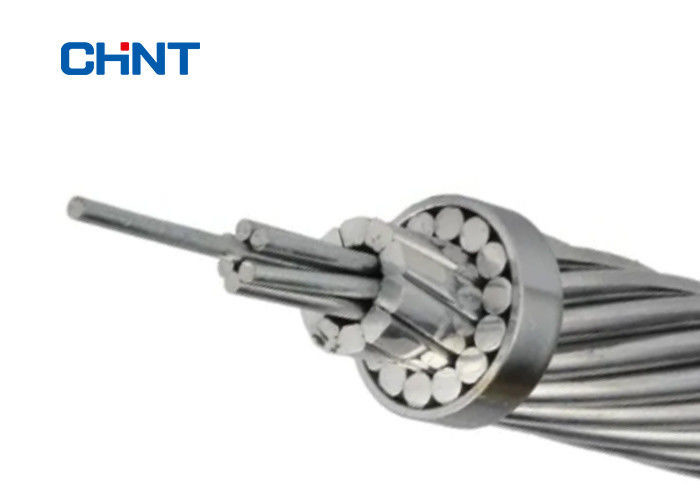

AAAC ACSR AAC ACAR Stranded Conductors , Overhead Bare Aluminum Conductor

Basic Information
Place of Origin: CHINA
Brand Name: CHINT
Certification: ISO, CCC, CE
Model Number: AAAC ACSR AAC ACAR
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden Reel, Steel Reel
Supply Ability: 500km/month
ACSR Voltage: LV, MV, HV Stranded Type: Concentric Stranded
Material Shape: Round Wire Wire Core Material: Steel,Aluminum
Certification: ISO, CCC, CE Port: Shanghai
High Light:

overhead line conductor

,

stranded aluminum wire

AAAC ACSR AAC Acar All Aluminium or Alloy Overhead Bare Conductor



Constructions



1. Bare Aluminum and Aluminium alloy Conductor



Specifications
Application Overhead transmission and primary and secondary distribution
Manufactured standards AAC Conductor AAAC Conductor Overhead transmission bare conductor-Round wire concentric-lay overhead electrical stranded AAC and AAAC conductor
ASTM B 231
BS EN-50182
CSA C 61089
AS/NZS 1531
DIN 48201
IEC 61089
GB/T 1179
JIS 3109
ASTM B-399
BS EN-50182
CSA C 61089
AS/NZS 1531
DIN 48201
IEC 61089
GB/T 1179
Conductor type Max. Cross-section 5000MCM/2500mm2, Max. stranded number 127Nos
We can according to our client's need and also provide technical data.
Construction Aluminum 1350-H19 wires, concentrically stranded.
Packing 2500m per roll, can be supplied in any length required.



2. Bare Aluminum Conductor Steel Reinforced



Specifications
Application Used as bare overhead transmission cable and as primary and secondary distribution cable. ACSR offers optimal strength for line design. Variable steel core stranding enables desired strength to be achieved without sacrificing ampacity.
Manufactured standards ASTM B-232, BS EN-50182, CSA C 61089, AS/NZS 3607, DIN 48204,IEC 61089, GB/T 1179, JIS 3110
  Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced
Conductor type Max. cross-section 3500MCM/1750mm2, Max. stranded number 127Nos
We can according to our client's need and also provide technical data.
Construction Bare aluminum alloy 1350-H19 wires, concentrically stranded about a Class A
galvanized coated steel core wire.
Packing 2500m per roll, can be supplied in any length required.



3. Bare Aluminum Conductor Alloy Reinforced



Specifications
Application Aluminum Conductor Alloy Reinforced (ACAR) cable is an excellent conductor choice where current carrying capacity, higher strength and a lower conductor weight are critical to the line design.
Manufactured standards ASTM B230 Specification for Aluminum 1350-H19 Wire for Electrical Purposes
ASTM B398 Specification for Aluminum Alloy 6201-T81 Wire for Electrical Purposes
ASTM B524 Specification for Concentric-Lay-Stranded Aluminum Conductors, Aluminum Alloy Reinforced (ACAR, 1350/6201)
Conductor type Max. Cross-section 3000MCM, Max. stranded number 91Nos
We can according to our client's need and also provide technical data.
Construction Aluminum Conductor Alloy Reinforced (ACAR) cable has aluminum 1350 H-19 wires stranded around a 6201-T81 aluminum alloy core concentrically
Packing 2500m per roll, can be supplied in any length required.



Ordering Advice

Rated Voltage

Application Standard: IEC/BS/UL/GB

Number of Cores

Conductor Size & Construction

Type of Insulation

Armored or unarmored. If armor, the armor type & material

The Requirement of Sheath

Length of Cable & Packing Requirement

Other Requirement





PACKING AND SHIPPING

All cable for exporting are well packed and protected by wooden drum or Wood and Steel Drum.

The packing material is depended on the weight and size of cable.

The good information, manufacture information, and the client's information is firmly printed on each size of drum.



After the well packed cable drums sent to Sea Port, they are loaded into 20 FT container or 40 FT container. All cable drum are firmly fixed by safety belt to make sure, no movement during the sea freight.

The size of the container is chosen according to weight of total loaded goods or as per the client's requirement.
