LSZH Class 2 Copper Conductor XLPE insulation and steel tape armored MV Cable IEC 60502 3 cores 300mm2

Basic Information
Place of Origin: CHINA
Brand Name: CHINT
Certification: CE/SGS/KEMA
Model Number: LSZH(WDZR-YJY22)
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden drum/iorn drum
Supply Ability: 500km/month
Core: 1 Or 3 Outer Sheath: LSZH
Insulation: XLPE Rated Voltage: 6/10kv
Color: Orange Or Black Standard: IEC 60502,BS 6622,CB/T 12706,DIN VDE 0276
High Light:

lszh fire resistant cable

,

flame retardant low smoke cables

LSZH Class 2 Copper Conductor XLPE insulation and steel tape armored MV Cable IEC 60502 3 cores 300mm2


Detailed Product Description


What is LSOH Power Cable
Typical structure of LSOH flame-retardant cable: non-metallic cable cladding material is LSOH flame-retardant material with different properties. This structure enables the cable to pass class A tests in IEC 60332-3-22 and related tests in IEC 60754 and IEC 61034
.
Benefits of FR Cable
When a fire occurs, the combustion of combustibles in the ordinary power system will produce a large amount of halogen-containing smoke. The LSOH power cable and the LSOH building materials used together can effectively reduce the total amount of smoke released by combustible combustion and the content of halogen, so as to reduce the casualty rate in the fire.
The cable has good radial compressive performance.

Constructions
Conductor : Compact stranded copper conductor, Cl.2 as per IEC 60228
Conductor Screen: Semi-conductor
Insulation : XLPE(cross-linked polyethylene) rated at 90 ℃
Insulation Screen: Semi-conductor
Screen : Copper tape
Interlining: LSOH Flame Retardant Polyolefin, black
Armouring: STA(Steel-Tape Armouring)
Sheath : LSOH Flame Retardant Polyolefin, black

Note:
Insulation identification as per standards or customer requirement

Applications
Laying in room ,tunnel ,cable trench ,and pipes.

Standards
International: IEC 60502, IEC 60228, IEC 60332, IEC 60754
China: GB∕T 12706.2-2008, GB∕T 19666-2005
Other standards such as BS,VDE and ICEA upon request

Technical data
Rated voltage: 6/10 kV
Maximum Conductor Temperature: under normal (90 ℃), emergency (130℃) or short circuit no more than 5 s (250℃) conditions.
Min. Ambient Temp.: The cable shall be pre heated if the ambient temperature is below 0℃
Min. Bending Radius: single core cable 20(d+D)±5%
Multi-core cable 15(d+D)±5%

Certificates
CE, SGS, KEMA and more others at request

Technical Specifications


Nom. Cross-section of conductor Strands No./Dia. Of Conductor Insulation
Thickness
Thickness of Copper Strip Thickness of steel tape Sheath Thickness Approx. O.D. Approx. Max. D.C Resistance of Conductor (20 ℃) Testing Voltage A.C Current Rating
Weight In air (A) In soil(A)
1×25 7/2.17+0.01 3.4 0.12 0.2 1.8 23.9 872 0.727 24 165 160
1×35 7/2.56+0.01 3.4 0.12 0.2 1.8 24.9 999 0.524 24 205 190
1×50 19/1.86+0.01 3.4 0.12 0.2 1.8 26.2 1161 0.387 24 245 225
1×70 14/2.56+0.01 3.4 0.12 0.2 1.8 27.9 1413 0.268 24 305 275
1×95 19/2.56+0.02 3.4 0.12 0.2 1.9 29.7 1724 0.193 24 370 330
1×120 24/2.56+0.02 3.4 0.12 0.2 1.9 31.2 2000 0.153 24 430 375
1×150 30/2.56+0.01 3.4 0.12 0.2 2.0 32.8 2313 0.124 24 490 425
1×185 37/2.56+0.02 3.4 0.12 0.2 2.0 34.6 2729 0.0991 24 560 480
1×240 48/2.58+0.02 3.4 0.12 0.5 2.1 38.8 3735 0.0754 24 665 555
1×300 60/2.58+0.02 3.4 0.12 0.5 2.2 41.2 4404 0.0601 24 765 630
1×400 60/2.93+0.02 3.4 0.12 0.5 2.3 44.5 5403 0.047 24 890 725
1×500 60/3.33+0.02 3.4 0.12 0.5 2.4 47.9 6617 0.0366 24 1030 825
1×630 60/3.76+0.02 3.4 0.12 0.5 2.5 51.7 8085 0.0283 24 1200 950
3×25 7/2.17+0.01 3.4 0.10 0.5 2.4 46.1 3143 0.727 24 120 125
3×35 7/2.56+0.01 3.4 0.10 0.5 2.4 48.3 3576 0.524 24 140 155
3×50 19/1.86+0.01 3.4 0.10 0.5 2.6 52.3 4229 0.387 24 165 180
3×70 14/2.56+0.01 3.4 0.10 0.5 2.7 56.3 5135 0.268 24 210 220
3×95 19/2.56+0.02 3.4 0.10 0.5 2.8 60.0 6157 0.193 24 255 265
3×120 24/2.56+0.02 3.4 0.10 0.5 2.9 63.6 7142 0.153 24 290 300
3×150 30/2.56+0.01 3.4 0.10 0.5 3.0 66.8 8167 0.124 24 330 340
3×185 37/2.56+0.02 3.4 0.10 0.5 3.1 71.1 9614 0.0991 24 375 380
3×240 48/2.58+0.02 3.4 0.10 0.5 3.3 76.5 11702 0.0754 24 435 435
3×300 60/2.58+0.02 3.4 0.10 0.5 3.5 81.8 13879 0.0601 24 493 485
3×400 60/2.93+0.02 3.4 0.10 0.8 3.7 89.8 17886 0.047 24 565 520



Ordering Advice
Rated Voltage
Application Standard: IEC/BS/UL/GB
Number of Cores
Conductor Size & Construction
Type of Insulation
Armored or unarmored. If armor, the armor type & material
The Requirement of Sheath
Length of Cable & Packing Requirement
Other Requirement

Packing and shipping
steel wooden drum, other as required and shipping in general is by sea.



Cable Drum Data

CABLE DRUMS D1=Flange Diameter(mm) W=Useful Width (mm) D2=Barrel Diameter(mm)
1000 700 500
1100 700 550
1200 700 600
1400 750 710
1600 900 900
1800 1120 1000
2400 1150 1300



Product photo

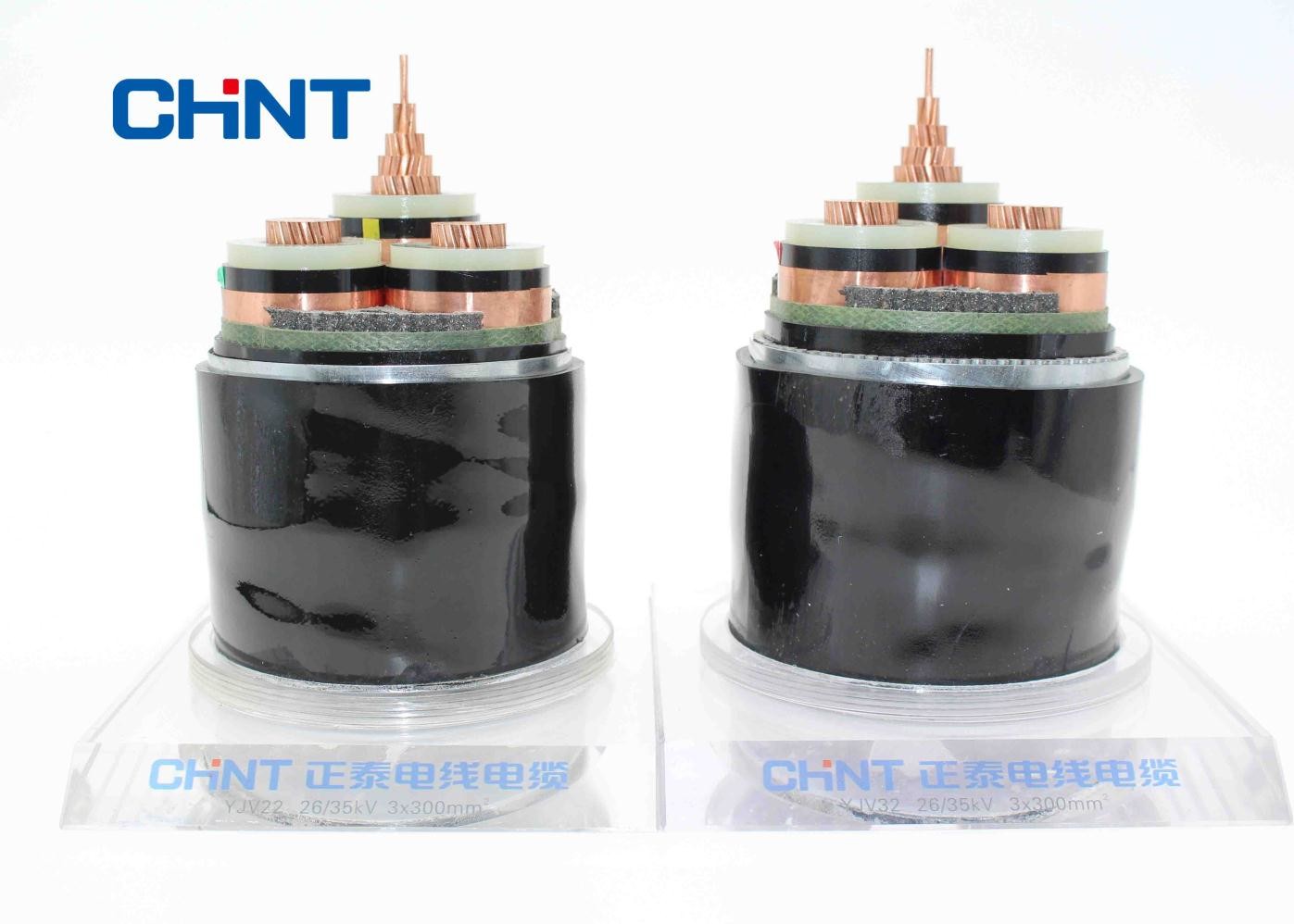

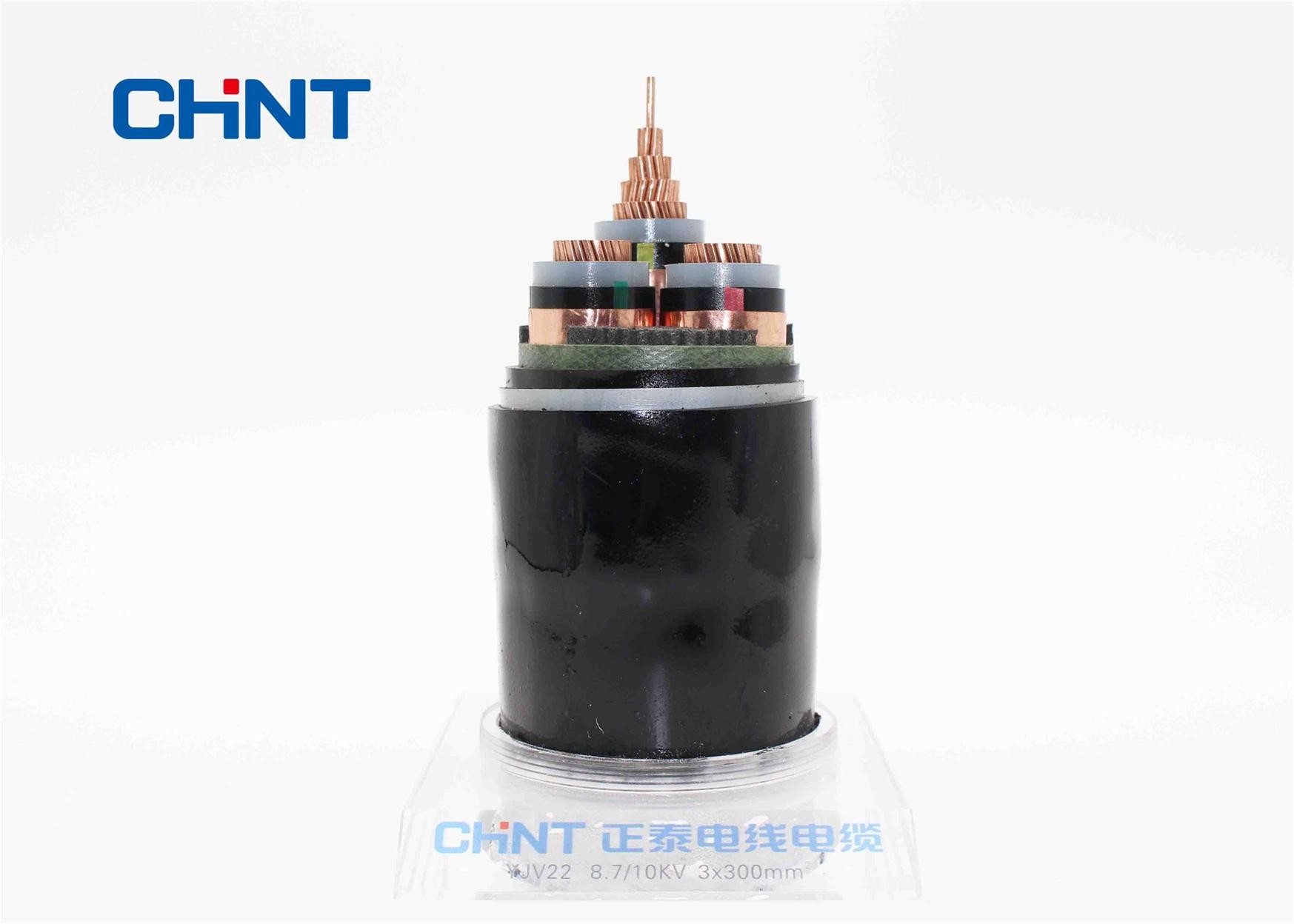

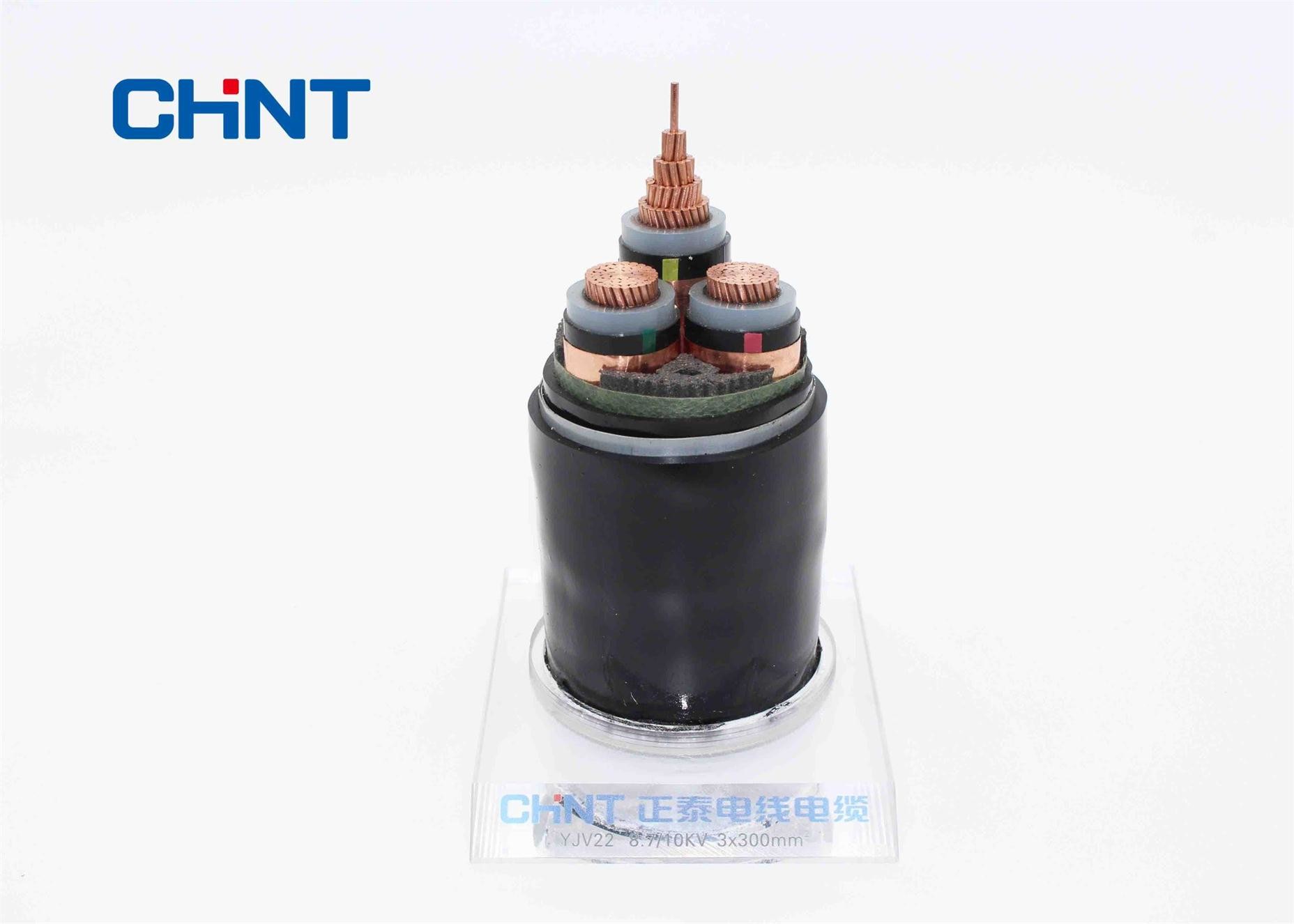

LSZH Class 2 Copper Conductor XLPE insulation and steel tape armored MV Cable IEC 60502 3 cores 300mm2 0
