Underground MV power cable with cu/XLPE/CTS/LSOH/STA/LSOH rated voltage 8.7/15kV

Basic Information
Place of Origin: CHINA
Brand Name: CHINT
Certification: CE/SGS/KEMA
Model Number: LSZH(WDZR-YJY22)
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden drum/iorn drum
Supply Ability: 500km/month
Filler: PP Or FR-PP Inner Sheath: LSZH Material
Metallic Screen: CTS Or CWS Sheath: LSOH Material
Core Identification: Red Yellow Green Laying: Tunnel Or Directly Buried
High Light:

lszh power cables

,

flame retardant low smoke cables

Underground MV power cable with cu/XLPE/CTS/LSOH/STA/LSOH rated voltage 8.7/15kV


Detailed Product Description


Ordering Advice

Rated Voltage

Application Standard: IEC/BS/UL/GB

Number of Cores

Conductor Size & Construction

Type of Insulation

Armored or unarmored. If armor, the armor type & material

The Requirement of Sheath

Length of Cable & Packing Requirement

Other Requirement



Standards

International: IEC 60502, IEC 60228, IEC 60332, IEC 60754

China: GB∕T 12706.2-2008, GB∕T 19666-2005

Other standards such as BS,VDE and ICEA upon request



Note:

Insulation identification as per standards or customer requirement



Applications

Laying in room ,tunnel ,cable trench ,and pipes.



Constructions

Conductor : Compact stranded copper conductor, Cl.2 as per IEC 60228

Conductor Screen: Semi-conductor

Insulation : XLPE(cross-linked polyethylene) rated at 90 ℃

Insulation Screen: Semi-conductor

Screen : Copper tape

Interlining: LSOH Flame Retardant Polyolefin, black

Armouring: STA(Steel-Tape Armouring)

Sheath : LSOH Flame Retardant Polyolefin, black



Technical data

Rated voltage: 8.7/10 kV

Maximum Conductor Temperature: under normal (90 ℃), emergency (130℃) or short circuit no more than 5 s (250℃) conditions.

Min. Ambient Temp.: The cable shall be pre heated if the ambient temperature is below 0℃

Min. Bending Radius: single core cable 20(d+D)±5%

Multi-core cable 15(d+D)±5%



Certificates

CE, SGS, KEMA and more others at request



Technical Specifications



Nom. Cross-section of conductor Strands No./Dia. Of Conductor Insulation
Thickness
Thickness of Copper Strip Thickness of steel tape Sheath Thickness Approx. O.D. Approx. Max. D.C Resistance of Conductor (20 ℃) Testing Voltage A.C Current Rating
Weight In air (A) In soil(A)
1×25 7/2.17+0.01 4.5 0.12 0.2 1.8 26.1 984 0.727 35 165 160
1×35 7/2.56+0.01 4.5 0.12 0.2 1.8 27.1 1114 0.524 35 205 190
1×50 19/1.86+0.01 4.5 0.12 0.2 1.8 28.4 1281 0.387 35 245 225
1×70 14/2.56+0.01 4.5 0.12 0.2 1.9 30.3 1551 0.268 35 305 275
1×95 19/2.56+0.02 4.5 0.12 0.2 1.9 31.9 1855 0.193 35 370 330
1×120 24/2.56+0.02 4.5 0.12 0.2 2.0 33.6 2150 0.153 35 430 375
1×150 30/2.56+0.01 4.5 0.12 0.2 2.0 35.0 2454 0.124 35 490 425
1×185 37/2.56+0.02 4.5 0.12 0.5 2.1 38.8 3278 0.0991 35 560 480
1×240 48/2.58+0.02 4.5 0.12 0.5 2.2 41.2 3932 0.0754 35 665 555
1×300 60/2.58+0.02 4.5 0.12 0.5 2.3 43.6 4610 0.0601 35 765 630
1×400 60/2.93+0.02 4.5 0.12 0.5 2.4 46.9 5622 0.047 35 890 725
1×500 60/3.33+0.02 4.5 0.12 0.5 2.5 50.5 6867 0.0366 35 1030 825
1×630 60/3.76+0.02 4.5 0.12 0.5 2.6 54.1 8350 0.0283 35 1200 950
3×25 7/2.17+0.01 4.5 0.10 0.5 2.5 51.4 3637 0.727 35 120 125
3×35 7/2.56+0.01 4.5 0.10 0.5 2.6 53.8 4111 0.524 35 140 155
3×50 19/1.86+0.01 4.5 0.10 0.5 2.7 57.4 4769 0.387 35 165 180
3×70 14/2.56+0.01 4.5 0.10 0.5 2.8 61.3 5678 0.268 35 210 220
3×95 19/2.56+0.02 4.5 0.10 0.5 3.0 65.3 6784 0.193 35 255 265
3×120 24/2.56+0.02 4.5 0.10 0.5 3.1 69.0 7798 0.153 35 290 300
3×150 30/2.56+0.01 4.5 0.10 0.5 3.2 72.2 8849 0.124 35 330 340
3×185 37/2.56+0.02 4.5 0.10 0.5 3.3 76.5 10330 0.0991 35 375 380
3×240 48/2.58+0.02 4.5 0.10 0.5 3.5 81.8 12462 0.0754 35 435 435
3×300 60/2.58+0.02 4.5 0.10 0.8 3.7 88.3 15516 0.0601 35 493 485
3×400 60/2.93+0.02 4.5 0.10 0.8 3.9 95.2 18795 0.047 35 565 520


PACKING AND SHIPPING

All cable for exporting are well packed and protected by wooden drum or Wood and Steel Drum.

The packing material is depended on the weight and size of cable.

The good information, manufacture information, and the client's information is firmly printed on each size of drum.



After the well packed cable drums sent to Sea Port, they are loaded into 20 FT container or 40 FT container. All cable drum are firmly fixed by safety belt to make sure, no movement during the sea freight.

The size of the container is chosen according to weight of total loaded goods or as per the client's requirement.



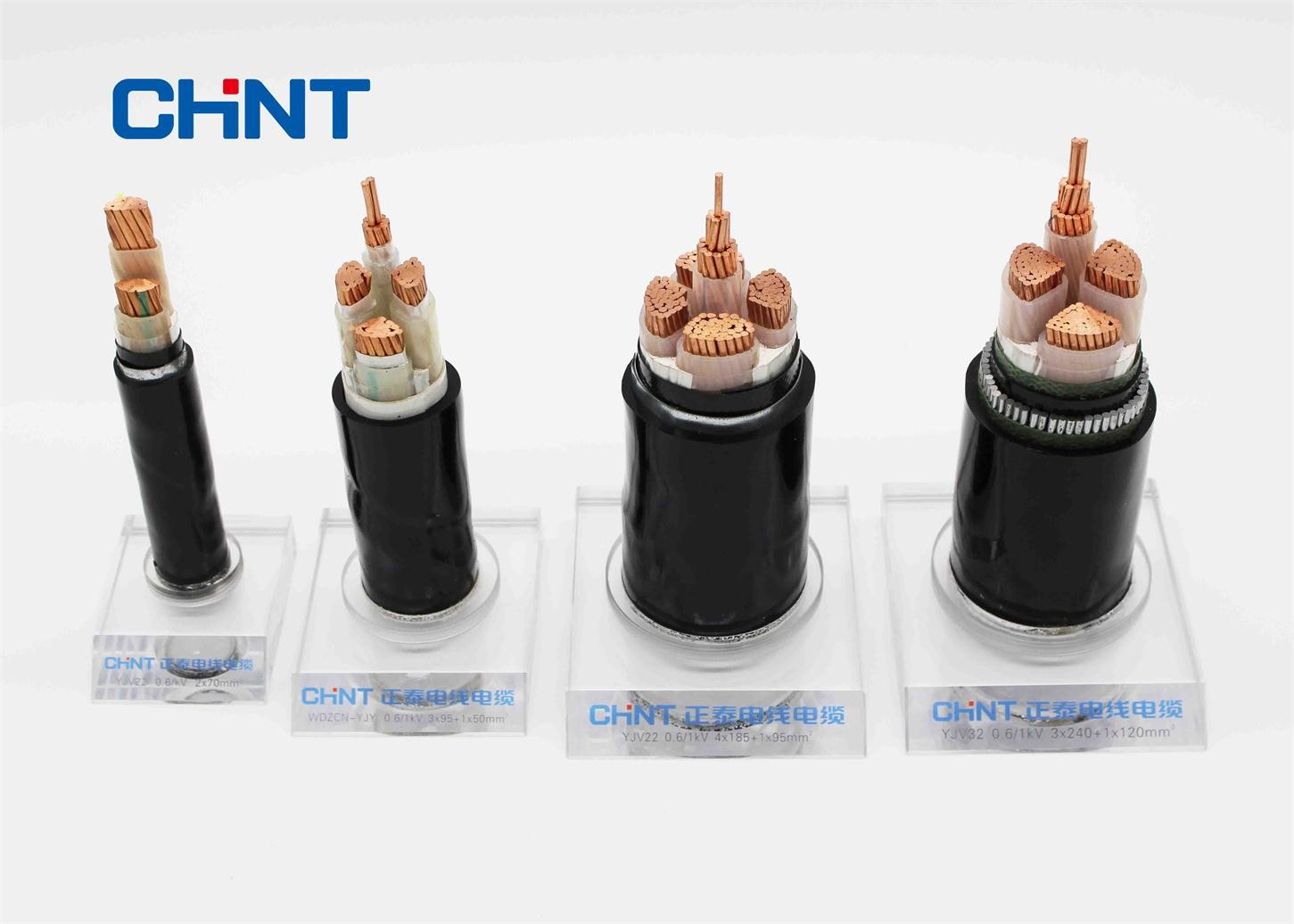

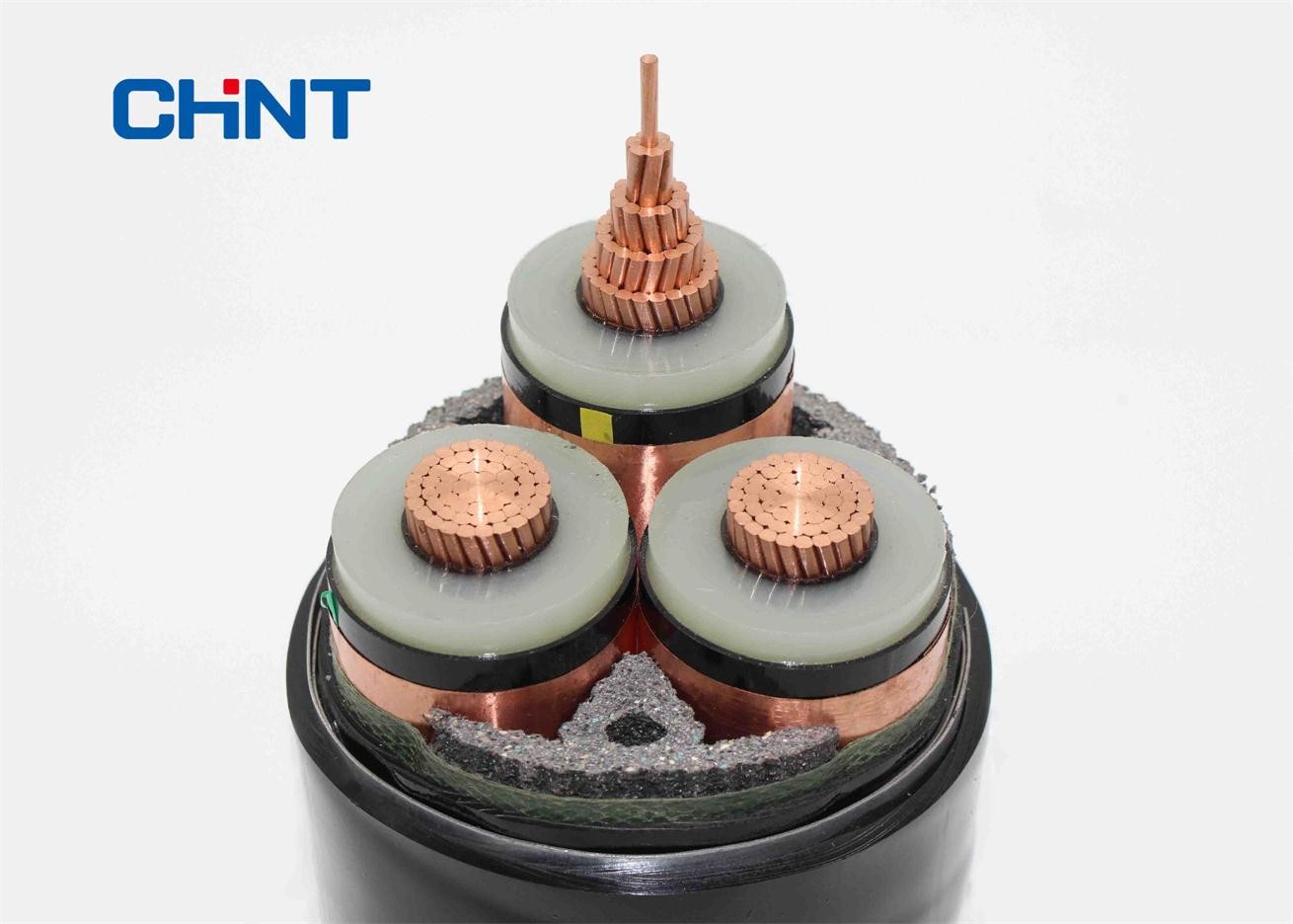

Product photo

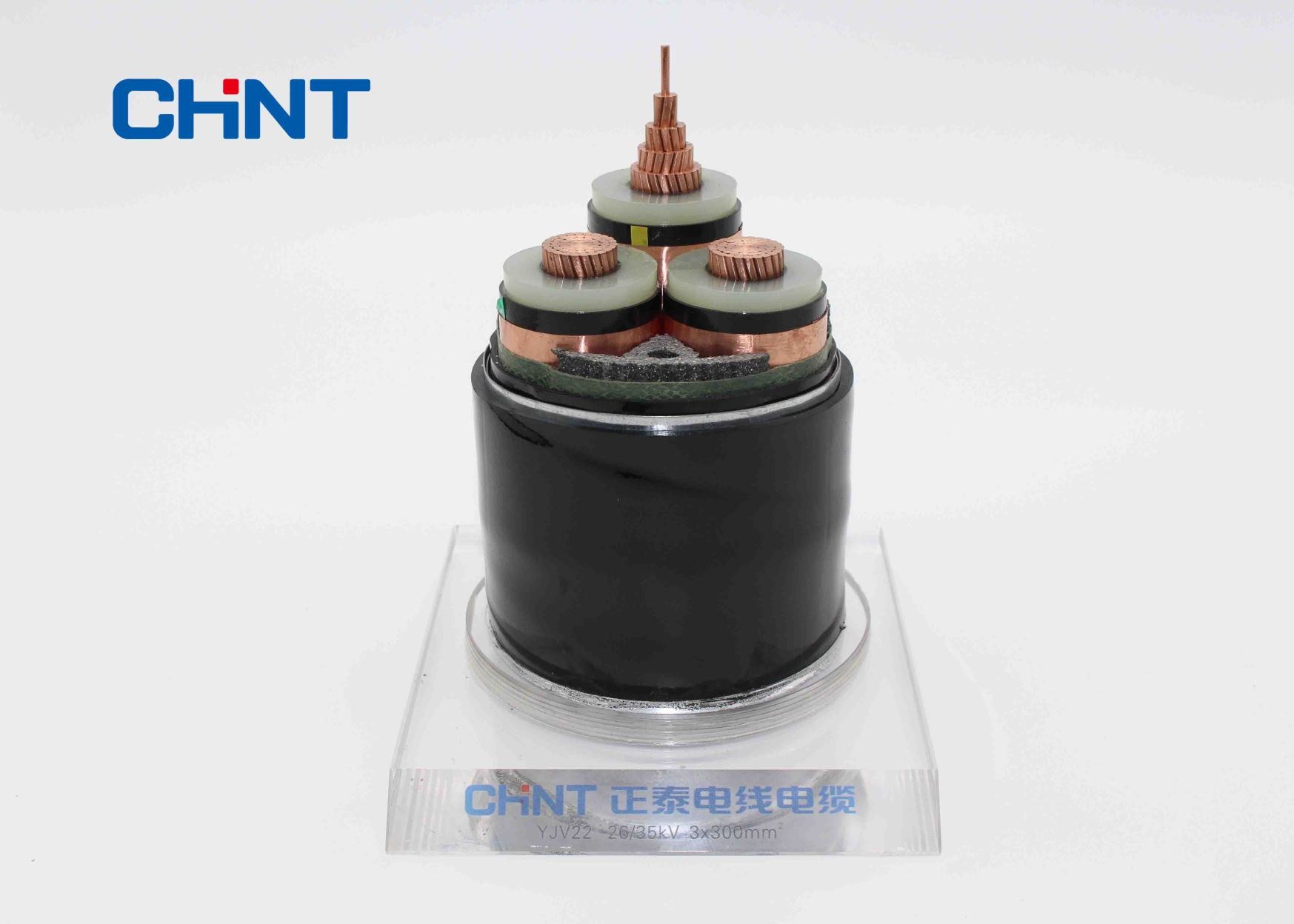

Underground MV power cable with cu/XLPE/CTS/LSOH/STA/LSOH rated voltage 8.7/15kV 0
