| Place of Origin: | CHINA |
|---|---|
| Brand Name: | CHINT |
| Certification: | CE/SGS/KEMA |
| Model Number: | LSZH(WDZR-YJY23) |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Wooden drum/iorn drum |
| Supply Ability: | 500km/month |
| Insulation: | XLPE | Core: | 1 Or 3 |
|---|---|---|---|
| Color: | Orange Or Black | Port: | Shanghai |
| Rated Voltage: | 6/10KV | Type: | Medium Voltage |
| High Light: | lszh power cables,flame retardant low smoke cables |
||
6/10 or 6.35/11KV power cable with LSZH properties and cross section from 35~630mm2
Detailed Product Description
Note:
Insulation identification as per standards or customer requirement
Applications
Laying in room ,tunnel ,cable trench ,and pipes.
Standards
International: IEC 60502, IEC 60228, IEC 60332, IEC 60754
China: GB∕T 12706.2-2008, GB∕T 19666-2005
Other standards such as BS,VDE and ICEA upon request
What is LSOH Power Cable
Typical structure of LSOH flame-retardant cable: non-metallic cable cladding material is LSOH flame-retardant material with different properties. This structure enables the cable to pass class A tests in IEC 60332-3-22 and related tests in IEC 60754 and IEC 61034.
Benefits of FR Cable
When a fire occurs, the combustion of combustibles in the ordinary power system will produce a large amount of halogen-containing smoke. The LSOH power cable and the LSOH building materials used together can effectively reduce the total amount of smoke released by combustible combustion and the content of halogen, so as to reduce the casualty rate in the fire.
The cable has better axial tension resistance.
Constructions
Conductor : Compact stranded copper conductor, Cl.2 as per IEC 60228
Conductor Screen: Semi-conductor
Insulation : XLPE(cross-linked polyethylene) rated at 90 ℃
Insulation Screen: Semi-conductor
Screen : Copper tape
Interlining: LSOH Flame Retardant Polyolefin, black
Armouring: SWA(Steel Wire Armouring)
Sheath : LSOH Flame Retardant Polyolefin, black
Technical data
Rated voltage: 6/10 kV
Maximum Conductor Temperature: under normal (90 ℃), emergency (130℃) or short circuit no more than 5 s (250℃) conditions.
Min. Ambient Temp.: The cable shall be pre heated if the ambient temperature is below 0℃
Min. Bending Radius: single core cable 20(d+D)±5%
Multi-core cable 15(d+D)±5%
Certificates
CE, SGS, KEMA and more others at request
Technical Specifications
| Nom. Cross-section of conductor | Strands No./Dia. Of Conductor | Insulation Thickness |
Thickness of Copper Strip | Diameter of steel wire | Sheath Thickness | Approx. O.D. | Approx. | Max. D.C Resistance of Conductor (20 ℃) | Testing Voltage A.C | Current Rating | |
| Weight | In air (A) | In soil(A) | |||||||||
| 1×25 | 7/2.17+0.01 | 3.4 | 0.12 | 1.60 | 1.8 | 25.9 | 974 | 0.727 | 24 | 165 | 160 |
| 1×35 | 7/2.56+0.01 | 3.4 | 0.12 | 1.60 | 1.8 | 26.9 | 1107 | 0.524 | 24 | 205 | 190 |
| 1×50 | 19/1.86+0.01 | 3.4 | 0.12 | 1.60 | 1.8 | 28.2 | 1279 | 0.387 | 24 | 245 | 225 |
| 1×70 | 14/2.56+0.01 | 3.4 | 0.12 | 1.60 | 1.9 | 30.1 | 1551 | 0.268 | 24 | 305 | 275 |
| 1×95 | 19/2.56+0.02 | 3.4 | 0.12 | 1.60 | 1.9 | 31.7 | 1858 | 0.193 | 24 | 370 | 330 |
| 1×120 | 24/2.56+0.02 | 3.4 | 0.12 | 2.00 | 2.0 | 34.2 | 2232 | 0.153 | 24 | 430 | 375 |
| 1×150 | 30/2.56+0.01 | 3.4 | 0.12 | 2.00 | 2.1 | 35.8 | 2557 | 0.124 | 24 | 490 | 425 |
| 1×185 | 37/2.56+0.02 | 3.4 | 0.12 | 2.00 | 2.1 | 37.6 | 2991 | 0.0991 | 24 | 560 | 480 |
| 1×240 | 48/2.58+0.02 | 3.4 | 0.12 | 2.00 | 2.2 | 40.0 | 3627 | 0.0754 | 24 | 665 | 555 |
| 1×300 | 60/2.58+0.02 | 3.4 | 0.12 | 2.00 | 2.3 | 42.4 | 4296 | 0.0601 | 24 | 765 | 630 |
| 1×400 | 60/2.93+0.02 | 3.4 | 0.12 | 2.50 | 2.4 | 47.1 | 5458 | 0.047 | 24 | 890 | 725 |
| 1×500 | 60/3.33+0.02 | 3.4 | 0.12 | 2.50 | 2.5 | 50.5 | 8206 | 0.0366 | 24 | 1030 | 825 |
| 1×630 | 60/3.76+0.02 | 3.4 | 0.12 | 2.50 | 2.6 | 54.3 | 9783 | 0.0283 | 24 | 1200 | 950 |
| 3×25 | 7/2.17+0.01 | 3.4 | 0.10 | 2.50 | 2.5 | 48.7 | 4365 | 0.727 | 24 | 120 | 125 |
| 3×35 | 7/2.56+0.01 | 3.4 | 0.10 | 2.50 | 2.6 | 51.1 | 4907 | 0.524 | 24 | 140 | 155 |
| 3×50 | 19/1.86+0.01 | 3.4 | 0.10 | 2.50 | 2.7 | 54.9 | 5650 | 0.387 | 24 | 165 | 180 |
| 3×70 | 14/2.56+0.01 | 3.4 | 0.10 | 2.50 | 2.8 | 58.9 | 6660 | 0.268 | 24 | 210 | 220 |
| 3×95 | 19/2.56+0.02 | 3.4 | 0.10 | 2.50 | 2.9 | 62.6 | 7791 | 0.193 | 24 | 255 | 265 |
| 3×120 | 24/2.56+0.02 | 3.4 | 0.10 | 2.50 | 3.0 | 66.2 | 8887 | 0.153 | 24 | 290 | 300 |
| 3×150 | 30/2.56+0.01 | 3.4 | 0.10 | 2.50 | 3.1 | 69.4 | 10029 | 0.124 | 24 | 330 | 340 |
| 3×185 | 37/2.56+0.02 | 3.4 | 0.10 | 2.50 | 3.2 | 73.7 | 11617 | 0.0991 | 24 | 375 | 380 |
| 3×240 | 48/2.58+0.02 | 3.4 | 0.10 | 3.15 | 3.4 | 80.4 | 14743 | 0.0754 | 24 | 435 | 435 |
| 3×300 | 60/2.58+0.02 | 3.4 | 0.10 | 3.15 | 3.6 | 85.7 | 17104 | 0.0601 | 24 | 493 | 485 |
| 3×400 | 60/2.93+0.02 | 3.4 | 0.10 | 3.15 | 3.8 | 92.5 | 20551 | 0.047 | 24 | 565 | 520 |

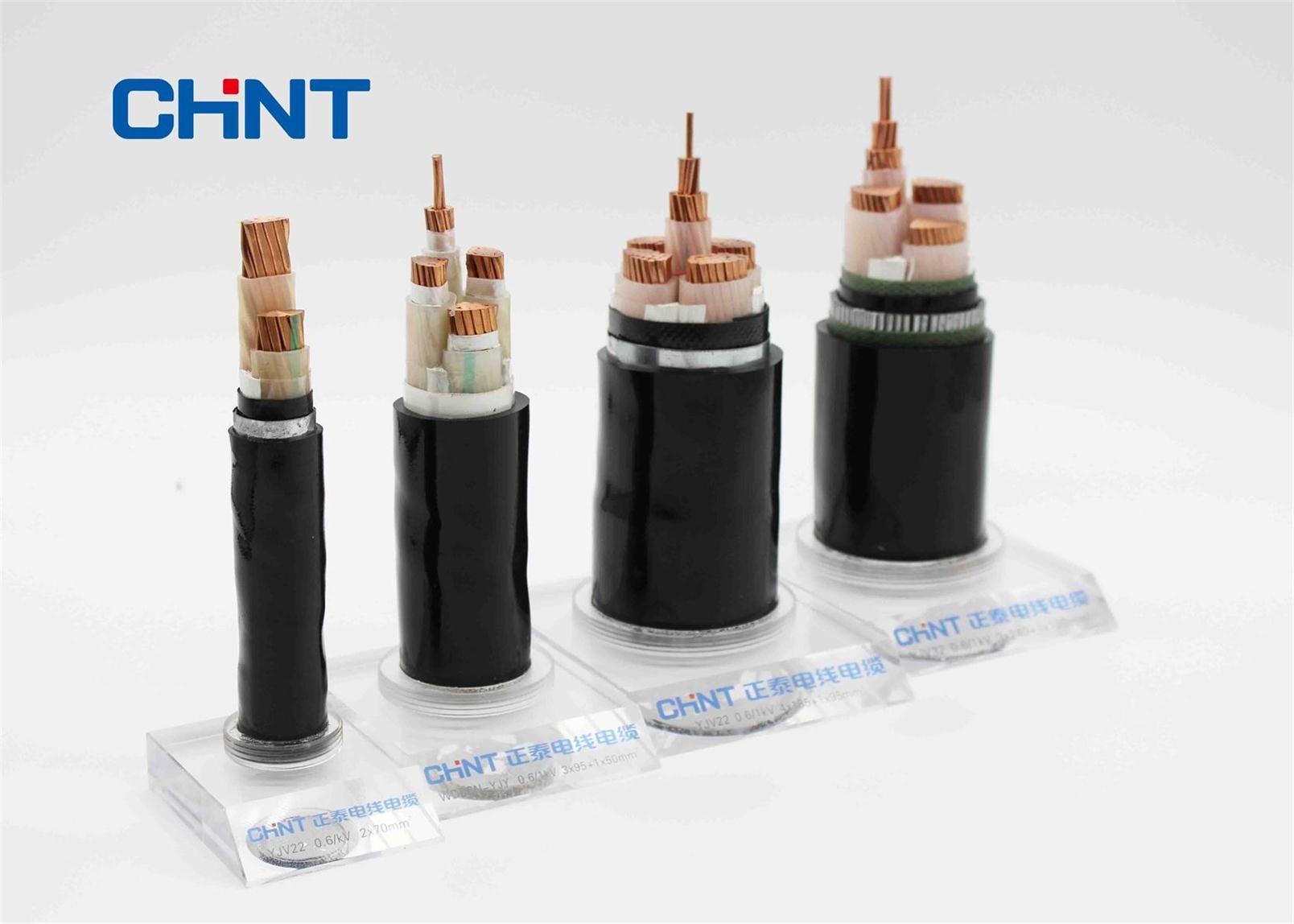

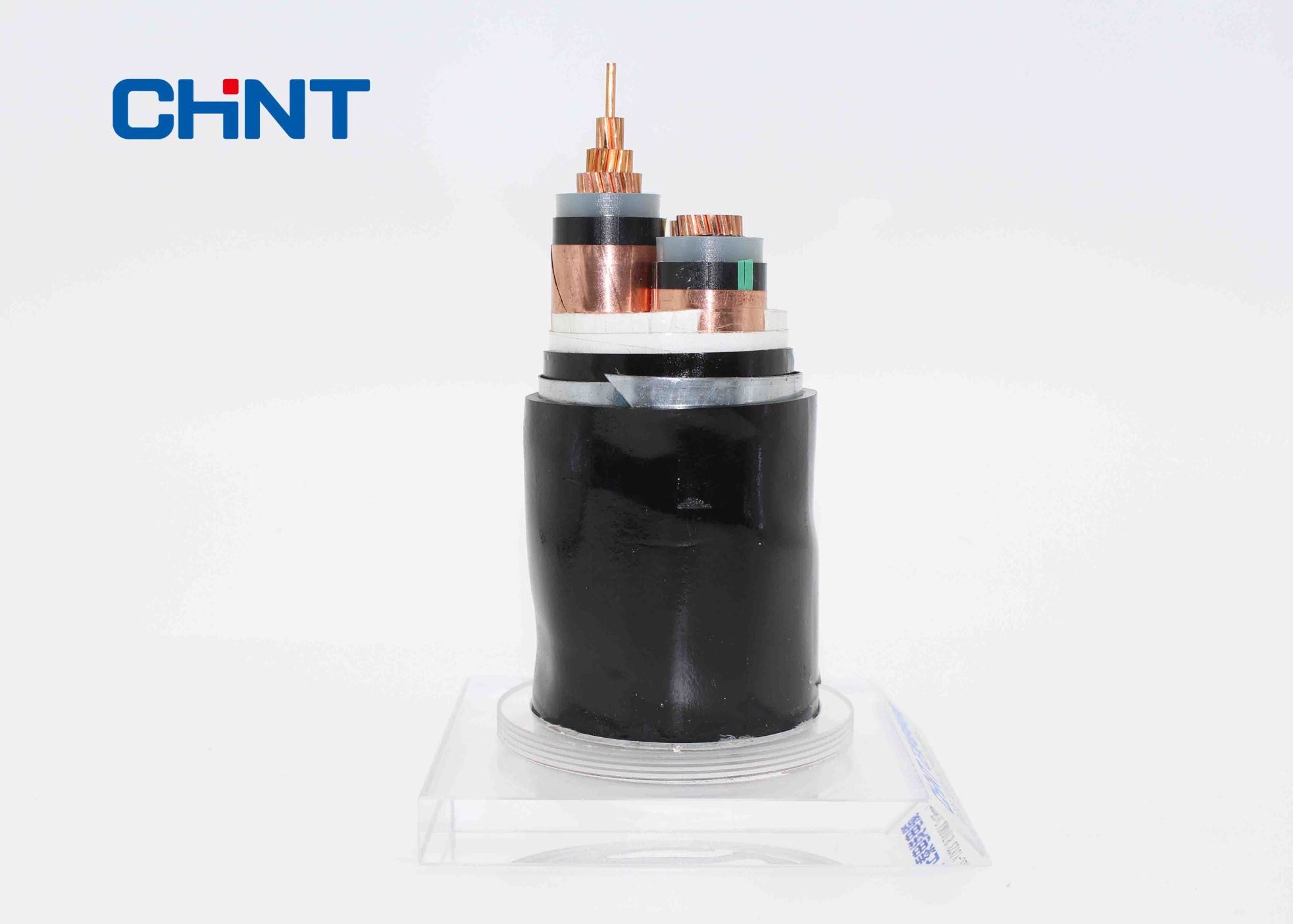

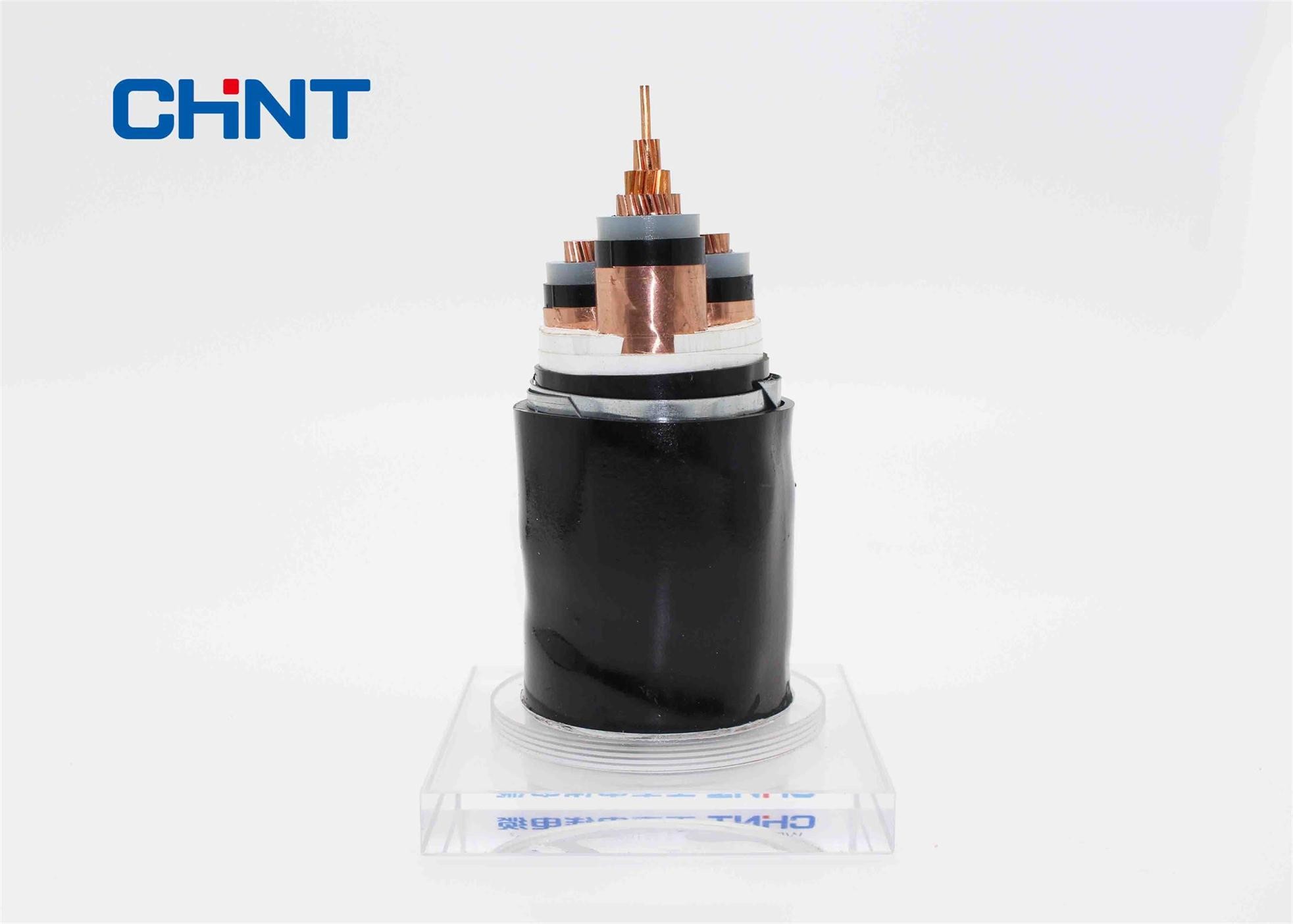

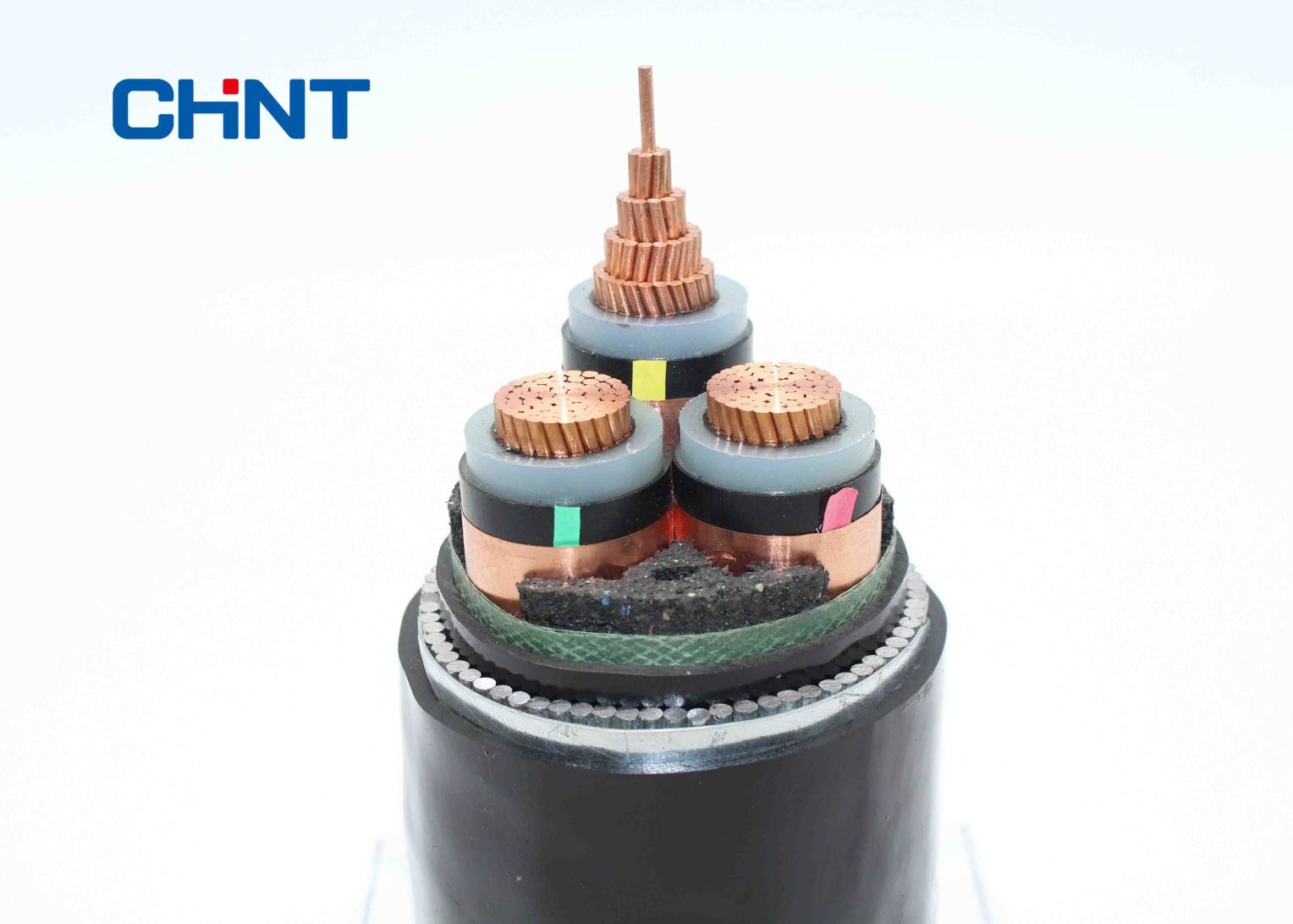

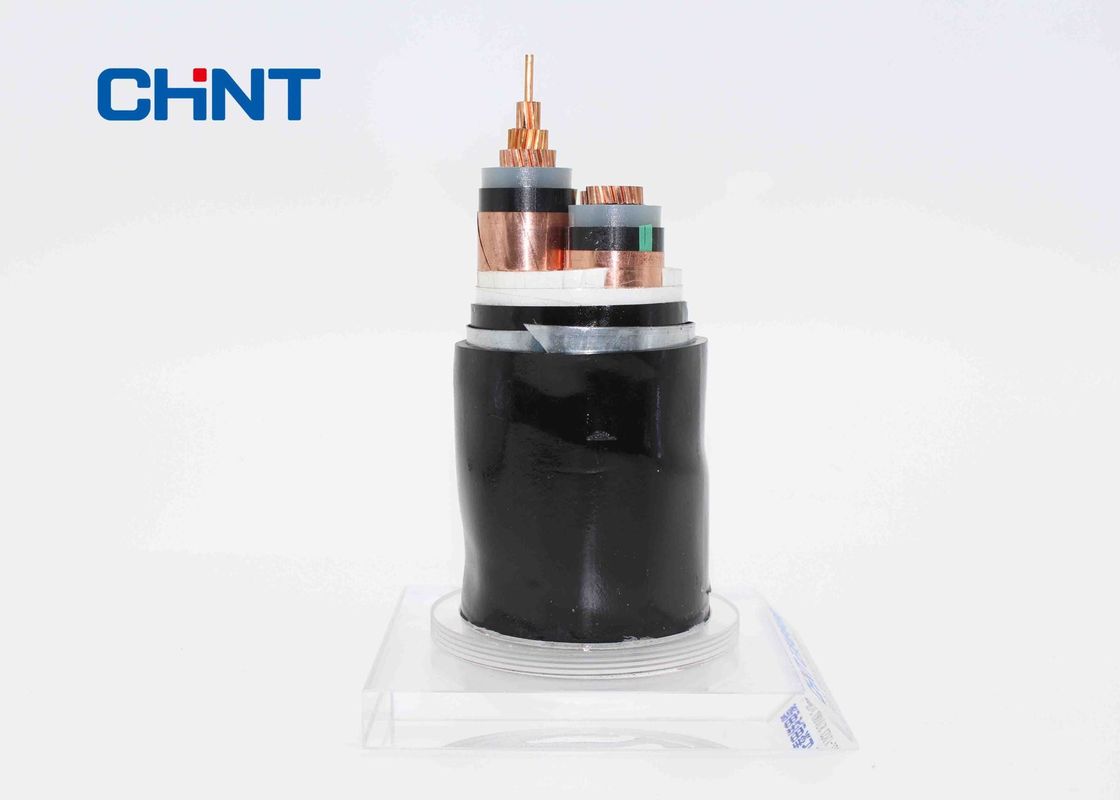

Product photo
