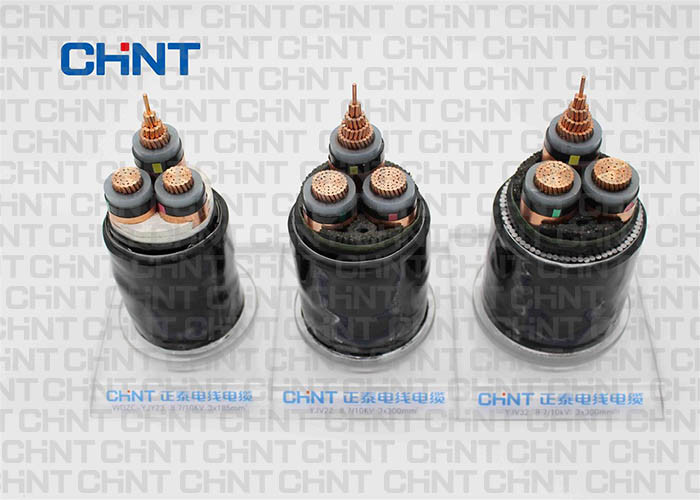

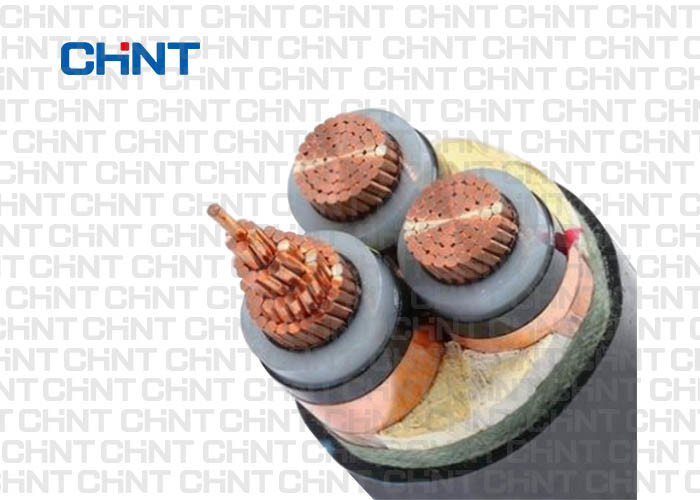

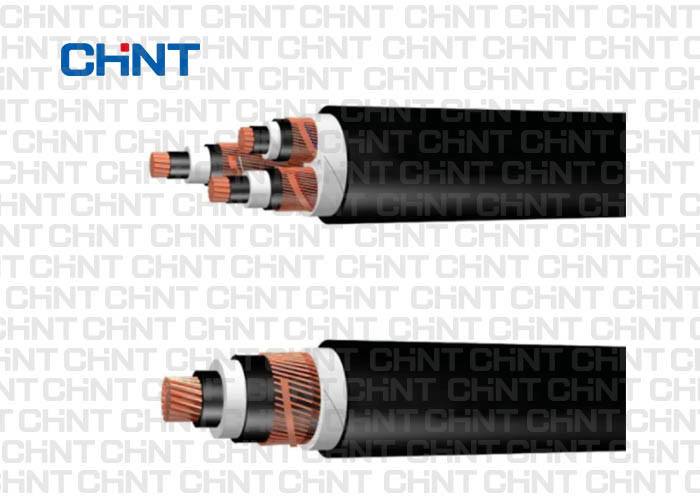

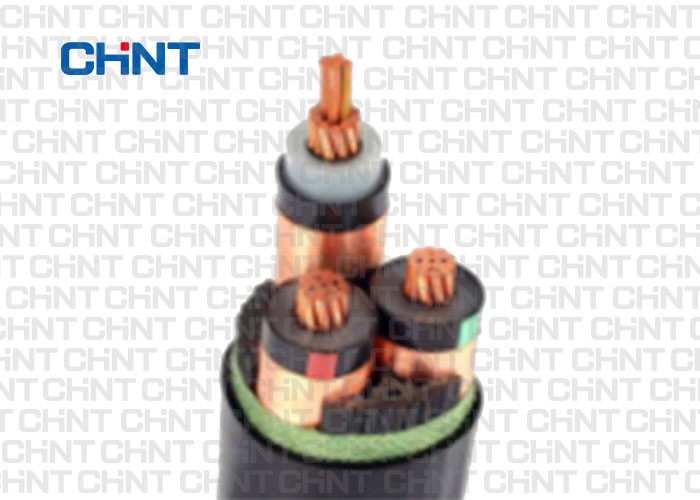

35-630mm2 Low Smoke Zero Halogen Power Cable Single / Three Core Copper Tape Screen

Basic Information
Place of Origin: CHINA
Brand Name: CHINT
Certification: CE/SGS/KEMA
Model Number: LSZH(WDZR-YJY)
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden drum/iorn drum
Supply Ability: 500km/month
Standard: IEC60502.2 IEC60332-3 Or IEC60754 Certificate: ISO9001/ISO14001 /OHSAS18001/CCC
Filler: PP Or FR-PP Port: Shanghai
Core: 1 Or 3 Sheath: LSOH Material
High Light:

lszh power cables

,

flame retardant low smoke cables

35~630mm2 single or three core power cable with LSOH properties

Detailed Product Description



Standards

  • IEC 60502-2 Power cables with extruded insulation and their accessories for rated voltages of 1 kV and 3 kV.
  • IEC 60754 Test on gases evolved during combustion of materials from cables.
  • IEC 61034 Measurement of smoke density of cables burning under defined conditions.
  • BS 7870-3 LV and MV polymeric insulated cables for use by distribution and generation utilities.
  • DIN VDE0276-603 Power cables - Part 603: Distribution cables of rated voltage 0,6/1 kV.
  • ANSI/NEMA WC 70-2009/ICEAS-95-658 Power Cables Rated 2000 Volts or Less for the Distribution of Electrical Energy.
  • AS/NZS 4026:2008 Electric cables - For underground residential distribution systems Standards Australia.
  • AS/NZS 4961:2003 Electric cables - Polymeric insulated - For distribution and service applications.
  • AS/NZS 5000.1:2005 Electric cables - Polymeric insulated - For working voltages up to and including 0.6/1 (1.2) kV.
  • Other Equivalent standards for PVC insulated power cable.

Note:
Insulation identification as per standards or customer requirement

Applications
Laying in room ,tunnel ,cable trench ,and pipes.


What is LSOH Power Cable
Typical structure of LSOH flame-retardant cable: non-metallic cable cladding material is LSOH flame-retardant material with different properties. This structure enables the cable to pass class A tests in IEC 60332-3-22 and related tests in IEC 60754 and IEC 61034.

Benefits of FR Cable
When a fire occurs, the combustion of combustibles in the ordinary power system will produce a large amount of halogen-containing smoke. The LSOH power cable and the LSOH building materials used together can effectively reduce the total amount of smoke released by combustible combustion and the content of halogen, so as to reduce the casualty rate in the fire.

Constructions
Conductor : Compact stranded copper conductor, Cl.2 as per IEC 60228
Conductor Screen: Semi-conductor
Insulation : XLPE(cross-linked polyethylene) rated at 90 ℃
Insulation Screen: Semi-conductor
Screen : Copper tape
Sheath : LSOH Flame Retardant Polyolefin, black

Technical data
Rated voltage: 8.7/10 kV
Maximum Conductor Temperature: under normal (90 ℃), emergency (130℃) or short circuit no more than 5 s (250℃) conditions.
Min. Ambient Temp.: The cable shall be pre heated if the ambient temperature is below 0℃
Min. Bending Radius: single core cable 20(d+D)±5%
Multi-core cable 15(d+D)±5%

Certificates
CE, SGS, KEMA and more others at request

Technical Specifications


Nom. Cross-section of conductor Strands No./Dia. Of Conductor Insulation
Thickness
Thickness of Copper Strip Sheath Thickness Approx. O.D. Approx. Max. D.C Resistance of Conductor (20 ℃) Testing Voltage A.C Current Rating
Weight In air (A) In soil(A)
1×25 7/2.17+0.01 4.5 0.12 1.8 22.9 704 0.727 35 165 160
1×35 7/2.56+0.01 4.5 0.12 1.8 23.9 822 0.524 35 205 190
1×50 19/1.86+0.01 4.5 0.12 1.8 25.2 973 0.387 35 245 225
1×70 14/2.56+0.01 4.5 0.12 1.8 26.9 1209 0.268 35 305 275
1×95 19/2.56+0.02 4.5 0.12 1.8 28.5 1493 0.193 35 370 330
1×120 24/2.56+0.02 4.5 0.12 1.9 30.2 1767 0.153 35 430 375
1×150 30/2.56+0.01 4.5 0.12 1.9 31.6 2054 0.124 35 490 425
1×185 37/2.56+0.02 4.5 0.12 2.0 33.6 2468 0.0991 35 560 480
1×240 48/2.58+0.02 4.5 0.12 2.1 36.0 3067 0.0754 35 665 555
1×300 60/2.58+0.02 4.5 0.12 2.1 38.2 3674 0.0601 35 765 630
1×400 60/2.93+0.02 4.5 0.12 2.2 41.3 4590 0.047 35 890 725
1×500 60/3.33+0.02 4.5 0.12 2.3 44.7 5893 0.0366 35 1030 825
1×630 60/3.76+0.02 4.5 0.12 2.4 48.3 7286 0.0283 35 1200 950
3×25 7/2.17+0.01 4.5 0.10 2.4 45.6 2491 0.727 35 120 125
3×35 7/2.56+0.01 4.5 0.10 2.5 48.1 2905 0.524 35 140 155
3×50 19/1.86+0.01 4.5 0.10 2.6 51.6 3460 0.387 35 165 180
3×70 14/2.56+0.01 4.5 0.10 2.7 55.5 4274 0.268 35 210 220
3×95 19/2.56+0.02 4.5 0.10 2.8 59.1 5232 0.193 35 255 265
3×120 24/2.56+0.02 4.5 0.10 2.9 62.6 6126 0.153 35 290 300
3×150 30/2.56+0.01 4.5 0.10 3.0 65.8 7095 0.124 35 330 340
3×185 37/2.56+0.02 4.5 0.10 3.1 69.9 8434 0.0991 35 375 380
3×240 48/2.58+0.02 4.5 0.10 3.3 75.0 10393 0.0754 35 435 435
3×300 60/2.58+0.02 4.5 0.10 3.5 80.1 12437 0.0601 35 493 485
3×400 60/2.93+0.02 4.5 0.10 3.7 86.8 15424 0.047 35 565 520




Packing: steel wooden drum, other as required

Cable Drum Data

CABLE DRUMS D1=Flange Diameter(mm) W=Useful Width (mm) D2=Barrel Diameter(mm)
1000 700 500
1100 700 550
1200 700 600
1400 750 710
1600 900 900
1800 1120 1000
2400 1150 1300
