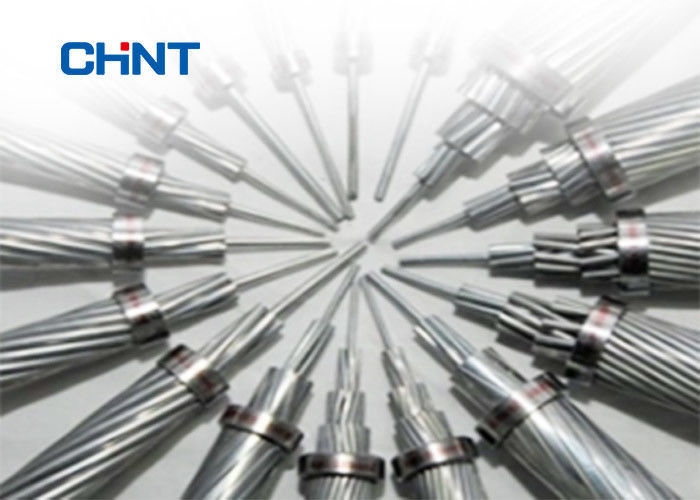

10-1500 mm2 Stranded Conductors , Aluminium Conductor Steel Reinforced

Basic Information
Place of Origin: CHINA
Brand Name: CHINT
Certification: ISO, CCC, CE
Model Number: AAAC ACSR AAC ACAR
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden Reel, Steel Reel
Supply Ability: 500km/month
Size: 10-1500 Mm2 Stranded Type: Concentric Stranded
Model NO.: ACSR 900/40 Certification: ISO, CCC, CE
Range Of Application: Overhead Installation Port: Shanghai
High Light:

bare aluminum conductor

,

overhead line conductor

ACSR, AAC,AAAC,Aluminium Conductors Steel Reinforced (ASTM B 232)



ACSR bare stranded aluminum conductor



Product Performance
(1). The electrical performance of AAC and ACSR is indicated in DCΩ /km(20oC). The resistivity of the hard aluminum wire for stranded wires is not greater than 28.264 nΩ . M of international standard value.
(2). The rated tensile strength of AAC is denoted with the result of total cross-section of all aluminum conductors multiplied by min. Tensile of corresponding size specified in the standard for aluminum wire.
(3). The rated tensile strengh of ACSR is denoted with sum of all aluminum conductorstensile strength and steels tensile strength.
A. The tensile strength of all aluminum conductors is denoted with the result of all cross-sections of aluminum conductors multiplied by min. Tensile strength of corresponding size specified in the standard for aluminum wire.
B. The tensile strength of all steel wire is denoted with the result of all cross-sections of steel wires multiplied by the stress at 1% elongation of corresponding size specified in the standard for steel wire.



Applications
ACSR have been widely used in power transmission lines with various voltage levels, because they have such good characteristics as simple structure, convenient installation and maintenance, low cost large transmission capacity. And they are also suitable for laying across rivers valleys and the places where special geographical features exist.

Service Performance

(1). The permissible long-time operating temperature for aerial conductor is 70oC.

(2). Under the circumstance that rare climate is occuring and ice coverage rate low in heavy ice area, the biggest stress of cable at the lowest point of the sag should not exceed 60% of the short-time destructive power.
(3). When connecting conductors, the conductor beside the connecting tube cant be prominent. Otherwise, the force on the operating conductors will be unbalanced. After connectors are install, the connecting tube should be painted by moisture-proof varnish in order to protect it from corrosion.
(4). Under installaion, the arc downing stress of all the conductors should be the same. With in the permissible distance of crossing buildings or dropping to the ground, the stress can be 10-15% higher than regular stress.

Referred Standards
BoanCable is able to manufacture ACSR according to different stands, as below:
(1). ASTM B 232/B 232M:Concentric-Lay-Stranded Aluminum Conductors, Coated-Steel Reinforced (ACSR)
(2). AS 3607:Conductors-Bare overhead, aluminium and aluminium alloy-Steel reinforced
(3). IEC 61089:Round wire concentric lay overhead electrical conductors
(4). DIN 48.204:Steel reinforced aluminium stranded conductor
(5). BS 215-2:Aluminium conductors and aluminium conductors, steel-reinforced-For overhead power transmission-Part 2:Aluminium conductors, steel-reinforced
(6). BS EN 50182:Conductors for overhead lines-Round wire concentric lay stranded conductors
(7). Production can be arranged according to customers requirements' for material standard, etc.



ASTM-B 232/B 232M METRIC UNITS
Code Name Size Stranding Section Overall
Diameter
Conductor
Weight
Rated
Strength
No x Ømm mm2 mm kg/km
AWG-MCM Al. Steel Total Al. Total Core Total Al. kN
TURKEY 6 6X1,68 1x1,68 15,52 13,3 5,04 1,68 53,8 36,5 5,295
SWAN 4 6X2,12 1X2,12 24,71 21,18 6,36 2,12 85,4 58 8,28
SWANATE 4 7X1,96 1x2,61 26,47 21,12 6,53 2,61 99,7 58 10,5
SPARROW 2 6X2,67 1X2,67 39,2 33,6 8,01 2,67 135,9 92,3 12,68
SPARATE 2 7X2,47 1X3,30 42,09 33,54 5,24 3,3 158,8 92,3 6,2
ROBIN 1 6X3,00 1X3,00 49,48 42,41 9 3 171,4 116,4 15,8
RAVEN 1/0 6X3,37 1X3,37 62,44 53,52 10,11 3,37 216,1 146,7 19,49
QUAIL 2/0 6X3,78 1X3,78 78,55 67,33 11,34 3,78 272,5 185 23,63
PIGEON 3/0 6X4,25 1x4,25 99,31 85,12 12,75 4,25 343,5 233,2 29,46
PENGUIN 4/0 6X4,77 1X4,77 125,09 107,22 14,31 4,77 433,2 294,2 37,16
WAXWING 266,8 18X3,09 1X3,09 142,5 135 15,45 3,09 431,6 372,9 30,62
PARTRIDGE 266,8 26X2,57 7X2,00 156,9 134,9 16,28 6 546,1 374,3 50,28
ORSTRICH 300 26X2,73 7X2,12 176,9 152,2 17,28 6,36 614,6 421,3 56,52
MERLIN 336,4 18X3,47 1X3,47 179,7 170,2 17,35 3,47 543,2 469,7 38,36
LINNET 336,4 26X2,89 7X2,25 198,4 170,6 18,31 6,75 689 472,2 62,75
ORIOLE 336,4 30X2,69 7X2,69 210,3 170,5 18,83 8,07 784,3 473,2 76,98
CHICKADEE 397,5 18X3,77 1X3,77 212,1 200,9 18,85 3,77 642,9 555,5 44,23
BRANT 397,5 24X3,27 7X2,18 227,7 201,6 19,62 6,54 762 558,1 64,97
IBIS 397,5 26X3,14 7X2,44 234 201,3 19,88 7,32 814,0 558,2 72,53
LARK 397,5 30X2,92 7X2,92 247,8 200,9 20,44 8,76 927,1 555,1 90,3
PALICAN 477 18X4,14 1X4,14 255,8 242,3 20,7 4,14 770,9 666,4 52,51
FLICKER 477 26X3,58 7X2,39 273 241,6 21,19 7,17 915,2 670,1 76,54
HAWK 477 26X3,44 7X2,67 280,8 241,6 21,77 8,01 977,7 669,7 86,77
HEN 477 30X3,20 7X3,20 297,6 241,3 22,4 9,6 1.111,7 671 105,91
OSPREY 556,5 18X4,47 1X4,47 298,2 282,5 22,35 4,47 898,9 777 60,96
PARAKEET 556,5 24X3,87 7X2,58 318,9 282,3 23,22 7,74 1.067,0 781,6 88,11
DOVE 556,5 26X3,72 7X2,89 328,5 282,6 23,55 6,67 1.140,0 781,3 105,57
EAGLE 556,5 27X3,30 7X3,46 347,9 282,1 24,27 1,38 1.297,7 983,2 123,71
PEACOCK 605 24X4,03 7X2,65 345,9 306,1 24,19 8,07 1.160,8 849,8 96,12
SQUAB 605 26X3,87 7X3,01 355,6 305,8 24,51 9,03 1.239,7 849,8 108,13
WOODDUCK 605 30X3,61 7X3,61 378,8 307,1 25,27 10,83 1.410,8 851,2 128,6
TEAL 605 30X3,61 19X2,16 376,1 307,1 25,24 10,8 1.398,9 851,5 135,5
KINGBIRD 636 18X4,78 1x4,78 340,9 323 23,9 4,78 1.026,9 887,4 69,86
ROOK 636 24x4,14 7x2,76 365 323,1 24,84 8,28 1.281,8 892,9 97,9
GROSBEAK 636 26x3,97 7x3,09 321,8 251,5 9270 1.302,2 892,6 483 1.302,2
SCOTER 636 30x3,70 7x3,70 397,9 322,6 25,9 11,1 1.477,8 891,4 135,27
EGRET 636 30x3,70 19x2,22 396,1 322,6 25,9 11,1 1.470,3 895 140,17
SWIFT 636 36x3,38 1x3,38 332 323 23,66 3,58 958,4 888,4 61,41
FLAMINGO 666,6 24x4,23 7x2,82 381 337,3 25,38 8,46 1.276,9 935,2 105,46
GANNET 666,6 26x4,07 7x3,16 393,2 338,3 25,76 9,48 1.364,7 936,1 117,48
STILT 715,5 24X4,39 7X2,92 410,2 363,3 26,32 8,76 1.372,1 1.004,5 113,47
STARLING 715,5 26X4,21 7X3,28 421 361,9 26,68 9,84 1.465,9 1.004,5 126,37
REDWING 715,5 30X3,92 19X2,35 444,5 362,1 27,43 11,75 1.653,4 1.007,1 153,96
CUCKOO 795 24X4,62 7X3,08 454,5 402,3 27,72 9,24 1.522,4 1.115,2 124,15
DRAKE 795 26X4,44 7X3,45 468 402,6 28,11 10,35 1.628,1 1.115,8 140,17
COOT 795 36X3,77 1X3,77 413,1 401,9 26,39 3,77 1.198,0 1.110,2 74,76
TERN 795 45X3,38 7X2,25 431,6 403,8 27,03 6,75 1.333,4 1.116,1 98,34
CONDOR 795 54X3,08 7X3,08 454,5 402,3 27,72 9,24 1.513,9 1.116,1 125,48
MALLARD 795 30X4,14 19X2,48 495,6 403,8 28,96 12,4 1.837,9 1.118,7 170,87
RUDDY 900 45X3,59 7X2,40 487,2 455,5 28,74 7,2 1.510,5 1.263,5 108,58
CANARY 900 54X3,28 7X3,28 515,4 456,3 29,52 9,84 1.724,8 1.263,5 141,95
CATBIRD 954 36X4,14 1x4,14 498,1 484,6 28,98 4,14 1.437,6 1.333,4 88,11
RAIL 954 45X3,70 7X2,47 517,3 483,8 29,61 7,41 1.599,8 1.339,4 115,25
CARDINAL 954 54X3,38 7X3,38 547,3 484,5 30,42 10,14 1.829,0 1.339,8 150,4
TANAGER 1.033,5 36X4,30 1X4,30 537,3 522,8 30,1 4,3 1.556,6 1.433,5 95,23
ORTOLAN 1.033,5 45X3,85 7X2,57 560,2 523,9 30,81 7,71 1.733,7 1.451,0 123,26
CURLEVV 1.033,5 54X3,52 7X3,52 593,6 525,5 31,68 10,56 1.980,8 1.451,0 162,86
BLUEJAY 1.113,0 45X4,0 7X2,66 604,4 565,5 31,98 7,98 1.867,7 1.562,6 132,6
FINCH 1.113,0 54X3,65 19X2,19 636,6 565 32,85 10,95 2.129,6 1.570,0 174
BUNTING 1.192,5 45X4,14 7X2,76 647,7 605,8 33,12 8,28 2.000,1 1.674,2 142,4
GRACKLE 1.192,5 54X3,77 19X2,27 679,7 602,8 33,97 11,35 2.281,4 1.681,7 186,45
SKYLARK 1.272,0 36X4,78 1X4,78 664 646 33,46 4,78 1.916,8 1.776,9 117,48
BITTERN 1.272,0 45X4,27 7X2,85 489,1 644,4 34,17 8,55 2.134,1 1.785,8 151,74
PHEASANT 1.272,0 54X3,90 19X2,34 726,8 645,1 35,1 11,7 2.423,5 1.783,8 199,96
DIPPERF 1.351,5 45X4,40 7X2,93 731,4 684,2 35,19 8,79 2.266,5 1.898,5 161,08
MARTIN 1.351,5 54X4,02 19X2,41 772,1 685,4 36,17 12,05 2.585,0 1.906,4 206,03
BOBOLINK 1.431,0 45X4,53 7X3,02 775,4 725,3 36,24 9,06 2.400,4 2.009,1 170,43
PLOVER 1.431,0 54X4,14 19X2,48 818,7 726,9 37,24 12,4 2.738,3 2.019,0 218,48
NUTHATCH 1.510,5 45X4,65 7X3,10 817 764,2 37,2 9,3 2.532,9 2.120,7 178,44
PARROT 1.510,5 54X4,25 19X2,55 863,1 766,1 38,25 12,75 2.890,1 2.131,1 230,05
LAPWING 1.590,0 45X4,78 7X3,18 863,1 807,5 38,22 9,54 2.666,8 2.232,3 187,78
FALCON 1.590,0 54X4,36 19X2,62 908,6 806,2 39,26 13,1 3.041,9 2.242,7 242,51
CHUKAR 1.780,0 84X3,70 19X2,22 976,7 903,2 42,7 11,1 3.086,5 2.510,6 226,94
BLUEBIRD 2.156,0 84X4,07 19X2,44 1.181,6 1.092,8 44,76 12,2 3.737,8 3.040,4 268,32
KIWI 2.167,0 72X4,41 7X2,94 1.147,3 1.099,8 44,1 8,82 3.427,3 3.056,7 221,6
THRASHER 2.312,8 76X4,43 19X2,07 1.235,3 1.711,4 45,79 10,35 3.760,7 3.262,1 252,3
GROUSE 80,0 8x2,54 1x4,24 54,66 40,54 9,32 4,24 221,7 111,8 23140
PETREL 101,8 12x2,34 7x2,34 81,71 51,61 11,70 7,02 378,11 142,9 42280
MINORCA 110,8 12x2,44 7x2,44 88,84 56,11 12,20 7,32 411,6 155,5 50280
LEGHORN 134,6 12x2,69 7x2,69 108,00 68,20 13,45 8,07 500,0 189,0 60520
GUINEA 159,0 12x2,92 7x2,92 127,23 80,36 14,60 8,76 590,5 223,2 68080
DOTTEREL 176,9 12x3,08 7x3,08 141,56 89,41 15,40 9,24 656,9 248,4 76980
DORKING 190,8 12x3,20 12x3,20 152,81 96,51 16,00 9,60 708,8 267,9 83210
BRAHMA 203,2 16x2,86 19x2,48 194,57 102,79 18,12 12,40 1.007,2 285,3 126370
COCHIN 211,3 12x3,37 7x3,37 169,47 107,04 16,85 10,11 785 296,6 92110


Ordering Advice

Rated Voltage

Application Standard: IEC/BS/UL/GB

Number of Cores

Conductor Size & Construction

Type of Insulation

Armored or unarmored. If armor, the armor type & material

The Requirement of Sheath

Length of Cable & Packing Requirement

Other Requirement





PACKING AND SHIPPING

All cable for exporting are well packed and protected by wooden drum or Wood and Steel Drum.

The packing material is depended on the weight and size of cable.

The good information, manufacture information, and the client's information is firmly printed on each size of drum.



After the well packed cable drums sent to Sea Port, they are loaded into 20 FT container or 40 FT container. All cable drum are firmly fixed by safety belt to make sure, no movement during the sea freight.

The size of the container is chosen according to weight of total loaded goods or as per the client's requirement.
